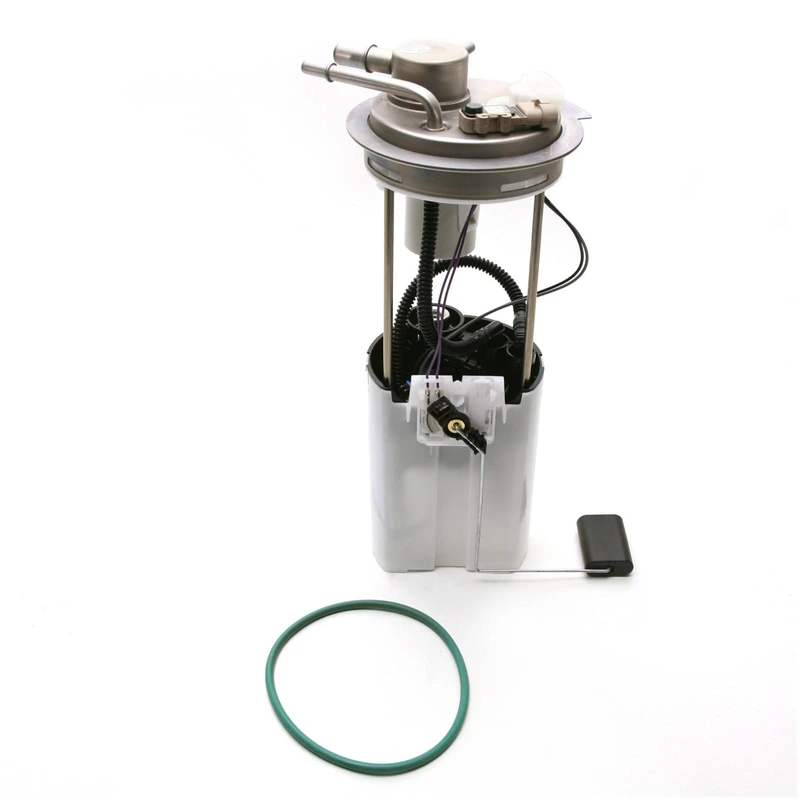

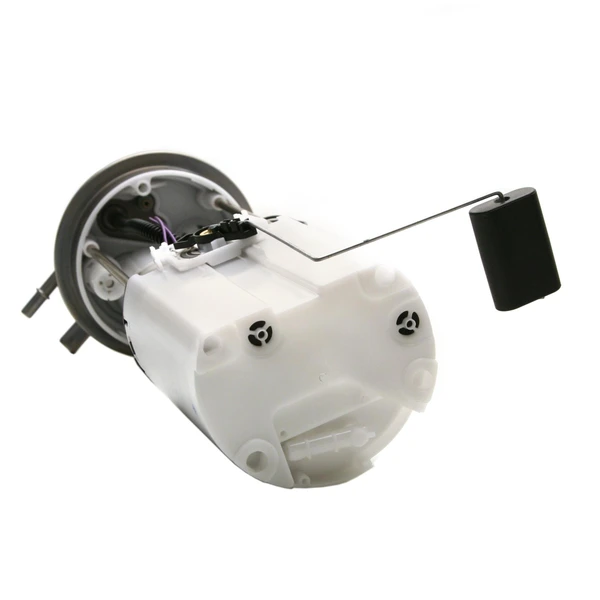

Fuel Pump Module Assembly - Delphi FG0494
Part # FG0494
Item # 1001VGD0
$311.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 8
- Average Flow Rating (gph)
- 29
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- Yes
- Fuel Type
- Flex
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 80
- Minimum Pressure (PSI)
- 59
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 3
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- Yes
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 250
- Resistance Ohms Full (Ohms)
- 40
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 3
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally renowned OEM manufacturer with a storied history of professional expertise, applies meticulous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps feature the latest OEM technological innovations, guaranteeing exceptional pumping capability, superior pressure performance, and lower electrical power usage, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Focused on quality service, A-Premium ensures that every Delphi fuel pump purchase includes the benefits of free shipping and a 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Comprehensive Late-Model Coverage: Delphi fuel pumps ensure a wide range of coverage in modern vehicle applications.
● Replacement Tips: Ensure the fuel tank is clean to avoid complications after pump installation.
Delphi, a globally renowned OEM manufacturer with a storied history of professional expertise, applies meticulous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps feature the latest OEM technological innovations, guaranteeing exceptional pumping capability, superior pressure performance, and lower electrical power usage, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Focused on quality service, A-Premium ensures that every Delphi fuel pump purchase includes the benefits of free shipping and a 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Comprehensive Late-Model Coverage: Delphi fuel pumps ensure a wide range of coverage in modern vehicle applications.
● Replacement Tips: Ensure the fuel tank is clean to avoid complications after pump installation.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A30459 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
19167375 - GENERAL MOTORS, GMC, CHEVROLET
A30153 - PRECISION FUEL PUMPS, PRECISION FUEL
E3767M - CARQUEST, AIRTEX
A44006 - IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
A30082 - PRECISION FUEL PUMPS, PRECISION FUEL
19331950 - GENERAL MOTORS
19133480 - GENERAL MOTORS
19167376 - GENERAL MOTORS
67536 - BOSCH
19331975 - GENERAL MOTORS
SP6494M - SPECTRA PREMIUM
19152900 - GENERAL MOTORS
M10096 - ACDELCO
FG0494 - DELPHI
P76232M - CARTER
66083 - BOSCH
P76799M - CARTER
19303390 - GENERAL MOTORS
DFG0494 - AUTOZONE
MU1607 - ACDELCO
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (13)vehicles
All
Chevrolet
GMC
| 2006 - 2006 | Chevrolet | Silverado 1500 |
| 2006 - 2006 | Chevrolet | Silverado 1500 |
| 2006 - 2006 | Chevrolet | Silverado 1500 |
| 2007 - 2007 | Chevrolet | Silverado 1500 Classic |
| 2007 - 2007 | Chevrolet | Silverado 1500 Classic |
| 2007 - 2007 | Chevrolet | Silverado 1500 Classic |
| 2006 - 2006 | GMC | Sierra 1500 |
| 2006 - 2006 | GMC | Sierra 1500 |
| 2006 - 2006 | GMC | Sierra 1500 |
| 2006 - 2006 | GMC | Sierra 1500 |
| 2007 - 2007 | GMC | Sierra 1500 Classic |
| 2007 - 2007 | GMC | Sierra 1500 Classic |
| 2007 - 2007 | GMC | Sierra 1500 Classic |
