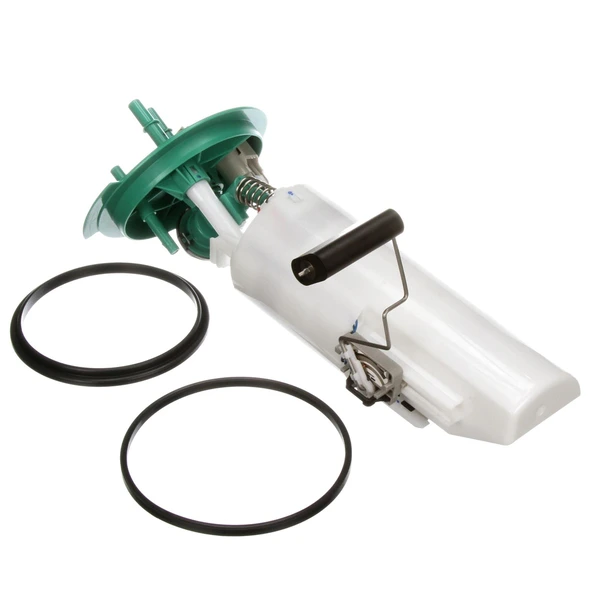

Fuel Pump Module Assembly - Delphi FG0483
Part # FG0483
Item # 1001VK4Q
$158.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 11
- Average Flow Rating (gph)
- 24

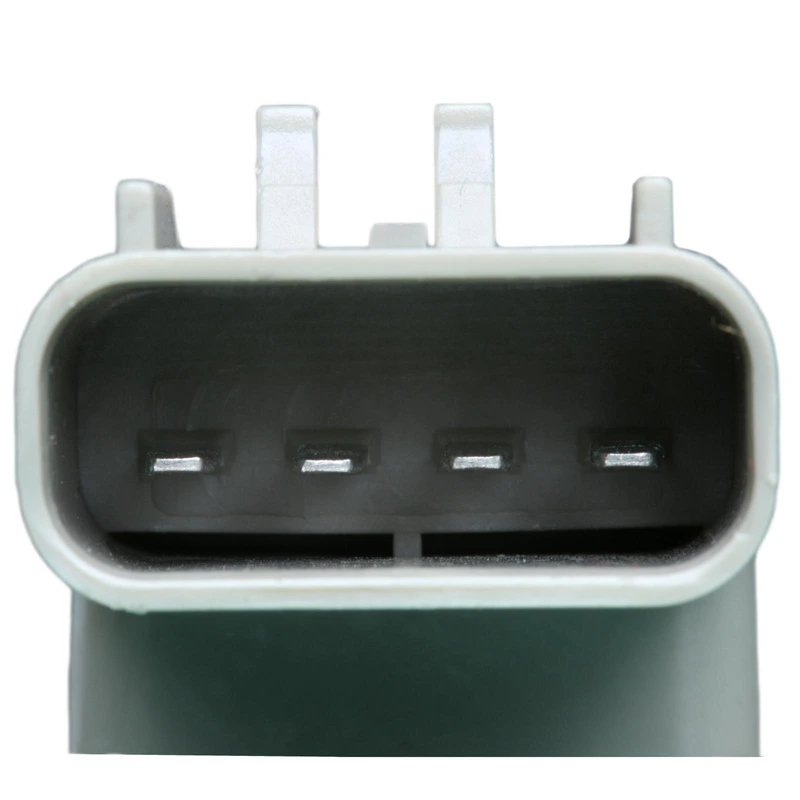

- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 80
- Minimum Pressure (PSI)
- 58
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- G-Rotor
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 1050
- Resistance Ohms Full (Ohms)
- 70
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally renowned OEM manufacturer with a storied history of professional expertise, applies meticulous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps feature the latest OEM technological innovations, guaranteeing exceptional pumping capability, superior pressure performance, and lower electrical power usage, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Purchasing a Delphi fuel pump from A-Premium includes free shipping and a 3-year warranty.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Comprehensive Late-Model Coverage: With a wide range of coverage, Delphi fuel pumps are suitable for various late-model applications.
● Replacement Tips: Replacing the fuel filter is a crucial step when installing a new fuel pump.
Delphi, a globally renowned OEM manufacturer with a storied history of professional expertise, applies meticulous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps feature the latest OEM technological innovations, guaranteeing exceptional pumping capability, superior pressure performance, and lower electrical power usage, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Purchasing a Delphi fuel pump from A-Premium includes free shipping and a 3-year warranty.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Comprehensive Late-Model Coverage: With a wide range of coverage, Delphi fuel pumps are suitable for various late-model applications.
● Replacement Tips: Replacing the fuel filter is a crucial step when installing a new fuel pump.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E7146M - CARQUEST, PUROLATOR, AIRTEX, FACET
A27029 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
5101830AB, 5101 830AB - DODGE, CHRYSLER
5018875AB, 5018 875AB - JEEP, CHRYSLER
9533047, 953-3047 - DENSO, DENSO AUTO PARTS
TU169 - WALBRO, TI AUTOMOTIVE
RL101830AB - DODGE, CHRYSLER
DFG0483 - AUTOZONE, DELPHI
5101830AC, 5101 830AC - CHRYSLER
5101830AA, 5101 830AA - CHRYSLER
P614M - PIERCE
67679 - BOSCH
67688 - BOSCH
5018875AA, 5018 875AA - CHRYSLER
P76032M - CARTER
FG0483 - DELPHI
SP7146M - SPECTRA PREMIUM
AFS1029S - EVO DRIVELINE
M2246716 - CARQUEST
RL101830AC - CHRYSLER
67670 - BOSCH
RE1029S - EVO DRIVELINE
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (10)vehicles
All
Chrysler
Dodge
| 2001 - 2002 | Chrysler | Town & Country |
| 2001 - 2002 | Chrysler | Voyager |
| 2003 - 2003 | Chrysler | Town & Country |
| 2003 - 2003 | Chrysler | Town & Country |
| 2003 - 2003 | Chrysler | Town & Country |
| 2003 - 2003 | Chrysler | Town & Country |
| 2003 - 2003 | Chrysler | Town & Country |
| 2003 - 2003 | Chrysler | Voyager |
| 2001 - 2003 | Dodge | Caravan |
| 2001 - 2003 | Dodge | Grand Caravan |
