Fuel Pump Module Assembly - Delphi FG0425
Part # FG0425
Item # 1001VEUT
$204.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 7
- Average Flow Rating (gph)
- 24

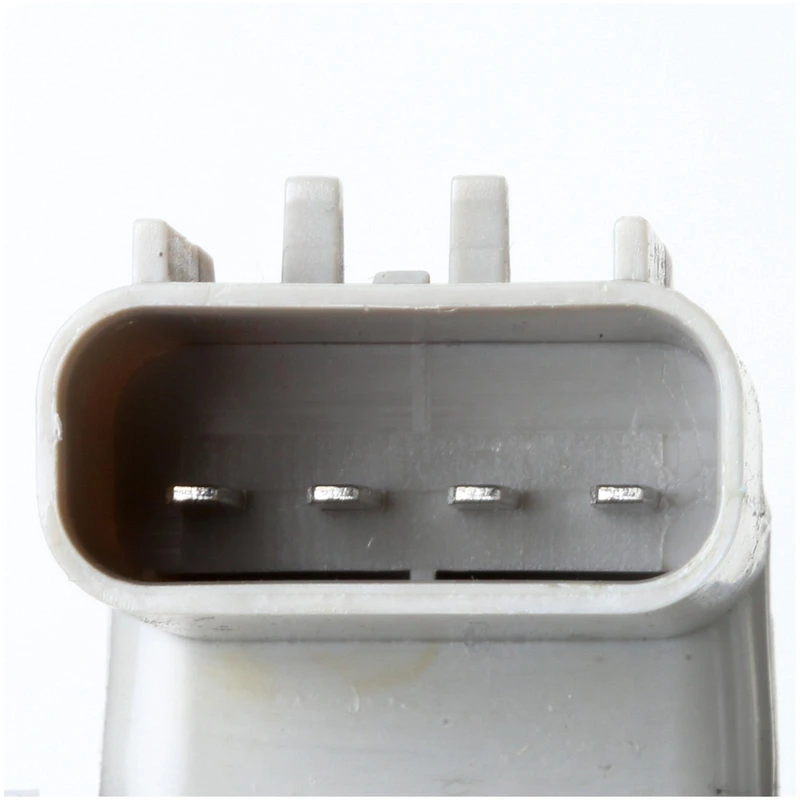

- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 59
- Minimum Pressure (PSI)
- 55
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents

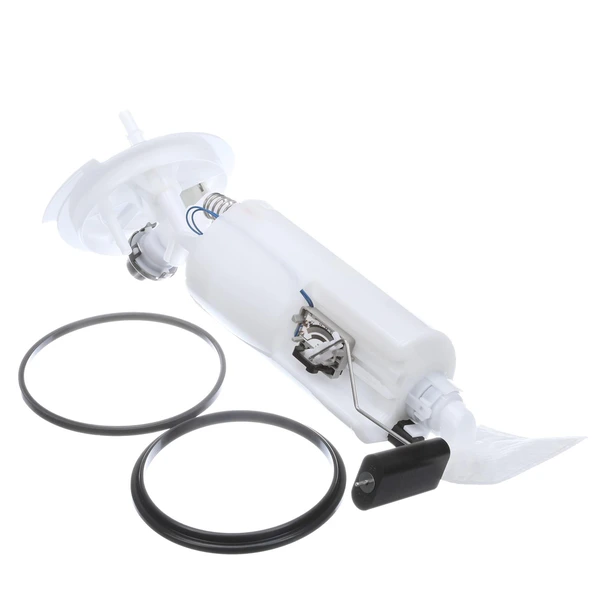

- Fuel Pump Module Assembly with Float Arm, Seals, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- G-Rotor
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 1055
- Resistance Ohms Full (Ohms)
- 70
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
As a globally recognized OEM manufacturer with a century of professional expertise, Delphi adheres to strict OEM standards in the manufacturing of its fuel pumps. Each aftermarket replacement pump incorporates the latest OEM technological advancements, delivering outstanding pumping ability, excellent pressure performance, and reduced electrical power requirements, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A-Premium is dedicated to providing top-notch service, allowing customers to enjoy every Delphi fuel pump with free shipping and a 3-year warranty.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● OE-design Connector: Delphi fuel pumps feature an OE-design connector and body harness, ensuring exceptional performance.
● Comprehensive Late-Model Coverage: Delphi fuel pumps cater to a wide range of late-model vehicles, allowing new car owners to enjoy worry-free operation without breaking the bank.
● Replacement Tips: Always verify the fuel filter's condition when replacing the fuel pump.
As a globally recognized OEM manufacturer with a century of professional expertise, Delphi adheres to strict OEM standards in the manufacturing of its fuel pumps. Each aftermarket replacement pump incorporates the latest OEM technological advancements, delivering outstanding pumping ability, excellent pressure performance, and reduced electrical power requirements, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A-Premium is dedicated to providing top-notch service, allowing customers to enjoy every Delphi fuel pump with free shipping and a 3-year warranty.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● OE-design Connector: Delphi fuel pumps feature an OE-design connector and body harness, ensuring exceptional performance.
● Comprehensive Late-Model Coverage: Delphi fuel pumps cater to a wide range of late-model vehicles, allowing new car owners to enjoy worry-free operation without breaking the bank.
● Replacement Tips: Always verify the fuel filter's condition when replacing the fuel pump.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E7144M - CARQUEST, MASTER PARTS DIVISION, PUROLATOR, AIRTEX, FACET
E7146M - CARQUEST, PUROLATOR, AIRTEX, FACET
9533037, 953-3037 - CARQUEST, DENSO, DENSO AUTO PARTS
A27010 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
5018873AB, 5018 873AB - DODGE, CHRYSLER
5018873AA, 5018 873AA - DODGE, CHRYSLER
RL096149AB - DODGE, CHRYSLER
5096149AB, 5096 149AB - DODGE, CHRYSLER
TU153 - WALBRO, TI AUTOMOTIVE
H75030411 - BEHR, HELLA
DFG0425 - AUTOZONE, DELPHI
4897419AA, 4897 419AA - CHRYSLER
4897416AB, 4897 416AB - CHRYSLER
RE0778S - EVO DRIVELINE
P612M - PIERCE
P643M - PIERCE
P75026M - CARTER
5096149AA, 5096 149AA - CHRYSLER
4798487, 4798 487 - CHRYSLER
P76032M - CARTER
SP7144M - SPECTRA PREMIUM
M2246718 - CARQUEST
FG0425 - DELPHI
67670 - BOSCH
AFS0778S - EVO DRIVELINE
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (15)vehicles
All
Chrysler
Dodge
| 2001 - 2001 | Chrysler | Town & Country |
| 2001 - 2003 | Chrysler | Voyager |
| 2002 - 2002 | Chrysler | Town & Country |
| 2002 - 2002 | Chrysler | Town & Country |
| 2002 - 2002 | Chrysler | Town & Country |
| 2003 - 2003 | Chrysler | Town & Country |
| 2001 - 2002 | Dodge | Caravan |
| 2001 - 2002 | Dodge | Grand Caravan |
| 2003 - 2003 | Dodge | Caravan |
| 2003 - 2003 | Dodge | Caravan |
| 2003 - 2003 | Dodge | Caravan |
| 2003 - 2003 | Dodge | Caravan |
| 2003 - 2003 | Dodge | Grand Caravan |
| 2003 - 2003 | Dodge | Grand Caravan |
| 2003 - 2003 | Dodge | Grand Caravan |
