Delphi

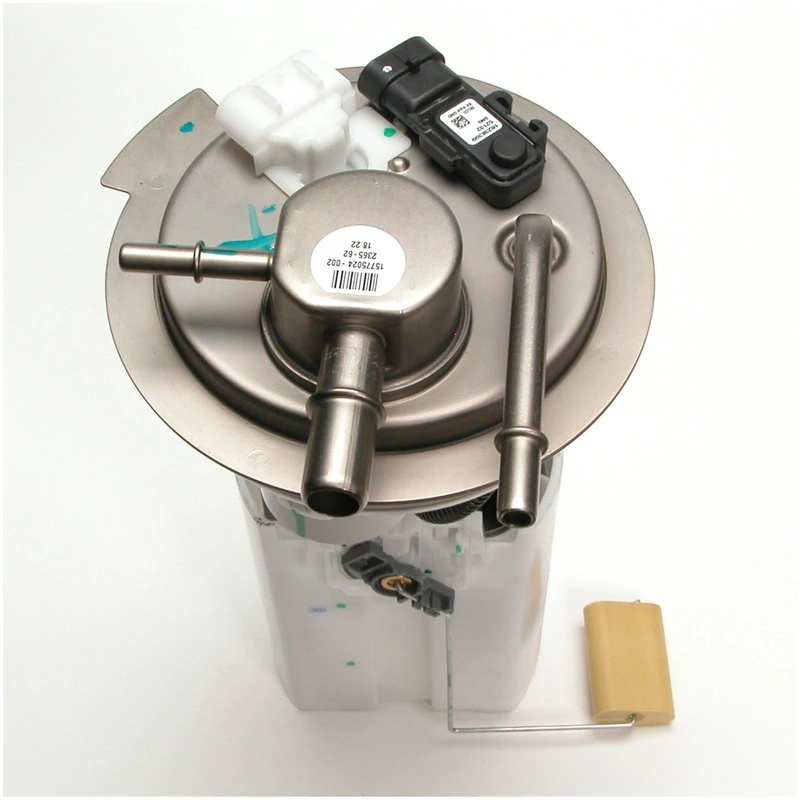

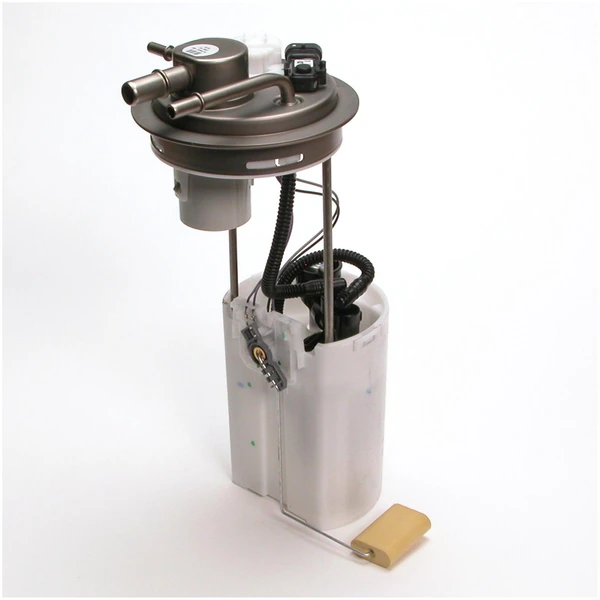

Fuel Pump Module Assembly - Delphi FG0402

Part # FG0402
Item # 1001VG3N
$326.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Sending Unit Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Sending Unit Included
Yes
Average Current Draw (A)
11
Average Flow Rating (gph)
28
Connector Gender
Female
Connector Quantity
1
Connector Shape
Oval
Fuel Filter Included
Yes
Fuel Type
Flex
Gasket Or Seal Included
Yes
Gasket Or Seal Material
Nitrile Rubber
Grade Type
Premium
Housing Material
Plastic
In Tank or External
In Tank
Inlet Type
Strainer
Installation Warnings
No
Internal Or External Strainer
Internal
Lock Ring Included
No
Maximum Pressure (PSI)
73
Minimum Pressure (PSI)
54
Mounting Hardware Included
No
Negative Ground
No
Outlet Outside Diameter (in)
0.375
Outlet Quantity
3
Outlet Type
Quick Connect
Package Contents

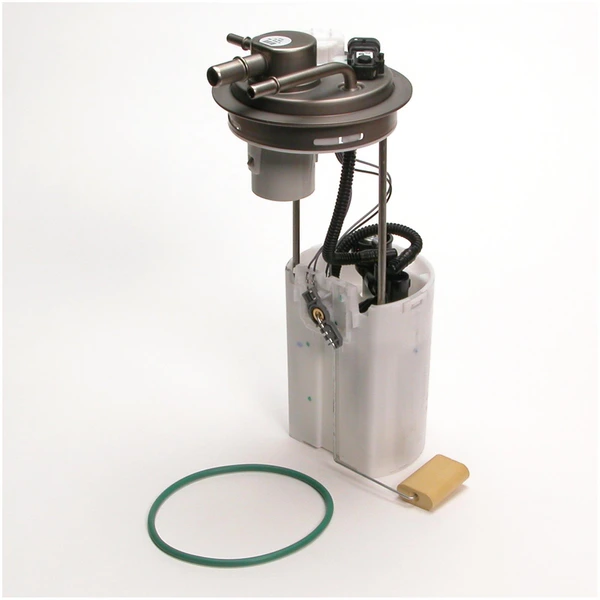

Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
Pressure Sensor included
Yes
Pump Design
Turbine
Pump Type
Electric
Regulator Included
Yes
Resistance Ohms Empty (Ohms)
250
Resistance Ohms Full (Ohms)
40
Strainer Included
Yes
Terminal Gender
Male
Terminal Quantity
4
Terminal Type
Blade
Voltage (2h)
12
Wire Harness Included
No
Show all

Features

About this item
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps integrate the latest OEM technological innovations, ensuring exceptional pumping capability, superior pressure performance, and lower electrical power consumption, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Buying a Delphi fuel pump at A-Premium comes with perks like free shipping and a comprehensive 3-year warranty.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● Large Volume Reservoir: Featuring a large volume reservoir, Delphi fuel pumps enhance performance in low-fuel conditions.
● Comprehensive Late-Model Coverage: With wide coverage, Delphi fuel pumps are ideal for late-model vehicle needs.
● Replacement Tips: Ensure the fuel tank is clean to avoid complications after pump installation.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E3678M - CARQUEST, PUROLATOR, AIRTEX, FACET
A30188 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
19153042 - GENERAL MOTORS, GMC, CHEVROLET
19331946 - GENERAL MOTORS, GMC, CHEVROLET
19303381 - GENERAL MOTORS, CHEVROLET
19303384 - GENERAL MOTORS
MU1332 - ACDELCO
MU1435 - ACDELCO
RE0913S - EVO DRIVELINE
25371045 - GENERAL MOTORS
M10030 - ACDELCO
P76088M - CARTER
DFG0402 - AUTOZONE
1AMFP00130 - MAGNETI MARELLI
19153041 - GENERAL MOTORS
SP3678M - SPECTRA PREMIUM
66076 - BOSCH
P76088B - CARTER
SP61435M - SPECTRA PREMIUM
M3480498 - CARQUEST
19133516 - GENERAL MOTORS
25384425 - GENERAL MOTORS
25384426 - GENERAL MOTORS
FG0402 - DELPHI
25366555 - GENERAL MOTORS
67571 - BOSCH
19331949 - GENERAL MOTORS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (32)vehicles
All
Chevrolet
GMC
2004 - 2004ChevroletExpress 1500
2004 - 2004ChevroletExpress 2500
2004 - 2004ChevroletExpress 2500
2004 - 2005ChevroletExpress 2500
2004 - 2005ChevroletExpress 3500
2004 - 2008ChevroletExpress 2500
2004 - 2008ChevroletExpress 2500
2004 - 2008ChevroletExpress 3500
2005 - 2005ChevroletExpress 2500
2005 - 2007ChevroletExpress 1500
2006 - 2006ChevroletExpress 2500
2006 - 2008ChevroletExpress 3500
2006 - 2008ChevroletExpress 3500
2006 - 2008ChevroletExpress 3500
2006 - 2008ChevroletExpress 3500
2008 - 2008ChevroletExpress 1500
2004 - 2004GMCSavana 1500
2004 - 2005GMCSavana 2500
2004 - 2005GMCSavana 3500
2004 - 2008GMCSavana 2500
