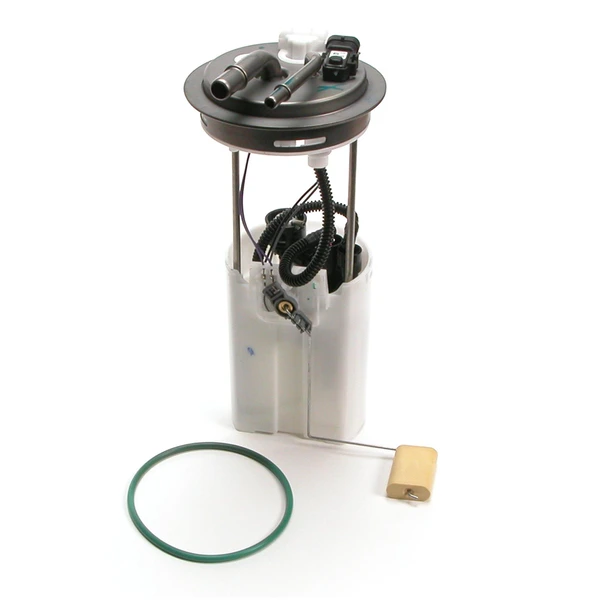

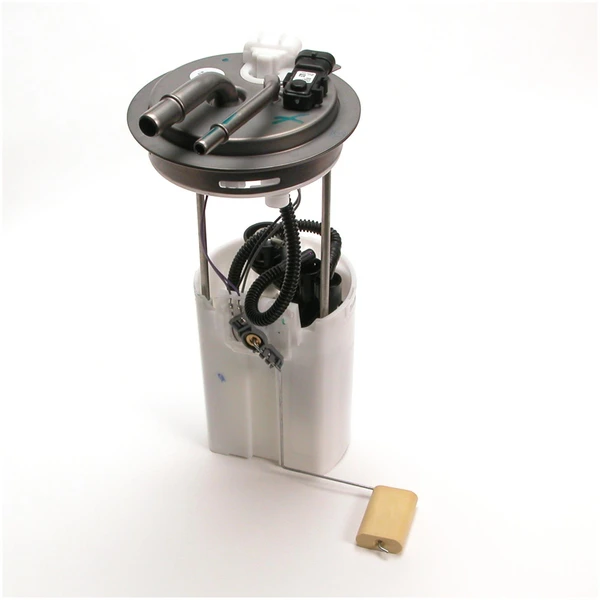

Fuel Pump Module Assembly - Delphi FG0401
Part # FG0401
Item # 1001VE2C
$280.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 11
- Average Flow Rating (gph)
- 28
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- Yes
- Fuel Type
- Flex
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 73
- Minimum Pressure (PSI)
- 54
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- Yes
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 250
- Resistance Ohms Full (Ohms)
- 40
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps integrate the latest OEM technological innovations, ensuring exceptional pumping capability, superior pressure performance, and lower electrical power consumption, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: A-Premium is committed to offering the highest quality service, ensuring that each Delphi fuel pump comes with free shipping and a 3-year warranty.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● OE-design Connector: The OE-design connector and body harness in Delphi fuel pumps provide superior performance capabilities.
● Comprehensive Late-Model Coverage: With a wide range of coverage, Delphi fuel pumps are suitable for various late-model applications.
● Replacement Tips: Always verify the fuel filter condition when installing a new fuel pump.
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps integrate the latest OEM technological innovations, ensuring exceptional pumping capability, superior pressure performance, and lower electrical power consumption, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: A-Premium is committed to offering the highest quality service, ensuring that each Delphi fuel pump comes with free shipping and a 3-year warranty.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● OE-design Connector: The OE-design connector and body harness in Delphi fuel pumps provide superior performance capabilities.
● Comprehensive Late-Model Coverage: With a wide range of coverage, Delphi fuel pumps are suitable for various late-model applications.
● Replacement Tips: Always verify the fuel filter condition when installing a new fuel pump.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E3681M - CARQUEST, AIRTEX
A43022 - PRECISION FUEL PUMPS, PRECISION FUEL
25371048 - GENERAL MOTORS
SP3681M - SPECTRA PREMIUM
M10028 - ACDELCO
MU1426 - ACDELCO
MU1324 - ACDELCO
P76091M - CARTER
19354438 - GENERAL MOTORS
19352891 - GENERAL MOTORS
19133502 - GENERAL MOTORS
DFG0401 - AUTOZONE
25384467 - GENERAL MOTORS
25384466 - GENERAL MOTORS
FG0401 - DELPHI
P76091B - CARTER
19153056 - GENERAL MOTORS
25362254 - GENERAL MOTORS
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (8)vehicles
All
Chevrolet
GMC
| 2004 - 2005 | Chevrolet | Express 3500 |
| 2004 - 2005 | Chevrolet | Express 3500 |
| 2006 - 2008 | Chevrolet | Express 3500 |
| 2006 - 2008 | Chevrolet | Express 3500 |
| 2004 - 2004 | GMC | Savana 3500 |
| 2005 - 2005 | GMC | Savana 3500 |
| 2006 - 2008 | GMC | Savana 3500 |
| 2006 - 2008 | GMC | Savana 3500 |
