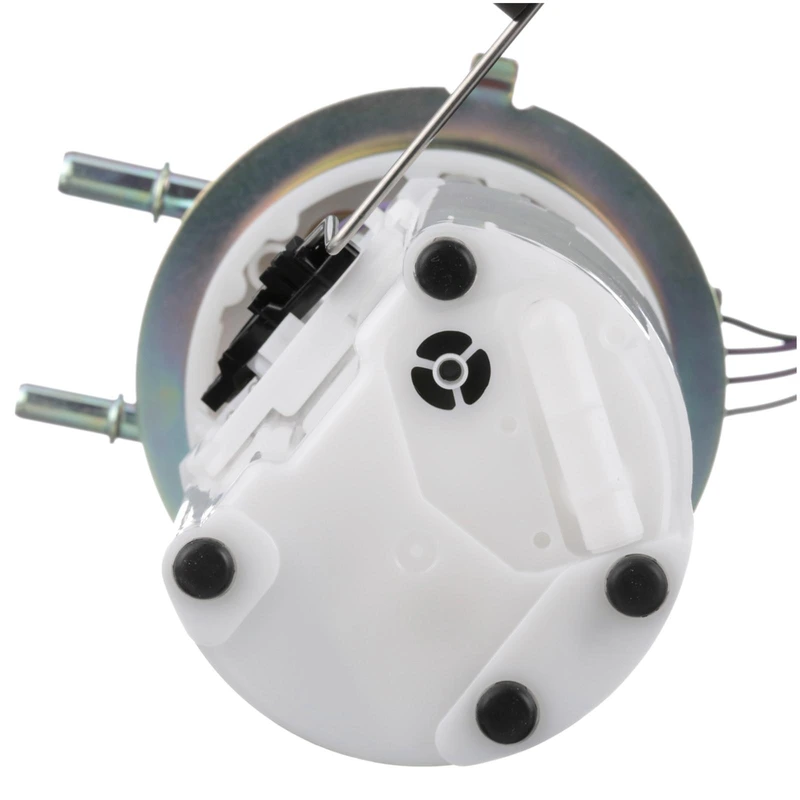

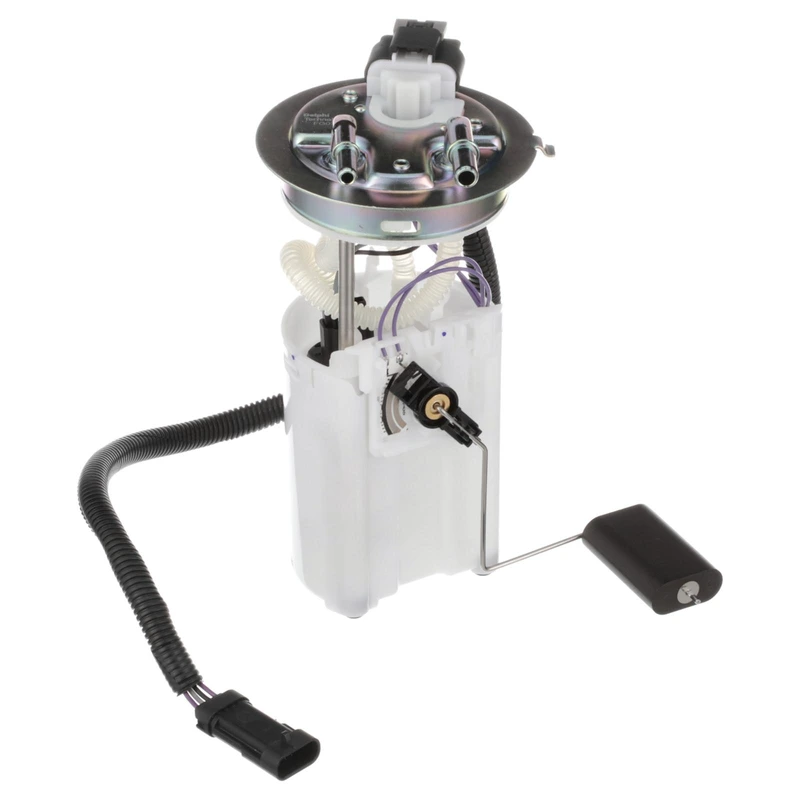

Fuel Pump Module Assembly - Delphi FG0387
Part # FG0387
Item # 1001VHAD
$371.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 7
- Average Flow Rating (gph)
- 30
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 112
- Minimum Pressure (PSI)
- 59
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- Yes
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 40
- Resistance Ohms Full (Ohms)
- 250
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Pin
- Voltage (2h)
- 12
- Wire Harness Included
- Yes
- Wire Quantity
- 4
Show all
Features
About this item
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps integrate the latest OEM technological innovations, ensuring exceptional pumping capability, superior pressure performance, and lower electrical power consumption, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: A-Premium is dedicated to providing top-notch service, allowing customers to enjoy every Delphi fuel pump with free shipping and a 3-year warranty.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Large Volume Reservoir: Featuring a large volume reservoir, Delphi fuel pumps enhance performance in low-fuel conditions.
● Comprehensive Late-Model Coverage: Covering many late-model applications, Delphi fuel pumps give new car owners peace of mind, knowing they can find the right part at a great price.
● Replacement Tips: Inspecting the fuel filter is essential when installing a new fuel pump.
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps integrate the latest OEM technological innovations, ensuring exceptional pumping capability, superior pressure performance, and lower electrical power consumption, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: A-Premium is dedicated to providing top-notch service, allowing customers to enjoy every Delphi fuel pump with free shipping and a 3-year warranty.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Large Volume Reservoir: Featuring a large volume reservoir, Delphi fuel pumps enhance performance in low-fuel conditions.
● Comprehensive Late-Model Coverage: Covering many late-model applications, Delphi fuel pumps give new car owners peace of mind, knowing they can find the right part at a great price.
● Replacement Tips: Inspecting the fuel filter is essential when installing a new fuel pump.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
15077623 - GENERAL MOTORS, OLDSMOBILE, BUICK, GMC, CHEVROLET, ISUZU
88965820 - GENERAL MOTORS, OLDSMOBILE, BUICK, GMC, CHEVROLET, ISUZU
A33014 - IMPORT DIRECT, PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
E3549M - CARQUEST, ULTRAPOWER AUTO PARTS, AIRTEX
9535132, 953-5132 - CARQUEST, DENSO, DENSO AUTO PARTS
M2510465 - CARQUEST, MASTERPRO FUEL PUMPS
CFG0387 - AUTOZONE, DELPHI
MU1334 - ACDELCO
RE0893S - EVO DRIVELINE
AFS0893S - EVO DRIVELINE
P75053M - CARTER
MU1376 - ACDELCO
67415 - BOSCH
FG0387 - DELPHI
1AMFP00028 - MAGNETI MARELLI
SP3549M - SPECTRA PREMIUM
MU1837 - ACDELCO
B5331017 - TRUGRADE
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (4)vehicles
All
Buick
Chevrolet
GMC
Oldsmobile
| 2004 - 2004 | Buick | Rainier |
| 2002 - 2004 | Chevrolet | Trailblazer |
| 2002 - 2004 | GMC | Envoy |
| 2002 - 2004 | Oldsmobile | Bravada |
