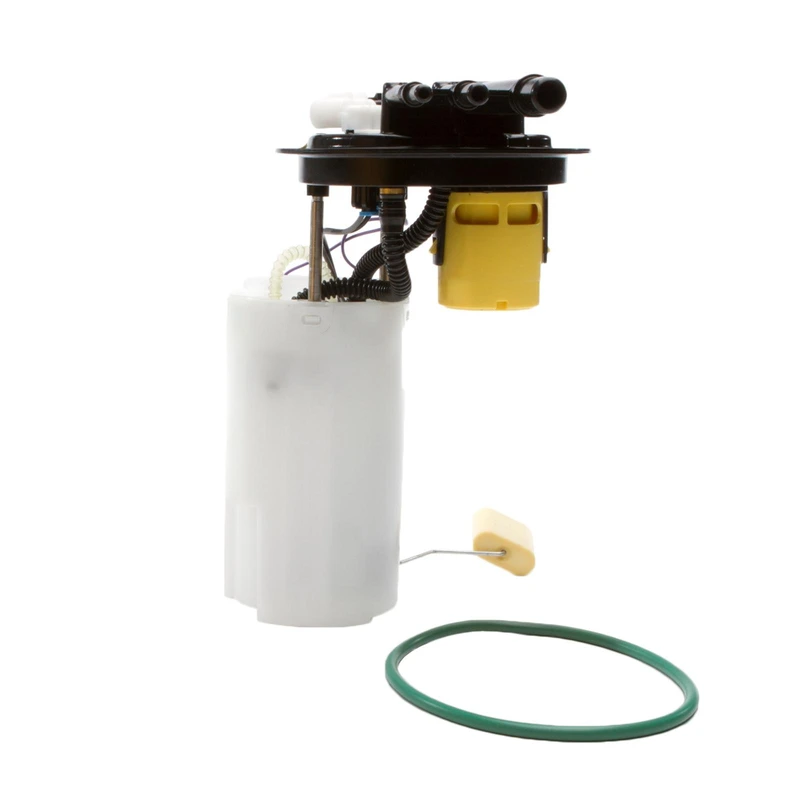

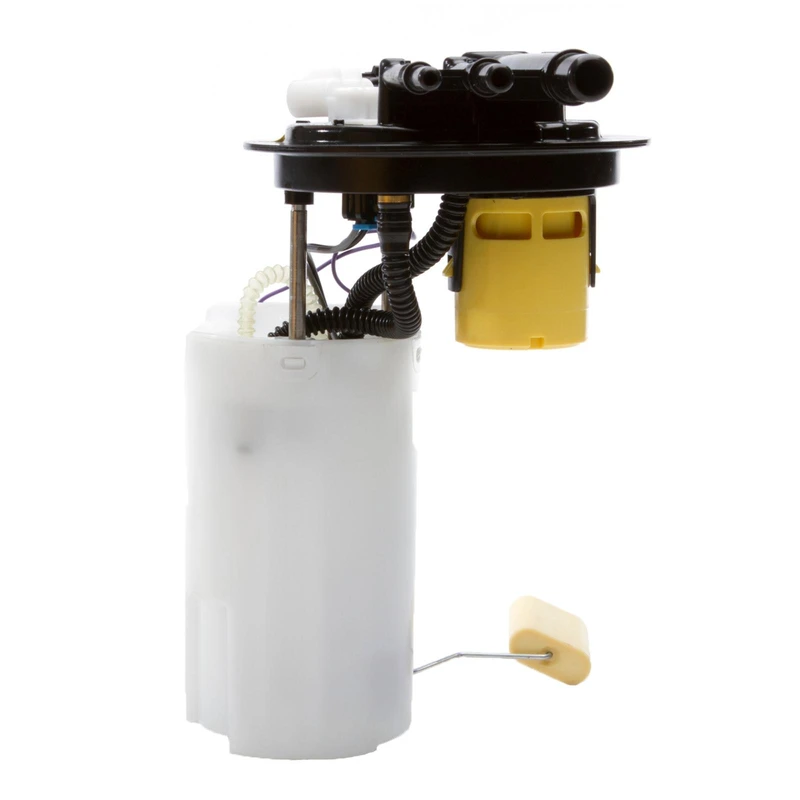

Fuel Pump Module Assembly - Delphi FG0385
Part # FG0385
Item # 1001VKED
$262.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 7
- Average Flow Rating (gph)
- 17
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 65
- Minimum Pressure (PSI)
- 55
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 3
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- Yes
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 40
- Resistance Ohms Full (Ohms)
- 250
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 3
- Terminal Type
- Pin
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps integrate the latest OEM technological innovations, ensuring exceptional pumping capability, superior pressure performance, and lower electrical power consumption, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps available at A-Premium come with free shipping and a generous 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Comprehensive Late-Model Coverage: Providing wide coverage, Delphi fuel pumps cater to a variety of late-model applications.
● Replacement Tips: Always check the condition of the fuel filter during pump replacements.
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps integrate the latest OEM technological innovations, ensuring exceptional pumping capability, superior pressure performance, and lower electrical power consumption, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps available at A-Premium come with free shipping and a generous 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Comprehensive Late-Model Coverage: Providing wide coverage, Delphi fuel pumps cater to a variety of late-model applications.
● Replacement Tips: Always check the condition of the fuel filter during pump replacements.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A41015 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
E3701M - CARQUEST, AIRTEX
E3615M - CARQUEST, AIRTEX
88965550 - GENERAL MOTORS, ACDELCO
MU1496 - ACDELCO
25375620 - GENERAL MOTORS
19169410 - GENERAL MOTORS
28074940 - GENERAL MOTORS
15782271 - GENERAL MOTORS
19352899 - GENERAL MOTORS
15878129 - GENERAL MOTORS
28045326 - GENERAL MOTORS
19369924 - GENERAL MOTORS
MU1834 - ACDELCO
19121525 - GENERAL MOTORS
25343662 - GENERAL MOTORS
19121527 - GENERAL MOTORS
19151519 - GENERAL MOTORS
MU1349 - ACDELCO
SP6010M - SPECTRA PREMIUM
P76085M - CARTER
FG0385 - DELPHI
88965549 - GENERAL MOTORS
CFG0385 - AUTOZONE
P76085B - CARTER
1AMFP00183 - MAGNETI MARELLI
25375619 - GENERAL MOTORS
67495 - BOSCH
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (4)vehicles
All
Buick
Pontiac
| 2004 - 2004 | Buick | Rendezvous |
| 2005 - 2005 | Buick | Rendezvous |
| 2004 - 2004 | Pontiac | Aztek |
| 2005 - 2005 | Pontiac | Aztek |
