Delphi

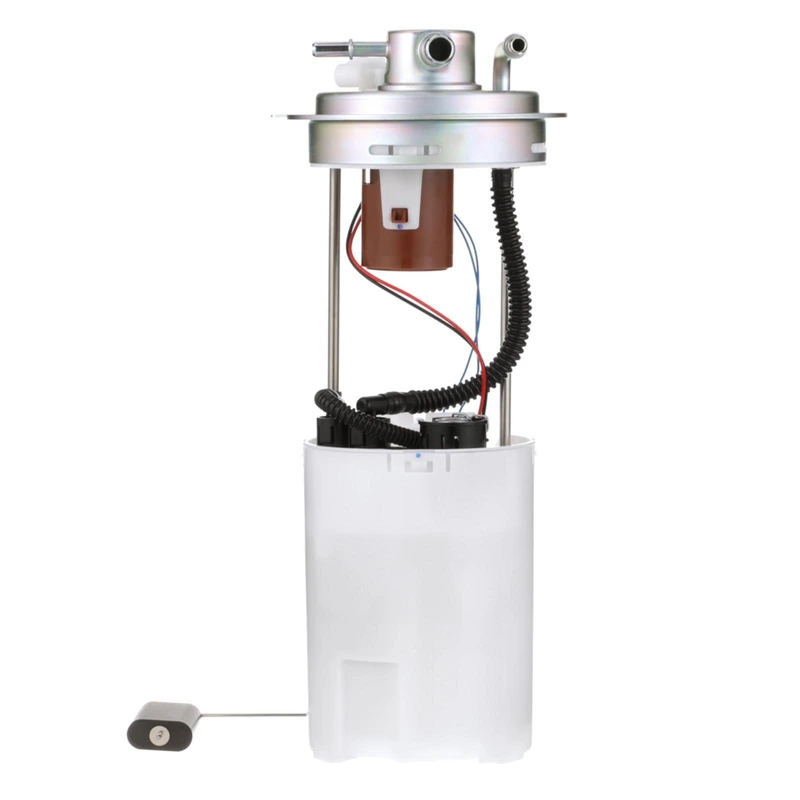

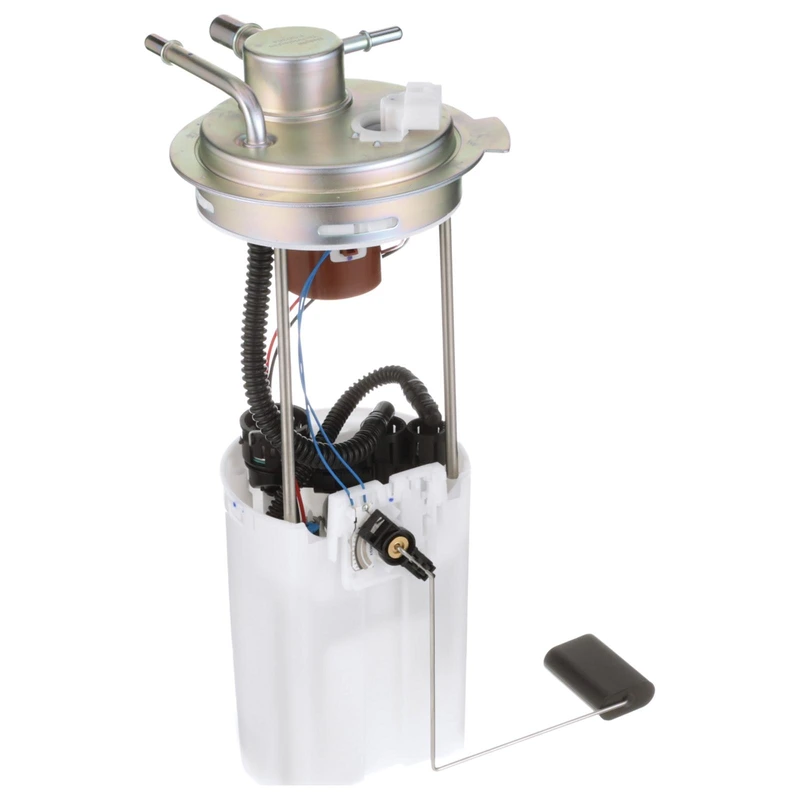

Fuel Pump Module Assembly - Delphi FG0384

Part # FG0384
Item # 1001VDR9
$315.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Sending Unit Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Sending Unit Included
Yes
Average Current Draw (A)
11
Average Flow Rating (gph)
28
Connector Gender
Female
Connector Quantity
1
Connector Shape
Oval
Fuel Filter Included
Yes
Fuel Type
Flex
Gasket Or Seal Included
Yes
Gasket Or Seal Material
Nitrile Rubber
Grade Type
Premium
Housing Material
Plastic
In Tank or External
In Tank
Inlet Type
Strainer
Installation Warnings
No
Internal Or External Strainer
Internal
Lock Ring Included
No
Maximum Pressure (PSI)
73
Minimum Pressure (PSI)
54
Mounting Hardware Included
No
Negative Ground
No
Outlet Outside Diameter (in)
0.375
Outlet Quantity
3
Outlet Type
Quick Connect
Package Contents
Fuel Pump Module Assembly with Float Arm, Instruction Sheet
Pressure Sensor included
No
Pump Design
Turbine
Pump Type
Electric
Regulator Included
Yes
Resistance Ohms Empty (Ohms)
250
Resistance Ohms Full (Ohms)
40
Strainer Included
Yes
Terminal Gender
Male
Terminal Quantity
4
Terminal Type
Blade
Voltage (2h)
12
Wire Harness Included
No
Show all

Features

About this item
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps integrate the latest OEM technological innovations, ensuring exceptional pumping capability, superior pressure performance, and lower electrical power consumption, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: A Delphi fuel pump purchased from A-Premium comes with the advantages of free shipping and a 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Optimized Fuel Delivery: Delphi fuel pumps are engineered for better pumping, ensuring optimal pressure and system integrity.
● Comprehensive Late-Model Coverage: With a wide range of compatibility, Delphi fuel pumps are perfect for late-model applications.
● Replacement Tips: Replacing the fuel filter is a best practice with new fuel pump installations.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A31011 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
19167476 - GENERAL MOTORS, GMC, CHEVROLET
19167477 - GENERAL MOTORS, GMC, CHEVROLET
A30277 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
19303379 - GENERAL MOTORS, GMC, CHEVROLET
E3604M - CARQUEST, AIRTEX
9535131, 953-5131 - DENSO, DENSO AUTO PARTS
19133459 - GENERAL MOTORS, CHEVROLET
19352890 - GENERAL MOTORS
RE0882S - EVO DRIVELINE
P76242M - CARTER
MU1418 - ACDELCO
SP3604M - SPECTRA PREMIUM
66073 - BOSCH
DFG0384 - AUTOZONE
P76739M - CARTER
RE0881S - EVO DRIVELINE
M10024 - ACDELCO
67538 - BOSCH
19133458 - GENERAL MOTORS
1AMFP00169 - MAGNETI MARELLI
25384367 - GENERAL MOTORS
FG0384 - DELPHI
25363723 - GENERAL MOTORS
19352889 - GENERAL MOTORS
67451 - BOSCH
25384366 - GENERAL MOTORS

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (104)vehicles
All
Chevrolet
GMC
2004 - 2004ChevroletSilverado 2500
2004 - 2004ChevroletSilverado 3500
2004 - 2004ChevroletSilverado 3500
2004 - 2004ChevroletSilverado 3500
2004 - 2004ChevroletSilverado 3500
2004 - 2004ChevroletSilverado 3500
2004 - 2004ChevroletSilverado 3500
2004 - 2005ChevroletSilverado 3500
2004 - 2005ChevroletSilverado 3500
2004 - 2005ChevroletSilverado 3500
2004 - 2005ChevroletSilverado 3500
2004 - 2005ChevroletSilverado 3500
2004 - 2005ChevroletSilverado 3500
2004 - 2005ChevroletSilverado 3500
2004 - 2005ChevroletSilverado 3500
2004 - 2006ChevroletSilverado 2500 HD
2004 - 2006ChevroletSilverado 2500 HD
2004 - 2006ChevroletSilverado 3500
2004 - 2006ChevroletSilverado 3500
2004 - 2006ChevroletSilverado 3500
