Fuel Pump Module Assembly - Delphi FG0345
Part # FG0345
Item # 1001VC4T
$334.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 7
- Average Flow Rating (gph)
- 17

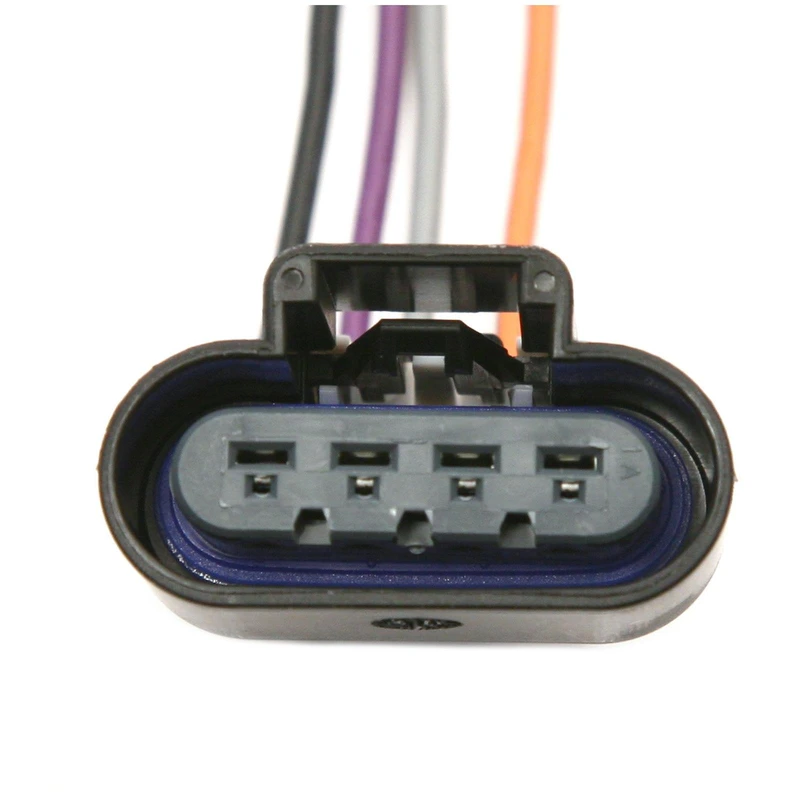

- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 65
- Minimum Pressure (PSI)
- 52
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents

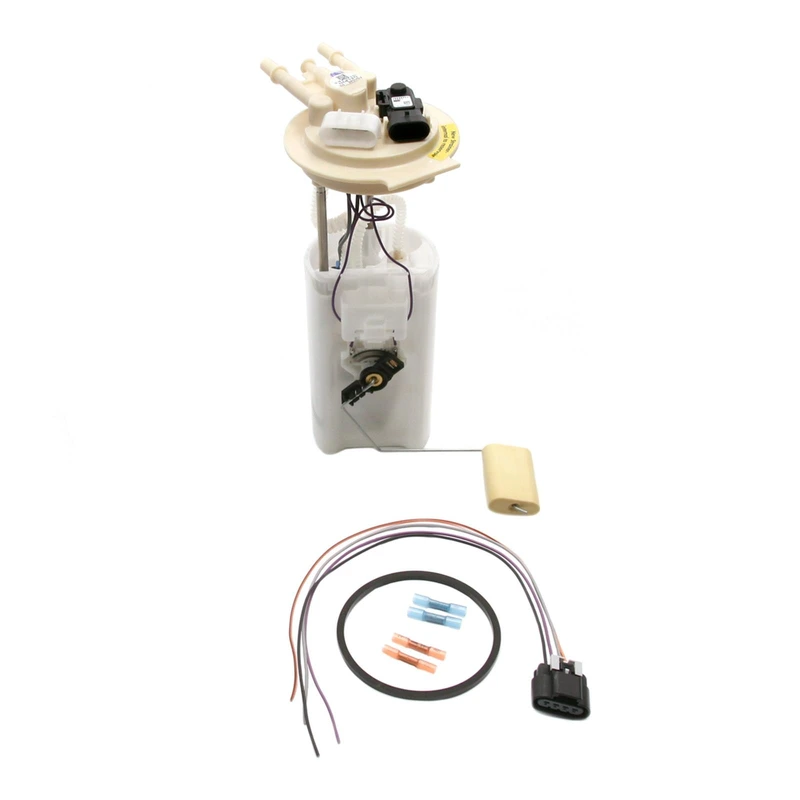

- Fuel Pump Module Assembly with Float Arm, Seal, Splice Kit, Instruction Sheet
- Pressure Sensor included
- Yes
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 40
- Resistance Ohms Full (Ohms)
- 250
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- Yes
- Wire Quantity
- 4
Show all
Features
About this item
With a century of professional expertise and a global reputation as an OEM manufacturer, Delphi upholds strict OEM standards in the manufacturing of its fuel pumps. Every aftermarket replacement pump features the latest OEM technological advancements, guaranteeing outstanding pumping ability, excellent pressure performance, and reduced electrical power usage, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A Delphi fuel pump purchased from A-Premium comes with the advantages of free shipping and a 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Comprehensive Late-Model Coverage: Covering many late-model applications, Delphi fuel pumps ensure reliable performance.
● Replacement Tips: Inspect and change the fuel filter whenever a new fuel pump is installed.
With a century of professional expertise and a global reputation as an OEM manufacturer, Delphi upholds strict OEM standards in the manufacturing of its fuel pumps. Every aftermarket replacement pump features the latest OEM technological advancements, guaranteeing outstanding pumping ability, excellent pressure performance, and reduced electrical power usage, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A Delphi fuel pump purchased from A-Premium comes with the advantages of free shipping and a 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Comprehensive Late-Model Coverage: Covering many late-model applications, Delphi fuel pumps ensure reliable performance.
● Replacement Tips: Inspect and change the fuel filter whenever a new fuel pump is installed.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
19331299 - GENERAL MOTORS, OLDSMOBILE, PONTIAC, CHEVROLET
A30124 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
E3552M - CARQUEST, MASTER PARTS DIVISION, AIRTEX
9535102, 953-5102 - CARQUEST, DENSO, DENSO AUTO PARTS
AFS0830S - EVO DRIVELINE, AUTOBEST
67455 - BOSCH
P74989M - CARTER
MU1800 - ACDELCO
RE0831S - EVO DRIVELINE
67556 - BOSCH
RE0830S - EVO DRIVELINE
25376270 - GENERAL MOTORS
19180127 - GENERAL MOTORS
DFG0345 - AUTOZONE
FG0345 - DELPHI
SP61161M - SPECTRA PREMIUM
AFS0831S - EVO DRIVELINE
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (4)vehicles
All
Chevrolet
Oldsmobile
Pontiac
| 2004 - 2005 | Chevrolet | Venture |
| 2004 - 2004 | Oldsmobile | Silhouette |
| 2004 - 2004 | Pontiac | Montana |
| 2005 - 2005 | Pontiac | Montana |
