Delphi

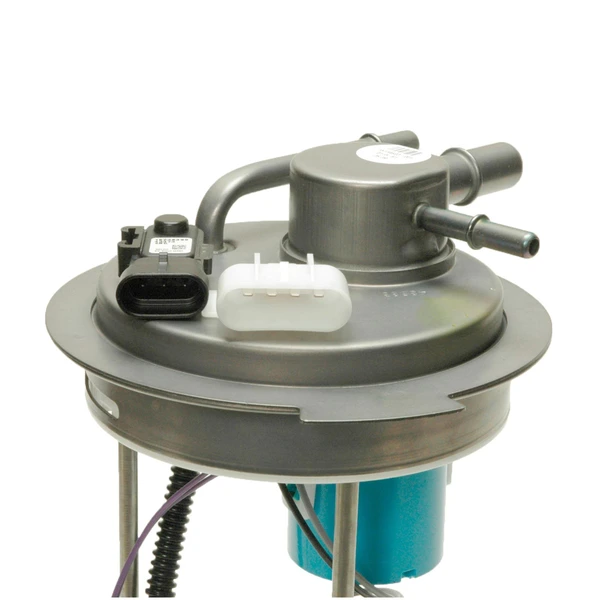

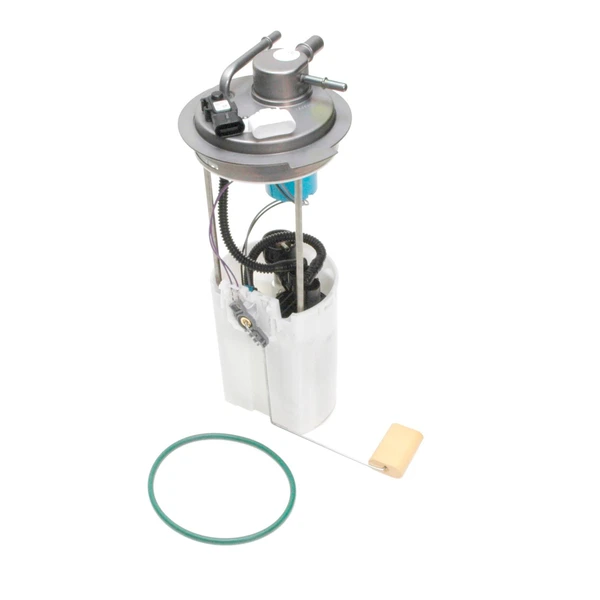

Fuel Pump Module Assembly - Delphi FG0340

Part # FG0340
Item # 1001VHL0
$369.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Sending Unit Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Sending Unit Included
Yes
Average Current Draw (A)
11
Average Flow Rating (gph)
38
Connector Gender
Female
Connector Quantity
1
Connector Shape
Oval
Fuel Filter Included
Yes
Fuel Type
Gas
Gasket Or Seal Included
Yes
Gasket Or Seal Material
Nitrile Rubber
Grade Type
Premium
Housing Material
Plastic
In Tank or External
In Tank
Inlet Type
Strainer
Installation Warnings
No
Internal Or External Strainer
Internal
Lock Ring Included
No
Maximum Pressure (PSI)
73
Minimum Pressure (PSI)
54
Mounting Hardware Included
No
Negative Ground
No
Outlet Outside Diameter (in)
0.375
Outlet Quantity
3
Outlet Type
Quick Connect
Package Contents
Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
Pressure Sensor included
Yes
Pump Design
Turbine
Pump Type
Electric
Regulator Included
Yes
Resistance Ohms Empty (Ohms)
250
Resistance Ohms Full (Ohms)
40
Strainer Included
Yes
Terminal Gender
Male
Terminal Quantity
4
Terminal Type
Blade
Voltage (2h)
13
Wire Harness Included
No
Show all

Features

About this item
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: A-Premium focuses on providing excellent service, making sure that every Delphi fuel pump is accompanied by free shipping and a 3-year warranty.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● OE-design Connector: The OE-design connector and body harness in Delphi fuel pumps provide superior performance capabilities.
● Comprehensive Late-Model Coverage: Delphi fuel pumps ensure both new and seasoned vehicles run smoothly, helping all car owners cut down on repair expenses.
● Replacement Tips: Always ensure the fuel filter is in good condition during pump replacement.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E3609M - CARQUEST, PUROLATOR, ULTRAPOWER AUTO PARTS, AIRTEX, FACET
19303385 - GENERAL MOTORS, GMC, CHEVROLET
9535130, 953-5130 - CARQUEST, DENSO, DENSO AUTO PARTS
19133449 - GENERAL MOTORS, GMC, CHEVROLET
19331937 - GENERAL MOTORS, GMC, CHEVROLET
19303391 - GENERAL MOTORS, GMC, CHEVROLET
19167468 - GENERAL MOTORS, GMC, CHEVROLET
88965371 - GENERAL MOTORS, GMC, CHEVROLET
25349027 - GENERAL MOTORS, GMC, CHEVROLET
19133450 - GENERAL MOTORS, GMC, CHEVROLET
19167467 - GENERAL MOTORS, GMC, CHEVROLET
88965391 - GENERAL MOTORS, GMC, CHEVROLET
9535126, 953-5126 - CARQUEST, DENSO, DENSO AUTO PARTS
A30082 - PRECISION FUEL PUMPS, PRECISION FUEL
9533040, 953-3040 - DENSO, DENSO AUTO PARTS
A44006 - IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
MU1156 - ACDELCO
67447 - BOSCH
MU1415 - ACDELCO
MU1314 - ACDELCO
88965386 - GENERAL MOTORS
1AMFP00033 - MAGNETI MARELLI
P76232M - CARTER
66072 - BOSCH
P76511M - CARTER
DFG0340 - AUTOZONE
69974 - BOSCH
25376408 - GENERAL MOTORS
19331960 - GENERAL MOTORS
RE0881S - EVO DRIVELINE

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (32)vehicles
All
Chevrolet
GMC
2004 - 2004ChevroletSilverado 1500
2004 - 2004ChevroletSilverado 1500
2004 - 2004ChevroletSilverado 1500
2004 - 2004ChevroletSilverado 2500
2004 - 2006ChevroletSilverado 2500 HD
2004 - 2006ChevroletSilverado 2500 HD
2005 - 2006ChevroletSilverado 1500
2005 - 2006ChevroletSilverado 1500 HD
2007 - 2007ChevroletSilverado 1500 Classic
2007 - 2007ChevroletSilverado 1500 HD Classic
2007 - 2007ChevroletSilverado 2500 HD Classic
2007 - 2007ChevroletSilverado 2500 HD Classic
2004 - 2004GMCSierra 1500
2004 - 2004GMCSierra 1500
2004 - 2004GMCSierra 1500
2004 - 2004GMCSierra 2500
2004 - 2006GMCSierra 2500 HD
2004 - 2006GMCSierra 2500 HD
2005 - 2005GMCSierra 1500
2005 - 2006GMCSierra 1500 HD
