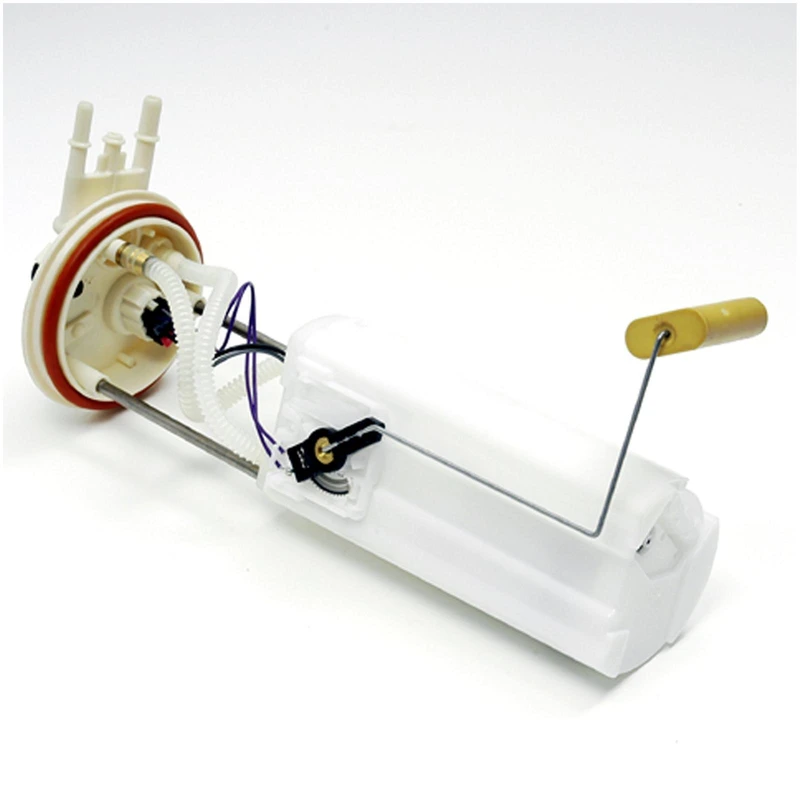

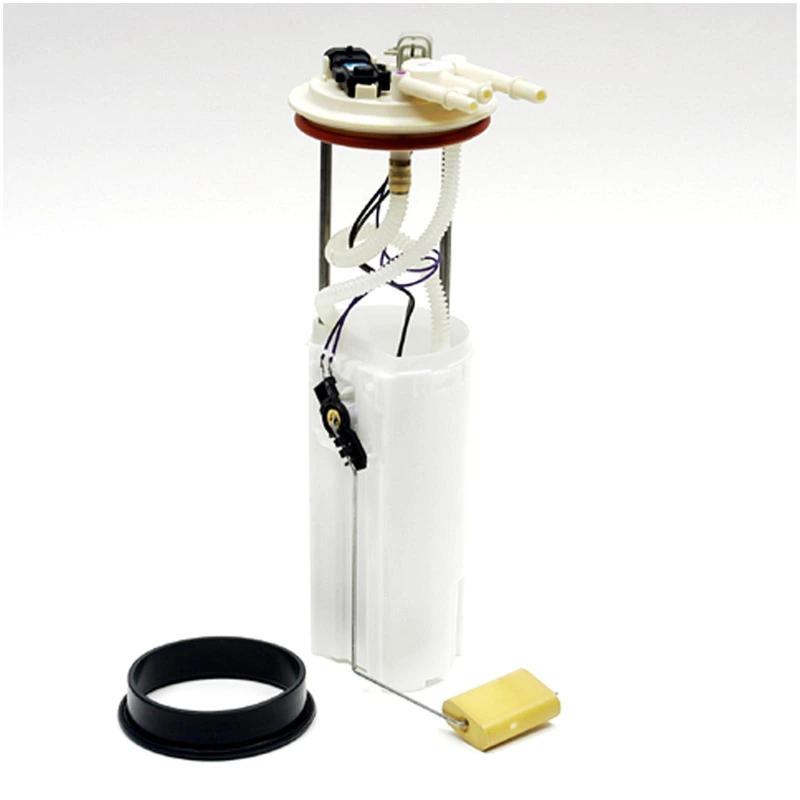

Fuel Pump Module Assembly - Delphi FG0330
Part # FG0330
Item # 1001VEAK
$270.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 8
- Average Flow Rating (gph)
- 29
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- Internal
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 73
- Minimum Pressure (PSI)
- 59
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- Yes
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 40
- Resistance Ohms Full (Ohms)
- 250
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Pin
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Purchasing a Delphi fuel pump from A-Premium includes free shipping and a 3-year warranty.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● OE-design Connector: With an OE-design connector and body harness, Delphi fuel pumps deliver outstanding performance.
● Comprehensive Late-Model Coverage: With wide coverage, Delphi fuel pumps are ideal for late-model vehicle needs.
● Replacement Tips: Ensure the fuel tank is clean to avoid complications after pump installation.
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Purchasing a Delphi fuel pump from A-Premium includes free shipping and a 3-year warranty.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● OE-design Connector: With an OE-design connector and body harness, Delphi fuel pumps deliver outstanding performance.
● Comprehensive Late-Model Coverage: With wide coverage, Delphi fuel pumps are ideal for late-model vehicle needs.
● Replacement Tips: Ensure the fuel tank is clean to avoid complications after pump installation.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
19152154 - GENERAL MOTORS, GMC, CHEVROLET
MU1144 - GENERAL MOTORS, ACDELCO
E3602M - CARQUEST, AIRTEX
A30307 - PRECISION FUEL PUMPS, PRECISION FUEL
SP3575M - SPECTRA PREMIUM
25348566 - GENERAL MOTORS
9535116, 953-5116 - DENSO AUTO PARTS
RE0888S - EVO DRIVELINE
67427 - BOSCH
RE0889S - EVO DRIVELINE
28074108 - GENERAL MOTORS
MU1231, MU 1231 - ACDELCO
FG0330 - DELPHI
25369309 - GENERAL MOTORS
SP3602M - SPECTRA PREMIUM
DFG0330 - AUTOZONE
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Chevrolet
GMC
| 2003 - 2003 | Chevrolet | Express 3500 |
| 2003 - 2003 | GMC | Savana 3500 |
