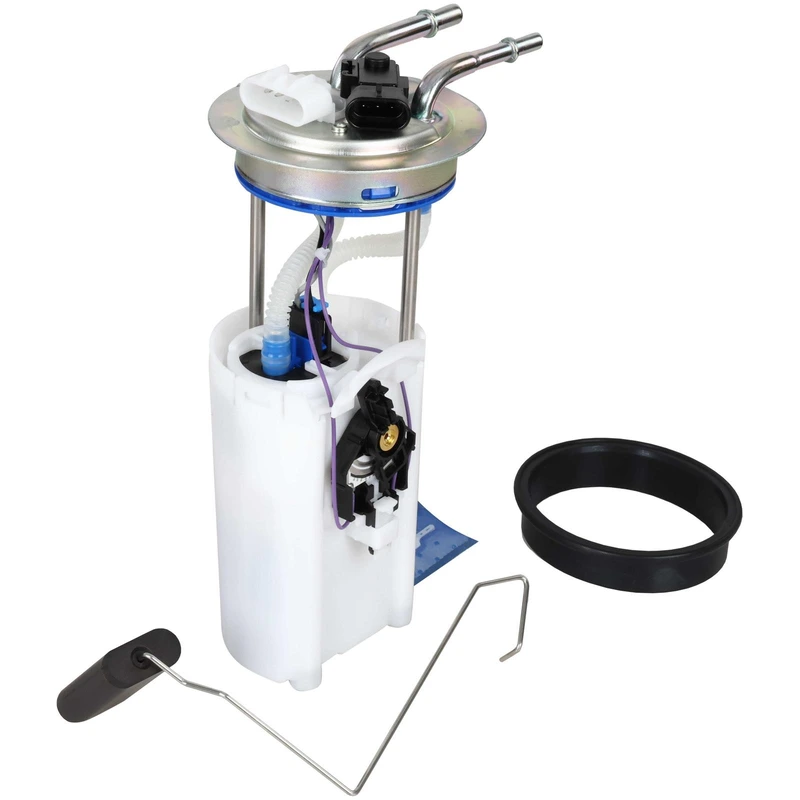

Fuel Pump Module Assembly - Delphi FG0273
Part # FG0273
Item # 1001VG74
$277.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 9
- Average Flow Rating (gph)
- 32
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 109
- Minimum Pressure (PSI)
- 62
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- Yes
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 40
- Resistance Ohms Full (Ohms)
- 250
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Choose A-Premium for your Delphi fuel pump, and you’ll enjoy the benefits of free shipping as well as a 3-year warranty.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Comprehensive Late-Model Coverage: A wide range of late-model applications is supported by Delphi fuel pumps.
● Replacement Tips: Be sure to check and clean the fuel tank to prevent unnecessary issues.
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Choose A-Premium for your Delphi fuel pump, and you’ll enjoy the benefits of free shipping as well as a 3-year warranty.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Comprehensive Late-Model Coverage: A wide range of late-model applications is supported by Delphi fuel pumps.
● Replacement Tips: Be sure to check and clean the fuel tank to prevent unnecessary issues.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E3556M - CARQUEST, MASTER PARTS DIVISION, PUROLATOR, AIRTEX, FACET
25345024 - CADILLAC, GENERAL MOTORS, GMC, CHEVROLET
19331260 - CADILLAC, GENERAL MOTORS, GMC, CHEVROLET
19180099 - CADILLAC, GENERAL MOTORS, GMC, CHEVROLET
MPA30041 - MASTERPRO FUEL PUMPS, POWER TORQUE, MASTERPRO, MASTERPRO IGNITION
A30041 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
9530035, 953-0035 - DENSO, DENSO AUTO PARTS
9535105, 953-5105 - CARQUEST, DENSO AUTO PARTS
DFG0273 - AUTOZONE, DELPHI
19369909 - GENERAL MOTORS
P75023M - CARTER
B5321024 - TRUGRADE
RE0853S - EVO DRIVELINE
P74832M - CARTER
67317, 67 317 - BOSCH
FG0273 - DELPHI
MU1088 - ACDELCO
M2246724 - CARQUEST
SP61088M - SPECTRA PREMIUM
MU1738 - ACDELCO
1AMFP00085 - MAGNETI MARELLI
AFS0853S - EVO DRIVELINE
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (6)vehicles
All
Cadillac
Chevrolet
GMC
| 2002 - 2003 | Cadillac | Escalade EXT |
| 2003 - 2003 | Cadillac | Escalade ESV |
| 2002 - 2002 | Chevrolet | Suburban 1500 |
| 2002 - 2003 | Chevrolet | Avalanche 1500 |
| 2003 - 2003 | Chevrolet | Suburban 1500 |
| 2002 - 2003 | GMC | Yukon XL 1500 |
