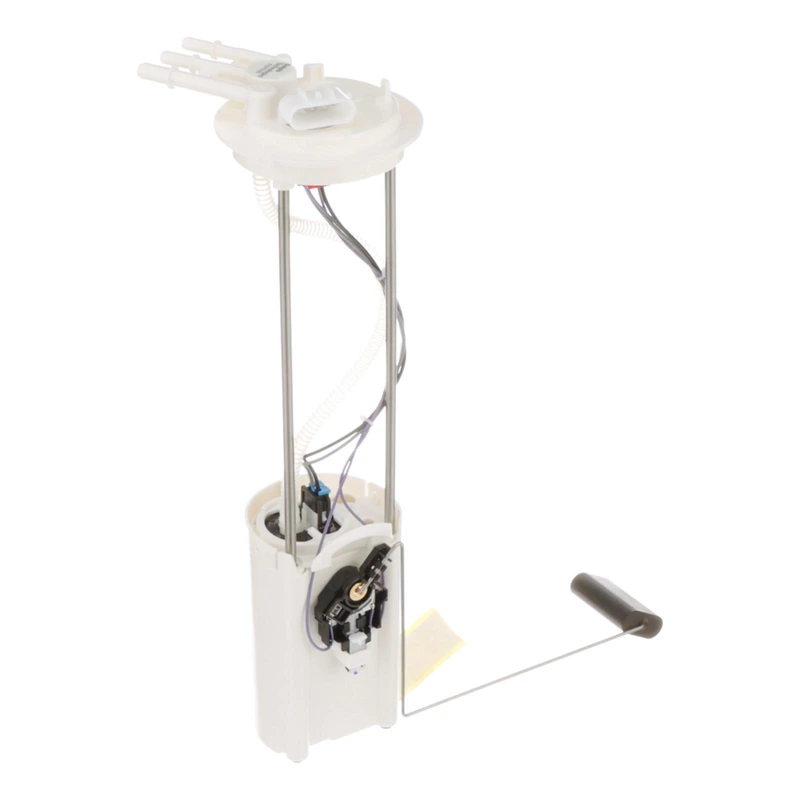

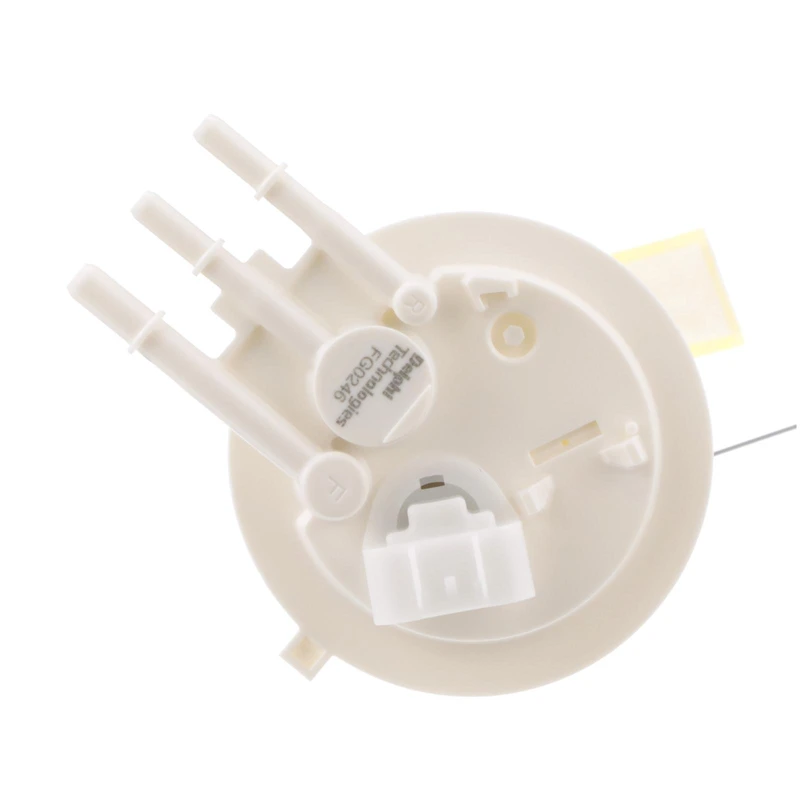

Fuel Pump Module Assembly - Delphi FG0246
Part # FG0246
Item # 1001VKGH
$233.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 24
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 109
- Minimum Pressure (PSI)
- 62
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 3
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Splice Kit, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 40
- Resistance Ohms Full (Ohms)
- 250
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- Yes
- Wire Quantity
- 4
Show all
Features
About this item
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps available at A-Premium come with free shipping and a generous 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Comprehensive Late-Model Coverage: With a wide range of compatibility, Delphi fuel pumps are perfect for late-model applications.
● Replacement Tips: Always check the fuel filter as part of the fuel pump replacement process.
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps available at A-Premium come with free shipping and a generous 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Comprehensive Late-Model Coverage: With a wide range of compatibility, Delphi fuel pumps are perfect for late-model applications.
● Replacement Tips: Always check the fuel filter as part of the fuel pump replacement process.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E3501M - CARQUEST, MASTER PARTS DIVISION, PUROLATOR, ULTRAPOWER AUTO PARTS, AIRTEX, FACET
E3599M - CARQUEST, MASTER PARTS DIVISION, AIRTEX
A30036 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
19332084 - GENERAL MOTORS, GMC, CHEVROLET
E7142M - CARQUEST, MASTER PARTS DIVISION, AIRTEX
19153720 - GENERAL MOTORS, GMC, CHEVROLET
19153703 - GENERAL MOTORS, ACDELCO
19121636 - GENERAL MOTORS
19369918 - GENERAL MOTORS
P75014M - CARTER
P74932M - CARTER
25384292 - GENERAL MOTORS
MU1622 - ACDELCO
EFG0246 - AUTOZONE
67549 - BOSCH
9535070, 953-5070 - DENSO AUTO PARTS
SP6612M - SPECTRA PREMIUM
FG0246 - DELPHI
MU1515 - ACDELCO
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (10)vehicles
All
Chevrolet
GMC
| 2001 - 2003 | Chevrolet | Silverado 3500 |
| 2001 - 2003 | Chevrolet | Silverado 3500 |
| 2001 - 2003 | Chevrolet | Silverado 3500 |
| 2001 - 2003 | Chevrolet | Silverado 3500 |
| 2001 - 2002 | GMC | Sierra 3500 |
| 2001 - 2002 | GMC | Sierra 3500 |
| 2001 - 2003 | GMC | Sierra 3500 |
| 2001 - 2003 | GMC | Sierra 3500 |
| 2002 - 2003 | GMC | Sierra 3500 |
| 2002 - 2003 | GMC | Sierra 3500 |
