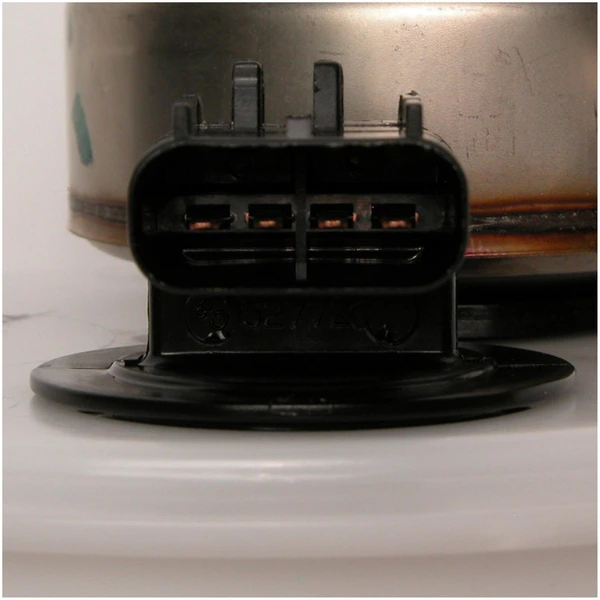

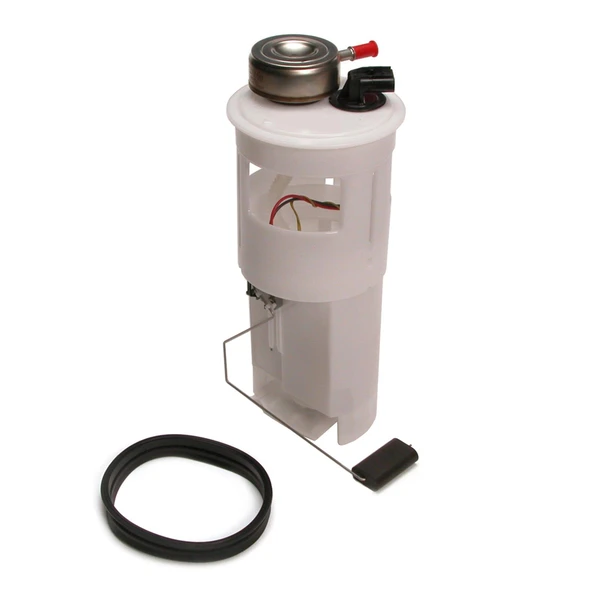

Fuel Pump Module Assembly - Delphi FG0239
Part # FG0239
Item # 1001VG04
$211.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 16
- Average Flow Rating (gph)
- 31
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 73
- Minimum Pressure (PSI)
- 49
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 220
- Resistance Ohms Full (Ohms)
- 20
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A-Premium provides an outstanding shopping experience, offering free shipping and a 3-year warranty with every Delphi fuel pump purchased.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● OE-design Connector: The OE-design connector and body harness in Delphi fuel pumps provide superior performance capabilities.
● Comprehensive Late-Model Coverage: Providing wide coverage, Delphi fuel pumps cater to a variety of late-model applications.
● Replacement Tips: Replacing the fuel filter is a best practice with new fuel pump installations.
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A-Premium provides an outstanding shopping experience, offering free shipping and a 3-year warranty with every Delphi fuel pump purchased.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● OE-design Connector: The OE-design connector and body harness in Delphi fuel pumps provide superior performance capabilities.
● Comprehensive Late-Model Coverage: Providing wide coverage, Delphi fuel pumps cater to a variety of late-model applications.
● Replacement Tips: Replacing the fuel filter is a best practice with new fuel pump installations.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E7138M - CARQUEST, MASTER PARTS DIVISION, PUROLATOR, AIRTEX, FACET
A36004 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
9533025, 953-3025 - CARQUEST, DENSO, DENSO AUTO PARTS
E7124M - CARQUEST, MASTER PARTS DIVISION, AIRTEX
E7123M - CARQUEST, MASTER PARTS DIVISION, AIRTEX
68029434AA, 6802 9434AA - DODGE, CHRYSLER
52102180AB, 5210 2180AB - CHRYSLER
67661 - BOSCH
RE0569S - EVO DRIVELINE
P74740M - CARTER
MU2051 - ACDELCO
MU258 - ACDELCO
5010370AC, 5010 370AC - CHRYSLER
SP7124M - SPECTRA PREMIUM
DFG0239 - AUTOZONE
5010370AA, 5010 370AA - CHRYSLER
89032321 - GENERAL MOTORS
FG0239 - DELPHI
AFS0569S - EVO DRIVELINE
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (6)vehicles
All
Dodge
| 1998 - 1998 | Dodge | B1500 |
| 1998 - 1998 | Dodge | B2500 |
| 1998 - 1998 | Dodge | B3500 |
| 1999 - 2000 | Dodge | Ram 1500 Van |
| 1999 - 2000 | Dodge | Ram 2500 Van |
| 1999 - 2000 | Dodge | Ram 3500 Van |
