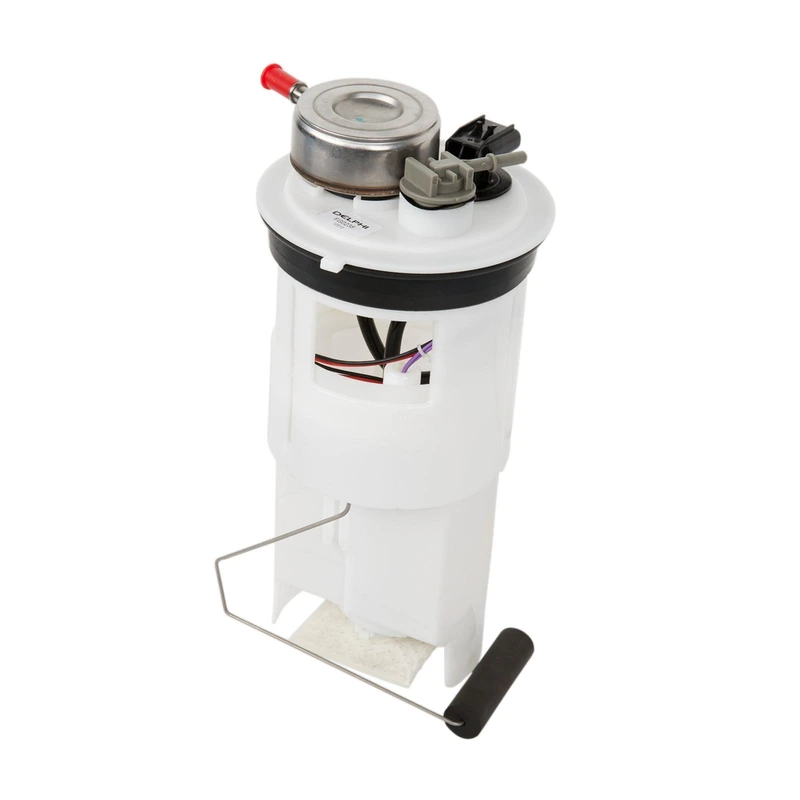

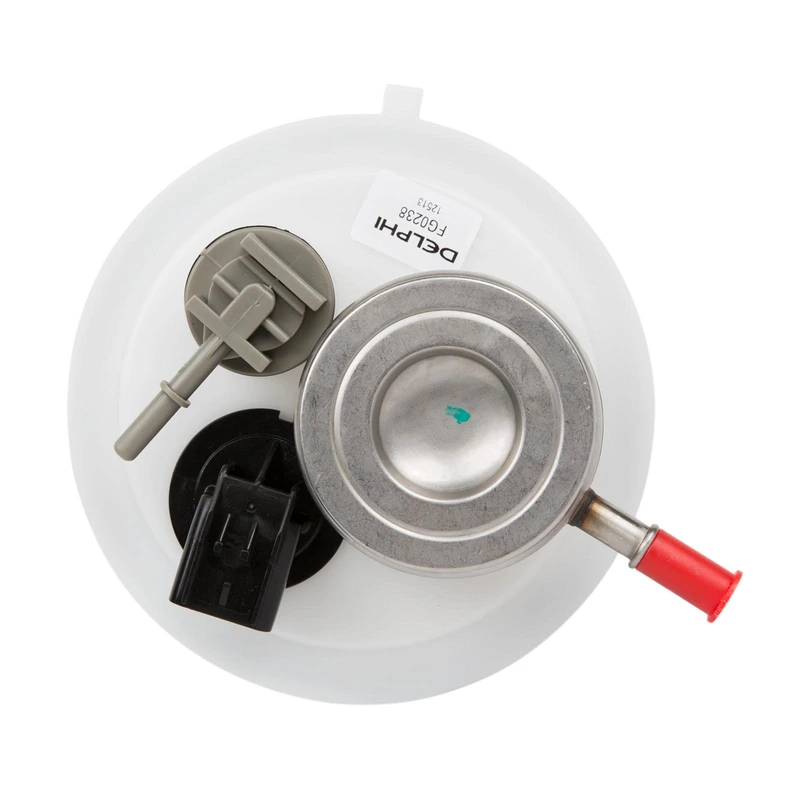

Fuel Pump Module Assembly - Delphi FG0238
Part # FG0238
Item # 1001VC4P
$228.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 6
- Average Flow Rating (gph)
- 31
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 73
- Minimum Pressure (PSI)
- 49
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 223
- Resistance Ohms Full (Ohms)
- 20
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A Delphi fuel pump purchased from A-Premium comes with the advantages of free shipping and a 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Optimized Fuel Delivery: Delphi fuel pumps are engineered for better pumping, ensuring optimal pressure and system integrity.
● Comprehensive Late-Model Coverage: Covering many late-model applications, Delphi fuel pumps ensure reliable performance.
● Replacement Tips: Inspect and change the fuel filter whenever a new fuel pump is installed.
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A Delphi fuel pump purchased from A-Premium comes with the advantages of free shipping and a 3-year warranty.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Optimized Fuel Delivery: Delphi fuel pumps are engineered for better pumping, ensuring optimal pressure and system integrity.
● Comprehensive Late-Model Coverage: Covering many late-model applications, Delphi fuel pumps ensure reliable performance.
● Replacement Tips: Inspect and change the fuel filter whenever a new fuel pump is installed.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E7117M - CARQUEST, MASTER PARTS DIVISION, PUROLATOR, AIRTEX, FACET
MPA30053 - MASTERPRO FUEL PUMPS, POWER TORQUE, MASTERPRO, MASTERPRO IGNITION
A30053 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
9533024, 953-3024 - CARQUEST, DENSO, DENSO AUTO PARTS
5083317AC, 5083 317AC - DODGE, CHRYSLER
5083317AB, 5083 317AB - DODGE, CHRYSLER
5083317AA, 5083 317AA - DODGE, CHRYSLER
TU138 - WALBRO, TI AUTOMOTIVE
5003465AD, 5003 465AD - DODGE, CHRYSLER
DFG0238 - AUTOZONE, DELPHI
5003465AB, 5003 465AB - DODGE, CHRYSLER
5003465AA, 5003 465AA - DODGE, CHRYSLER
52102173AG - CHRYSLER
52102862AB, 5210 2862AB - CHRYSLER
MU257 - ACDELCO
D5321035 - TRUGRADE
52102173AF, 5210 2173AF - CHRYSLER
52102862AA, 5210 2862AA - CHRYSLER
52102173AC - CHRYSLER
52102173AB - CHRYSLER
52102173AE - CHRYSLER
52102173AD - CHRYSLER
89032324 - GENERAL MOTORS
SP7117M - SPECTRA PREMIUM
FG0238 - DELPHI
P74803M - CARTER
AFS0564S - EVO DRIVELINE
67657 - BOSCH
RE0564S - EVO DRIVELINE
MU2054 - ACDELCO
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Dodge
| 1998 - 2003 | Dodge | Durango |
