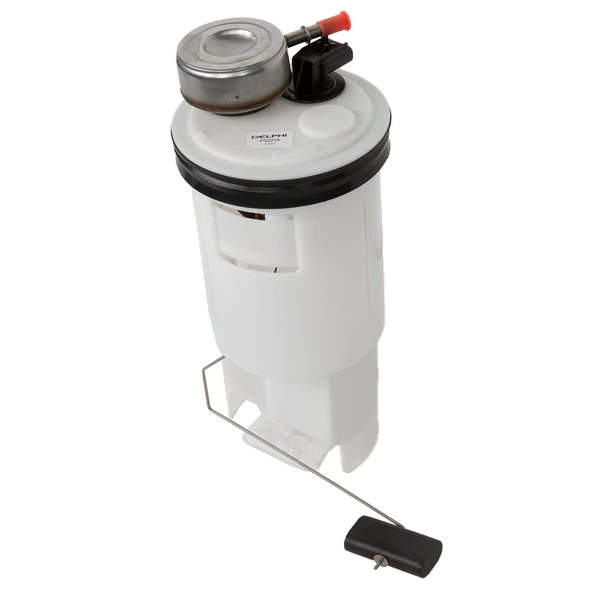

Fuel Pump Module Assembly - Delphi FG0234
Part # FG0234
Item # 1001VHGC
$215.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 6
- Average Flow Rating (gph)
- 28
- Connector Gender
- Female
- Connector Quantity
- 1

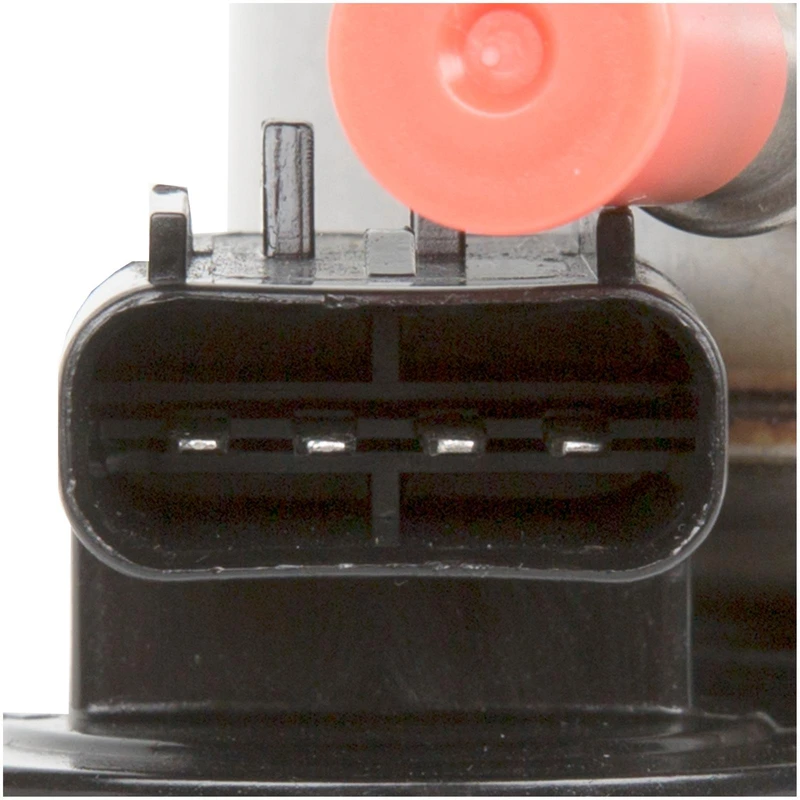

- Connector Shape
- Oval
- Fuel Filter Included
- Yes
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 73
- Minimum Pressure (PSI)
- 49
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 224
- Resistance Ohms Full (Ohms)
- 19
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A-Premium offers free shipping and a 3-year warranty with every Delphi fuel pump purchase.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● OE-design Connector: With an OE-design connector and body harness, Delphi fuel pumps deliver outstanding performance.
● Comprehensive Late-Model Coverage: With wide coverage, Delphi fuel pumps are ideal for late-model vehicle needs.
● Replacement Tips: Ensure the fuel tank is clean to avoid complications after pump installation.
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A-Premium offers free shipping and a 3-year warranty with every Delphi fuel pump purchase.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● OE-design Connector: With an OE-design connector and body harness, Delphi fuel pumps deliver outstanding performance.
● Comprehensive Late-Model Coverage: With wide coverage, Delphi fuel pumps are ideal for late-model vehicle needs.
● Replacement Tips: Ensure the fuel tank is clean to avoid complications after pump installation.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A30101 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
E7114M - CARQUEST, MASTER PARTS DIVISION, AIRTEX
9533020, 953-3020 - DENSO, DENSO AUTO PARTS
TU136 - WALBRO, TI AUTOMOTIVE
4897920AB, 4897 920AB - DODGE, CHRYSLER
4897920AD, 4897 920AD - DODGE, CHRYSLER
67654 - BOSCH
4886297AA, 4886 297AA - CHRYSLER
MU253 - ACDELCO
RE0504S - EVO DRIVELINE
4897493AA, 4897 493AA - CHRYSLER
DFG0234 - AUTOZONE
52102355 - CHRYSLER
SP7114M - SPECTRA PREMIUM
4897920AA, 4897 920AA - CHRYSLER
FG0234 - DELPHI
4897920AC - CHRYSLER
4882204, 4882 204 - CHRYSLER
52102192 - CHRYSLER
AFS0504S - EVO DRIVELINE
P74739M - CARTER
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Dodge
| 1997 - 1999 | Dodge | Dakota |
