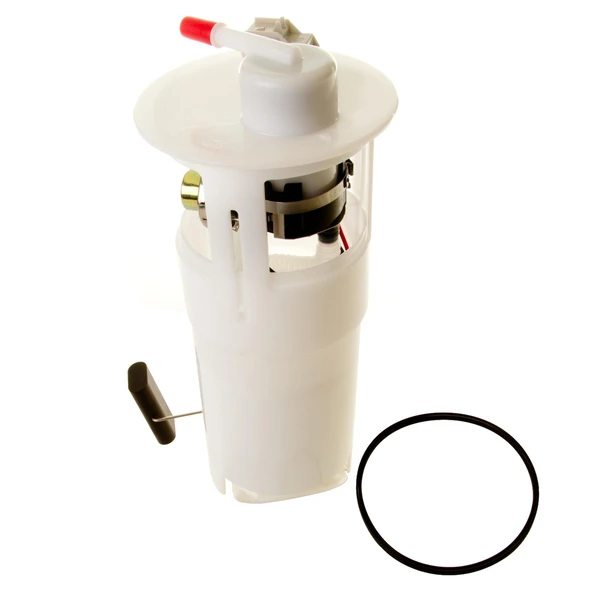

Fuel Pump Module Assembly - Delphi FG0232
Part # FG0232
Item # 1001VH07
$226.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 14
- Average Flow Rating (gph)
- 23
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 73
- Minimum Pressure (PSI)
- 49
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 1050
- Resistance Ohms Full (Ohms)
- 60
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Choose A-Premium for your Delphi fuel pump, and you’ll enjoy the benefits of free shipping as well as a 3-year warranty.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Comprehensive Late-Model Coverage: With a wide range of coverage, Delphi fuel pumps are suitable for various late-model applications.
● Replacement Tips: Inspecting and replacing the fuel filter during a new fuel pump installation is essential.
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Choose A-Premium for your Delphi fuel pump, and you’ll enjoy the benefits of free shipping as well as a 3-year warranty.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Comprehensive Late-Model Coverage: With a wide range of coverage, Delphi fuel pumps are suitable for various late-model applications.
● Replacement Tips: Inspecting and replacing the fuel filter during a new fuel pump installation is essential.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A27023 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
E7137M - CARQUEST, MASTER PARTS DIVISION, AIRTEX
9533018, 953-3018 - DENSO, DENSO AUTO PARTS
5003958AE, 5003 958AE - DODGE, CHRYSLER
67663 - BOSCH
MU251 - ACDELCO
AFS0572S - EVO DRIVELINE
5003960AA, 5003 960AA - CHRYSLER
MU2055 - ACDELCO
5003958AB, 5003 958AB - CHRYSLER
5003958AA, 5003 958AA - CHRYSLER
5003958AD - CHRYSLER
FG0232 - DELPHI
5003958AC, 5003 958AC - CHRYSLER
SP7137M - SPECTRA PREMIUM
4581046 - CHRYSLER
RE0572S - EVO DRIVELINE
89032325 - GENERAL MOTORS
DFG0232 - AUTOZONE
P74819M - CARTER
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Chrysler
Dodge
| 1998 - 1999 | Chrysler | Concorde |
| 1998 - 1999 | Chrysler | Intrepid |
| 1999 - 1999 | Chrysler | 300M |
| 1999 - 1999 | Chrysler | LHS |
| 1998 - 1999 | Dodge | Intrepid |
