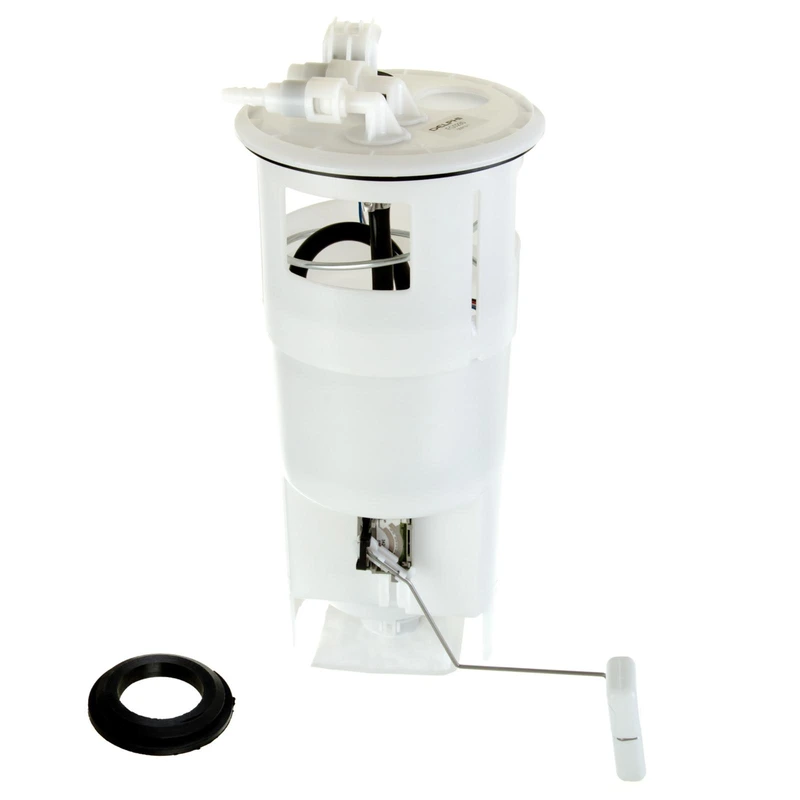

Fuel Pump Module Assembly - Delphi FG0230
Part # FG0230
Item # 1001VCT9
$229.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 7
- Average Flow Rating (gph)
- 23
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank

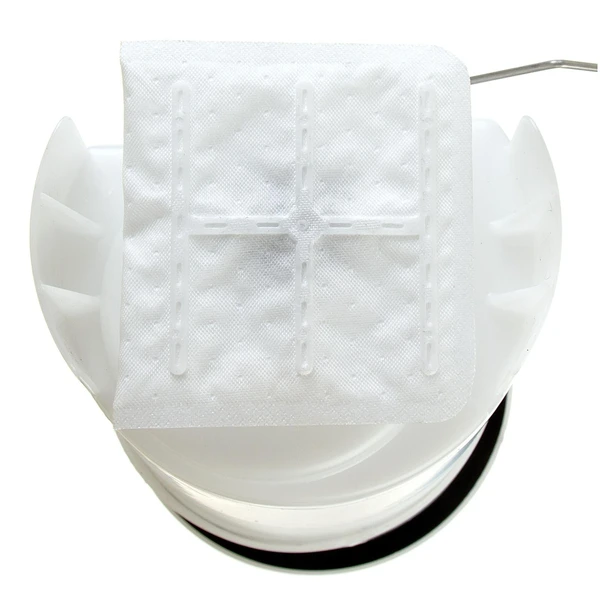

- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 73
- Minimum Pressure (PSI)
- 44
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 1050
- Resistance Ohms Full (Ohms)
- 51
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies meticulous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps feature the latest OEM technological innovations, guaranteeing exceptional pumping capability, superior pressure performance, and lower electrical power usage, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: A-Premium offers free shipping and a 3-year warranty with every Delphi fuel pump purchase.
● OE-design connector: Delphi's fuel pump boasts an OE-design connector and body harness for top-tier performance.
● Gauge Accuracy: Delphi's fuel pumps are engineered to adhere to the OE specifications for empty float height and float retention, delivering accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps are engineered for better pumping, ensuring optimal pressure and system integrity.
● Comprehensive Late-Model Coverage: With a wide range of compatibility, Delphi fuel pumps are perfect for late-model applications.
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies meticulous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps feature the latest OEM technological innovations, guaranteeing exceptional pumping capability, superior pressure performance, and lower electrical power usage, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: A-Premium offers free shipping and a 3-year warranty with every Delphi fuel pump purchase.
● OE-design connector: Delphi's fuel pump boasts an OE-design connector and body harness for top-tier performance.
● Gauge Accuracy: Delphi's fuel pumps are engineered to adhere to the OE specifications for empty float height and float retention, delivering accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps are engineered for better pumping, ensuring optimal pressure and system integrity.
● Comprehensive Late-Model Coverage: With a wide range of compatibility, Delphi fuel pumps are perfect for late-model applications.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
4897428AB, 4897 428AB - DODGE, CHRYSLER, EAGLE
A27016 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
E7101M - CARQUEST, MASTER PARTS DIVISION, AIRTEX
9533014, 953-3014 - DENSO, DENSO AUTO PARTS
4897428AA, 4897 428AA - CHRYSLER
4886343AA, 4886 343AA - CHRYSLER
RE0496S - EVO DRIVELINE
4856445, 4856 445 - CHRYSLER
67648 - BOSCH
MU249 - ACDELCO
MU2043 - ACDELCO
FG0230 - DELPHI
SP7101M - SPECTRA PREMIUM
4882079, 4882 079, 488 2079 - CHRYSLER
89032313 - GENERAL MOTORS
AFS0496S - EVO DRIVELINE
DFG0230 - AUTOZONE
P74707M - CARTER
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (8)vehicles
All
Chrysler
Dodge
Eagle
| 1996 - 1996 | Chrysler | Concorde |
| 1996 - 1996 | Chrysler | New Yorker |
| 1996 - 1997 | Chrysler | Concorde |
| 1996 - 1997 | Chrysler | Concorde |
| 1996 - 1997 | Chrysler | Intrepid |
| 1996 - 1997 | Chrysler | LHS |
| 1996 - 1997 | Dodge | Intrepid |
| 1996 - 1997 | Eagle | Vision |
