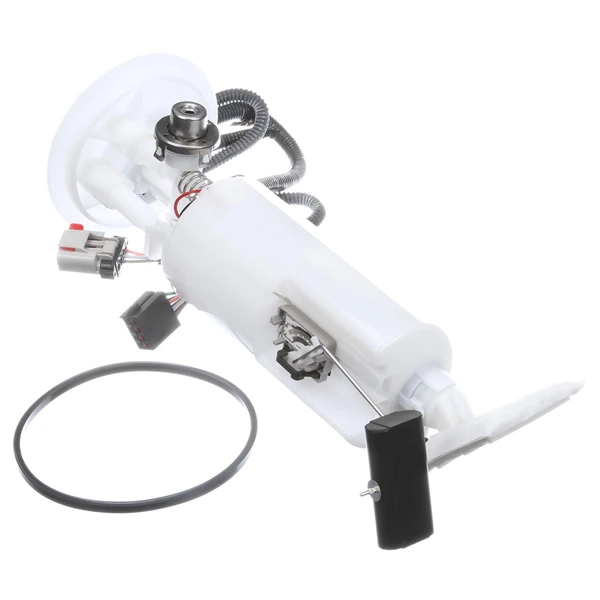

Fuel Pump Module Assembly - Delphi FG0228
Part # FG0228
Item # 1001VGLH
$131.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 6
- Average Flow Rating (gph)
- 23

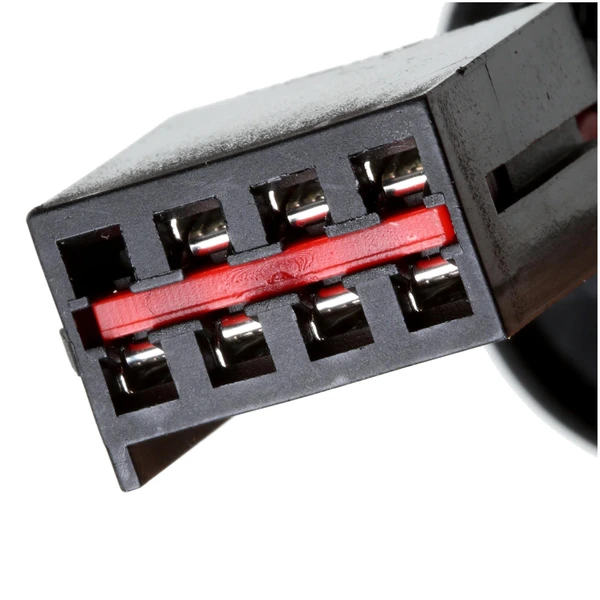

- Connector Gender
- Male
- Connector Quantity
- 2
- Connector Shape
- Rectangle
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 93
- Minimum Pressure (PSI)
- 44
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- G-Rotor
- Pump Type
- Electric
- Regulator Included
- Yes
- Resistance Ohms Empty (Ohms)
- 1053
- Resistance Ohms Full (Ohms)
- 60
- Strainer Included
- Yes
- Terminal Gender
- Female
- Terminal Quantity
- 7
- Terminal Type
- Pin
- Voltage (2h)
- 12
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies meticulous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps feature the latest OEM technological innovations, guaranteeing exceptional pumping capability, superior pressure performance, and lower electrical power usage, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Enjoy the added benefits of free shipping and a warranty of up to 3 years when you choose a Delphi fuel pump.
● OE-design connector: Delphi's fuel pump boasts an OE-design connector and body harness for top-tier performance.
● Gauge Accuracy: Delphi's fuel pumps are engineered to adhere to the OE specifications for empty float height and float retention, delivering accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Validated Vehicle Fit: Delphi's parts are validated and tested to ensure a perfect match for the intended vehicle application.
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies meticulous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps feature the latest OEM technological innovations, guaranteeing exceptional pumping capability, superior pressure performance, and lower electrical power usage, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Enjoy the added benefits of free shipping and a warranty of up to 3 years when you choose a Delphi fuel pump.
● OE-design connector: Delphi's fuel pump boasts an OE-design connector and body harness for top-tier performance.
● Gauge Accuracy: Delphi's fuel pumps are engineered to adhere to the OE specifications for empty float height and float retention, delivering accurate fuel gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Validated Vehicle Fit: Delphi's parts are validated and tested to ensure a perfect match for the intended vehicle application.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
MPA30040 - MASTERPRO FUEL PUMPS, POWER TORQUE, MASTERPRO, MASTERPRO IGNITION
9533028, 953-3028 - CARQUEST, DENSO, DENSO AUTO PARTS
4897804AB, 4897 804AB - PLYMOUTH, DODGE, CHRYSLER
4897804AC, 4897 804AC - PLYMOUTH, DODGE, CHRYSLER
A30040 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
EFG0228 - AUTOZONE, DELPHI
E7113M - CARQUEST, AIRTEX
AFS0500S - EVO DRIVELINE
67653 - BOSCH
9510007, 951-0007 - DENSO AUTO PARTS
RE0500S - EVO DRIVELINE
4897866AA, 4897 866AA - CHRYSLER
P74802M - CARTER
P72236 - CARTER
D5321034 - TRUGRADE
MU247 - ACDELCO
4897804AA, 4897 804AA - CHRYSLER
MU2053 - ACDELCO
SP7113M - SPECTRA PREMIUM
M219683 - CARQUEST
FG0228 - DELPHI
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (7)vehicles
All
Chrysler
Dodge
Plymouth
| 1998 - 1998 | Chrysler | Cirrus |
| 1999 - 2000 | Chrysler | Cirrus |
| 1999 - 2000 | Chrysler | Sebring |
| 1999 - 2000 | Chrysler | Sebring |
| 1998 - 2000 | Dodge | Stratus |
| 1997 - 1997 | Plymouth | Breeze |
| 1998 - 2000 | Plymouth | Breeze |
