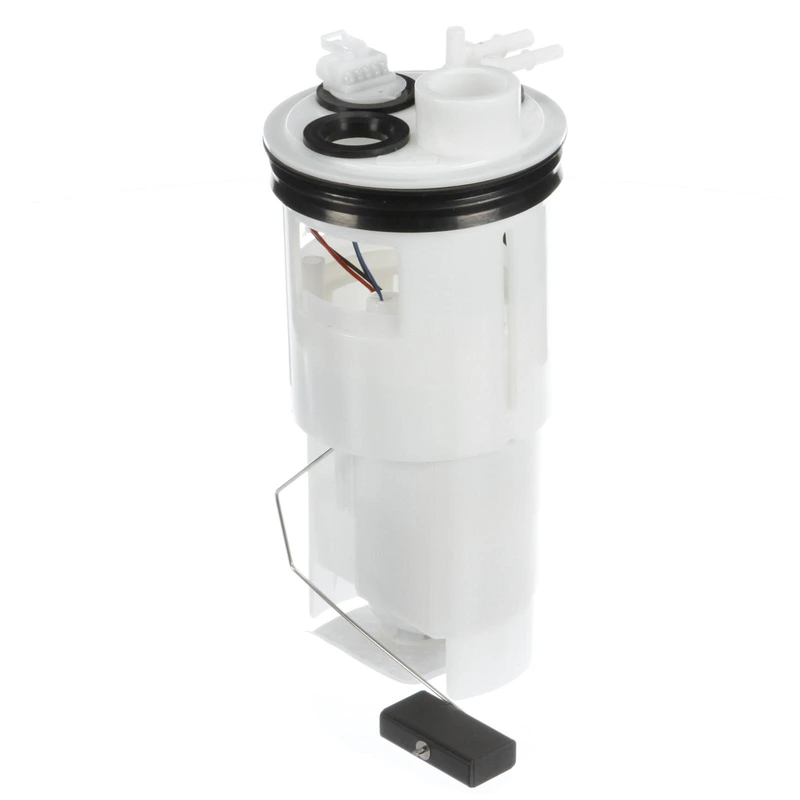

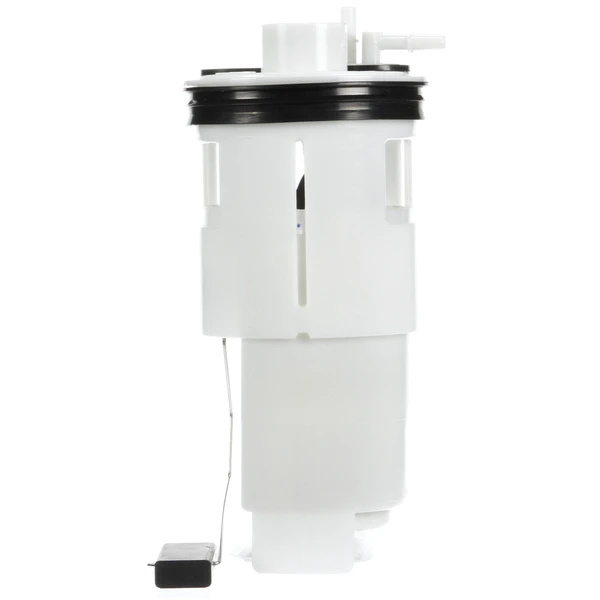

Fuel Pump Module Assembly - Delphi FG0221
Part # FG0221
Item # 1001VKCY
$220.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 13
- Average Flow Rating (gph)
- 32
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 73
- Minimum Pressure (PSI)
- 30
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 102
- Resistance Ohms Full (Ohms)
- 5
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 5
- Terminal Type
- Pin
- Voltage (2h)
- 13
- Wire Harness Included
- No
Show all
Features
About this item
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies meticulous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps feature the latest OEM technological innovations, guaranteeing exceptional pumping capability, superior pressure performance, and lower electrical power usage, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Enjoy the added benefits of free shipping and a warranty of up to 3 years when you choose a Delphi fuel pump.
● Comprehensive accessories: Alongside the fuel pump, Delphi provides a comprehensive suite of premium components, such as the fuel sending unit, filter, and regulator.
● Gauge Accuracy: With Delphi's fuel pumps, the empty float height and float retention are carefully aligned to OE standards, guaranteeing precise and accurate fuel gauge readings.
● Large Volume Reservoir: Delphi fuel pumps incorporate a large volume reservoir, ensuring better handling when fuel levels are low.
● Validated Vehicle Fit: Delphi's validation and testing protocols guarantee that their parts will fit the correct vehicle application.
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies meticulous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps feature the latest OEM technological innovations, guaranteeing exceptional pumping capability, superior pressure performance, and lower electrical power usage, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Enjoy the added benefits of free shipping and a warranty of up to 3 years when you choose a Delphi fuel pump.
● Comprehensive accessories: Alongside the fuel pump, Delphi provides a comprehensive suite of premium components, such as the fuel sending unit, filter, and regulator.
● Gauge Accuracy: With Delphi's fuel pumps, the empty float height and float retention are carefully aligned to OE standards, guaranteeing precise and accurate fuel gauge readings.
● Large Volume Reservoir: Delphi fuel pumps incorporate a large volume reservoir, ensuring better handling when fuel levels are low.
● Validated Vehicle Fit: Delphi's validation and testing protocols guarantee that their parts will fit the correct vehicle application.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A30093 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
4728729, 4728 729 - DODGE, CHRYSLER
9533067, 953-3067 - DENSO, DENSO AUTO PARTS
52017632, 5201 7632 - DODGE, CHRYSLER
E7049M - CARQUEST, AIRTEX
P74658M - CARTER
67613 - BOSCH
P74653M - CARTER
25177675 - GENERAL MOTORS
25177575 - GENERAL MOTORS
9536002, 953-6002 - DENSO AUTO PARTS
PMU165 - ACDELCO
FG0221 - DELPHI
SP7049M - SPECTRA PREMIUM
52004835, 5200 4835 - CHRYSLER
AFS0273S - EVO DRIVELINE
RE0273S - EVO DRIVELINE
DFG0221 - AUTOZONE
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (10)vehicles
All
Dodge
| 1991 - 1991 | Dodge | B150 |
| 1991 - 1991 | Dodge | B250 |
| 1991 - 1991 | Dodge | B350 |
| 1992 - 1992 | Dodge | B150 |
| 1992 - 1992 | Dodge | B150 |
| 1992 - 1992 | Dodge | B250 |
| 1992 - 1992 | Dodge | B350 |
| 1993 - 1993 | Dodge | B150 |
| 1993 - 1993 | Dodge | B250 |
| 1993 - 1993 | Dodge | B350 |
