Fuel Pump Module Assembly - Delphi FG0164
Part # FG0164
Item # 1001VGL0
$210.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 5
- Average Flow Rating (gph)
- 23
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 109
- Minimum Pressure (PSI)
- 44
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents

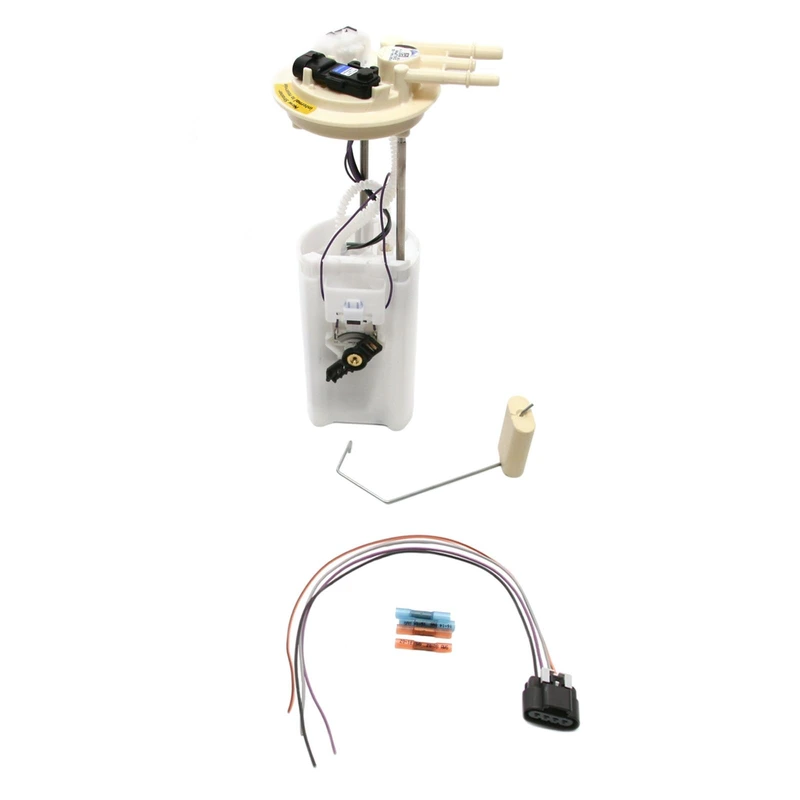

- Fuel Pump Module Assembly with Float Arm, Splices, Wire Harness, Instruction Sheet
- Pressure Sensor included
- Yes
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 80
- Resistance Ohms Full (Ohms)
- 291
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- Yes
- Wire Quantity
- 4
Show all
Features
About this item
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Choose A-Premium for your Delphi fuel pump, and you’ll enjoy the benefits of free shipping as well as a 3-year warranty.

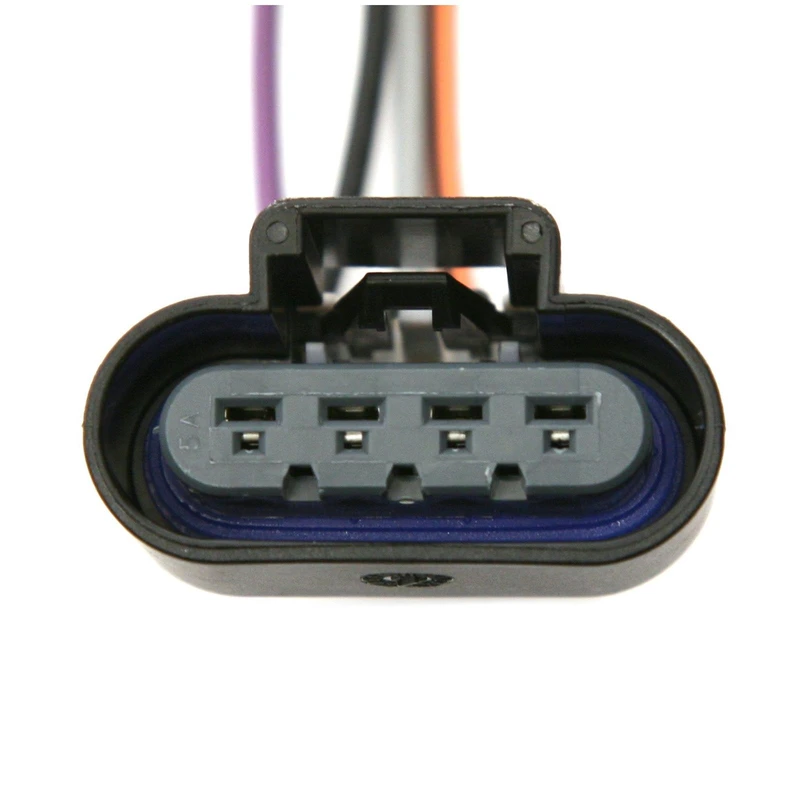

● OE-design connector: The OE-design connector and body harness of Delphi's fuel pump ensure exceptional performance.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Optimized Fuel Delivery: With Delphi fuel pumps, you'll enjoy optimized pumping efficiency, decreased energy usage, and a minimal influence on the vehicle's electrical system.
● Replacement Tips: Always verify the fuel filter's condition when replacing the fuel pump.
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Choose A-Premium for your Delphi fuel pump, and you’ll enjoy the benefits of free shipping as well as a 3-year warranty.
● OE-design connector: The OE-design connector and body harness of Delphi's fuel pump ensure exceptional performance.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Optimized Fuel Delivery: With Delphi fuel pumps, you'll enjoy optimized pumping efficiency, decreased energy usage, and a minimal influence on the vehicle's electrical system.
● Replacement Tips: Always verify the fuel filter's condition when replacing the fuel pump.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
A27043 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS, IMPORT DIRECT AIR AND FUEL
E8721M - CARQUEST, AIRTEX
9533076, 953-3076 - DENSO, DENSO AUTO PARTS
9535037, 953-5037 - DENSO, DENSO AUTO PARTS
9533077, 953-3077 - DENSO, DENSO AUTO PARTS
8253265900, 8-25326-590-0 - ISUZU, HONDA
8253265901, 82532-659-01, 8-25326-590-1 - ISUZU, HONDA
8253265880, 8-25326-588-0 - ISUZU, HONDA
RE0712S - EVO DRIVELINE
SP8027M - SPECTRA PREMIUM
67928 - BOSCH
67926 - BOSCH
FG0164 - DELPHI
P76178M - CARTER
DFG0164 - AUTOZONE
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (4)vehicles
All
Honda
Isuzu
| 2001 - 2001 | Honda | Passport |
| 2001 - 2001 | Isuzu | Rodeo |
| 2001 - 2001 | Isuzu | Rodeo Sport |
| 2002 - 2002 | Isuzu | Axiom |
