Delphi

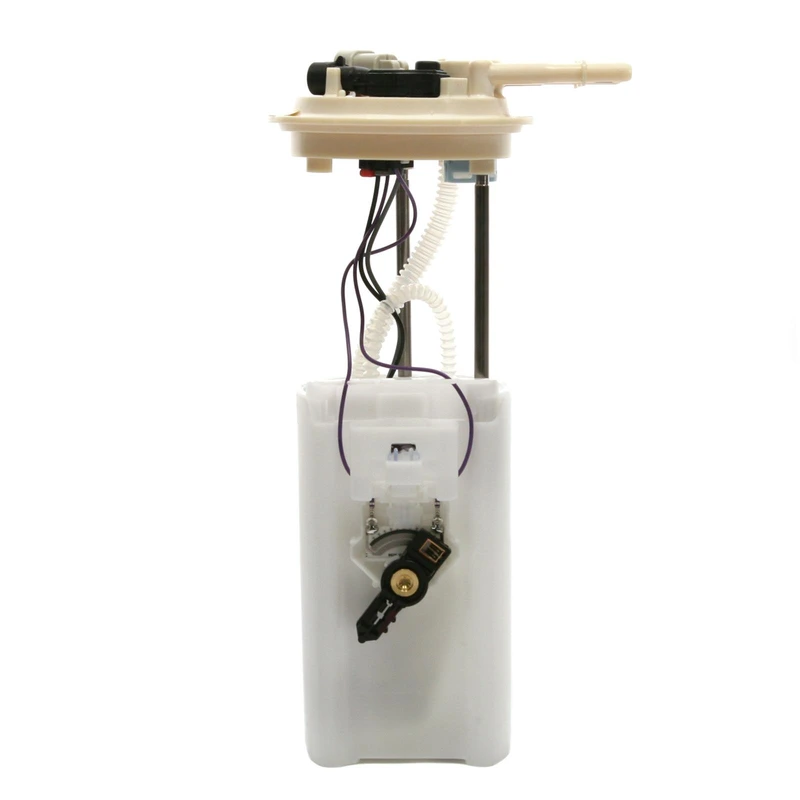

Fuel Pump Module Assembly - Delphi FG0156

Part # FG0156
Item # 1001VK6Q
$285.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Sending Unit Included
Yes
Brand
Delphi
Warranty
3-Year
Item Located
United States
Quantity
1
Sending Unit Included
Yes
Average Current Draw (A)
7
Average Flow Rating (gph)
17
Connector Gender
Female
Connector Quantity
1
Connector Shape
Oval
Fuel Filter Included
No
Fuel Type
Gas
Gasket Or Seal Included
Yes
Gasket Or Seal Material
Nitrile Rubber
Grade Type
Premium
Housing Material
Plastic
In Tank or External
In Tank
Inlet Type
Strainer
Installation Warnings
No
Internal Or External Strainer
External
Lock Ring Included
No
Maximum Pressure (PSI)
109
Minimum Pressure (PSI)
52
Mounting Hardware Included
No
Negative Ground
No
Outlet Outside Diameter (in)
0.375
Outlet Quantity
3
Outlet Type
Quick Connect
Package Contents

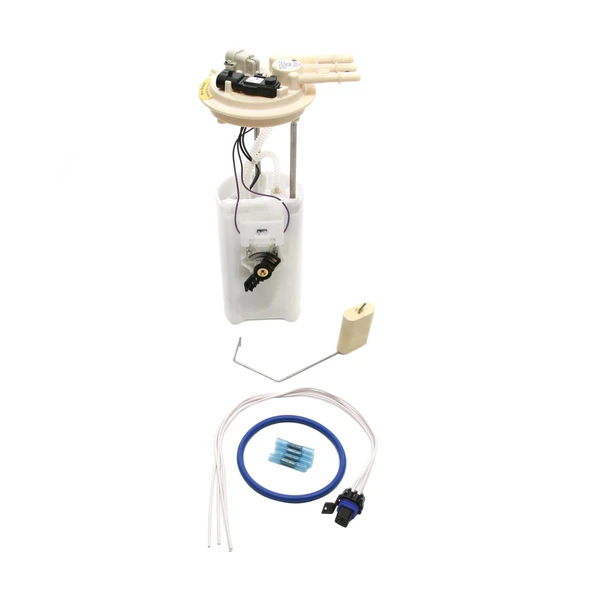

Fuel Pump Module Assembly with Float Arm, Seal, Splices, Wire Harness, Instruction Sheet
Pressure Sensor included
Yes
Pump Design
Turbine
Pump Type
Electric
Regulator Included
No
Resistance Ohms Empty (Ohms)
40
Resistance Ohms Full (Ohms)
250
Strainer Included
Yes
Terminal Gender
Male
Terminal Quantity
4
Terminal Type
Pin
Voltage (2h)
13
Wire Harness Included
Yes
Wire Quantity
4
Show all
About this item
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A-Premium is dedicated to providing top-notch service, allowing customers to enjoy every Delphi fuel pump with free shipping and a 3-year warranty.
● OE-design Connector: The OE-design connector and body harness in Delphi fuel pumps provide superior performance capabilities.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Comprehensive Late-Model Coverage: Delphi fuel pumps cater to a wide range of late-model vehicles, allowing new car owners to enjoy worry-free operation without breaking the bank.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
19331288 - GENERAL MOTORS, OLDSMOBILE, PONTIAC, BUICK
19180107 - GENERAL MOTORS, OLDSMOBILE, PONTIAC, BUICK
A33004 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
E3537M - CARQUEST, MASTER PARTS DIVISION, AIRTEX
9535003, 953-5003 - CARQUEST, DENSO AUTO PARTS
9530033, 953-0033 - DENSO, DENSO AUTO PARTS
DFG0156 - AUTOZONE, DELPHI
25325702 - GENERAL MOTORS
25323833 - GENERAL MOTORS
MU71 - ACDELCO
67479 - BOSCH
67319 - BOSCH
EFP871M - KEM
25174048 - GENERAL MOTORS
P74792M - CARTER
SP6177M - SPECTRA PREMIUM
MU232 - ACDELCO
FG0156 - DELPHI
MU228 - ACDELCO
1AMFP00034 - MAGNETI MARELLI
MU1727 - ACDELCO
SP3537M - SPECTRA PREMIUM
67473 - BOSCH

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (7)vehicles
All
Buick
Oldsmobile
Pontiac
1998 - 1999BuickCentury
1998 - 1999BuickRegal
1999 - 1999BuickRegal
1998 - 2000OldsmobileIntrigue
1998 - 2000PontiacGrand Prix
1998 - 2000PontiacGrand Prix
1998 - 2000PontiacGrand Prix
