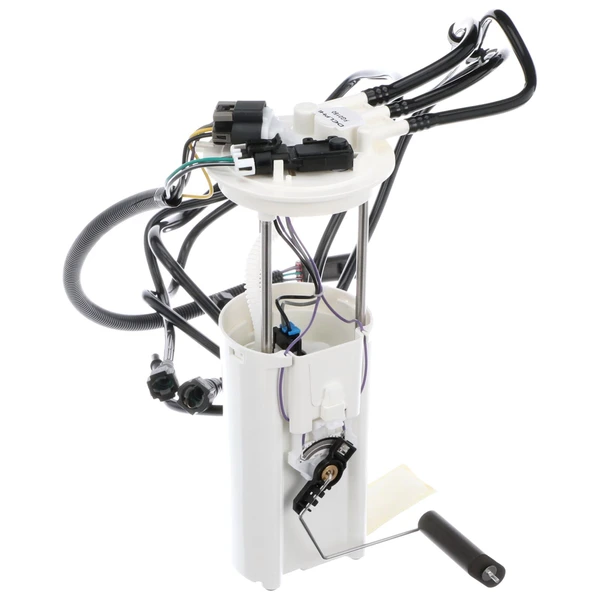

Fuel Pump Module Assembly - Delphi FG0150
Part # FG0150
Item # 1001VH92
$277.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 7
- Average Flow Rating (gph)
- 18
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Square
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 109
- Minimum Pressure (PSI)
- 45
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 3
- Outlet Type
- Female Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- Yes
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 40
- Resistance Ohms Full (Ohms)
- 250
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 6
- Terminal Type
- Pin
- Voltage (2h)
- 13
- Wire Harness Included
- No
Show all
Features
About this item
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A-Premium is dedicated to providing top-notch service, allowing customers to enjoy every Delphi fuel pump with free shipping and a 3-year warranty.
● OE-design Connector: The OE-design connector and body harness in Delphi fuel pumps provide superior performance capabilities.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Replacement Tips: Inspecting the fuel filter is essential when installing a new fuel pump.
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A-Premium is dedicated to providing top-notch service, allowing customers to enjoy every Delphi fuel pump with free shipping and a 3-year warranty.
● OE-design Connector: The OE-design connector and body harness in Delphi fuel pumps provide superior performance capabilities.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Replacement Tips: Inspecting the fuel filter is essential when installing a new fuel pump.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E3941M - CARQUEST, MASTER PARTS DIVISION, AIRTEX
19180098 - GENERAL MOTORS, CHEVROLET
E3948M - MASTER PARTS DIVISION, AIRTEX
9530014, 953-0014 - DENSO, DENSO AUTO PARTS
25323841 - GENERAL MOTORS
P74767M - CARTER
67348 - BOSCH
FFG0150 - AUTOZONE
P74753M - CARTER
67347 - BOSCH
25323829 - GENERAL MOTORS
9535079, 953-5079 - DENSO AUTO PARTS
SP6229M - SPECTRA PREMIUM
P76795M - CARTER
25312608 - GENERAL MOTORS
A33167 - PRECISION FUEL
67353 - BOSCH
MU1788 - ACDELCO
EFP844M - KEM
MU144 - ACDELCO
FG0150 - DELPHI
MU229 - ACDELCO
43919, 43-919 - ACDELCO
1AMFP00068 - MAGNETI MARELLI
RE0252S - EVO DRIVELINE
AFS0252S - EVO DRIVELINE
25166888 - GENERAL MOTORS
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (8)vehicles
All
Chevrolet
| 1997 - 1997 | Chevrolet | Monte Carlo |
| 1997 - 1998 | Chevrolet | Lumina |
| 1998 - 1998 | Chevrolet | Lumina |
| 1998 - 1999 | Chevrolet | Monte Carlo |
| 1999 - 1999 | Chevrolet | Lumina |
| 1999 - 1999 | Chevrolet | Lumina |
| 1999 - 1999 | Chevrolet | Monte Carlo |
| 1999 - 1999 | Chevrolet | Monte Carlo |
