Fuel Pump Module Assembly - Delphi FG0146
Part # FG0146
Item # 1001VCYY
$291.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 7
- Average Flow Rating (gph)
- 17

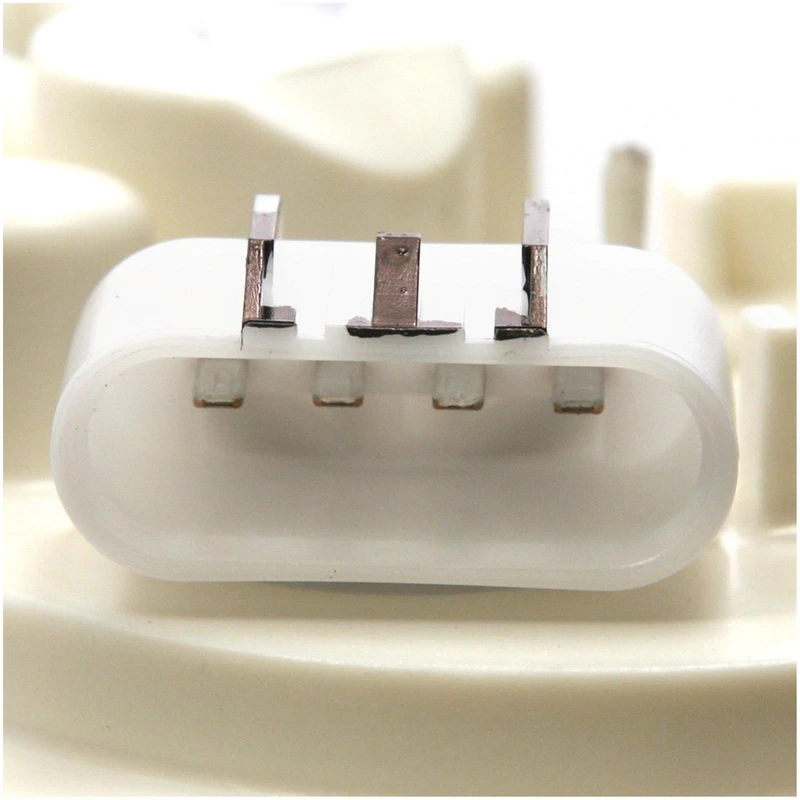

- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 109
- Minimum Pressure (PSI)
- 52
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents

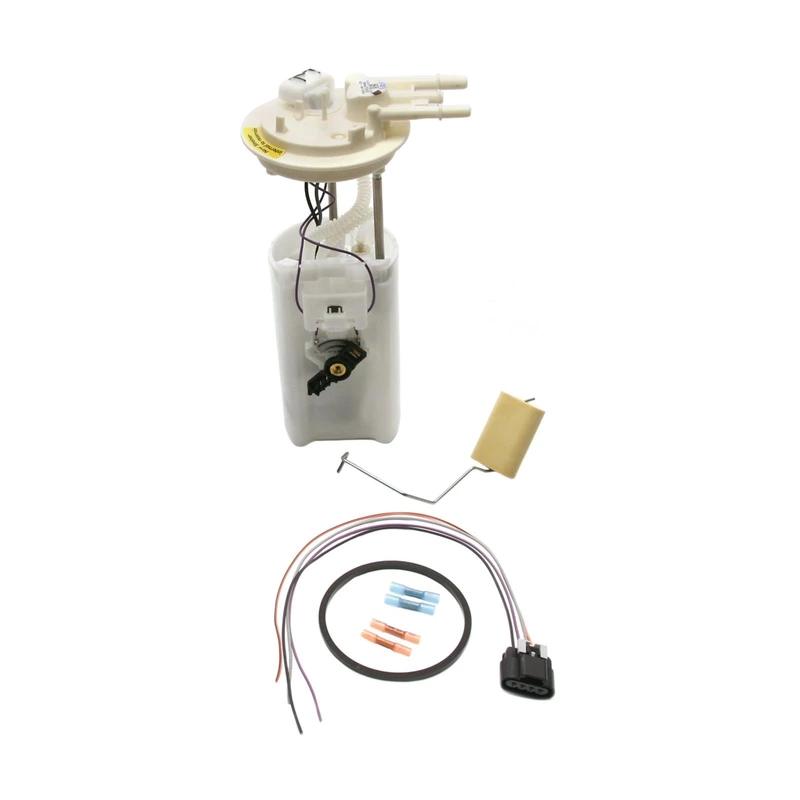

- Fuel Pump Module Assembly with Float Arm, Seal, Splices, Wire Harness, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 0.1
- Resistance Ohms Full (Ohms)
- 90
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 13
- Wire Harness Included
- Yes
- Wire Quantity
- 4
Show all
Features
About this item
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Receive your Delphi fuel pump with free shipping and enjoy the assurance of up to 3 years of warranty service.
● Comprehensive accessories: Delphi ensures a comprehensive fuel pump solution by including premium components like the fuel sending unit, filter, and regulator.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Validated Vehicle Fit: Delphi's parts are thoroughly validated and matched to the correct vehicle to ensure a precise fit.
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Receive your Delphi fuel pump with free shipping and enjoy the assurance of up to 3 years of warranty service.
● Comprehensive accessories: Delphi ensures a comprehensive fuel pump solution by including premium components like the fuel sending unit, filter, and regulator.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Validated Vehicle Fit: Delphi's parts are thoroughly validated and matched to the correct vehicle to ensure a precise fit.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
P456M - PIERCE, NIEHOFF, BORGWARNER, BWD
P455M - PIERCE, NIEHOFF, BORGWARNER, BWD
E3976M - CARQUEST, MASTER PARTS DIVISION, AIRTEX
A27045 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
9530026, 953-0026 - DENSO, DENSO AUTO PARTS
MU1531 - ACDELCO
EFP869M - KEM
MU1535 - ACDELCO
E3977M - MASTER PARTS DIVISION
P74791M - CARTER
9535077, 953-5077 - DENSO AUTO PARTS
MU2 - ACDELCO
MU67 - ACDELCO
MU69 - ACDELCO
DFG0146 - AUTOZONE
AFS0463S - EVO DRIVELINE
67482 - BOSCH
RE0463S - EVO DRIVELINE
25174013 - GENERAL MOTORS
25174015 - GENERAL MOTORS
25323818 - GENERAL MOTORS
19180121 - GENERAL MOTORS
19180120 - GENERAL MOTORS
25164191 - GENERAL MOTORS
MU222 - ACDELCO
P74790M - CARTER
19122093 - GENERAL MOTORS
FG0146 - DELPHI
25381734 - GENERAL MOTORS
SP3976M - SPECTRA PREMIUM
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (3)vehicles
All
Chevrolet
Oldsmobile
Pontiac
| 1997 - 1997 | Chevrolet | Venture |
| 1997 - 1997 | Oldsmobile | Silhouette |
| 1997 - 1997 | Pontiac | Trans Sport |
