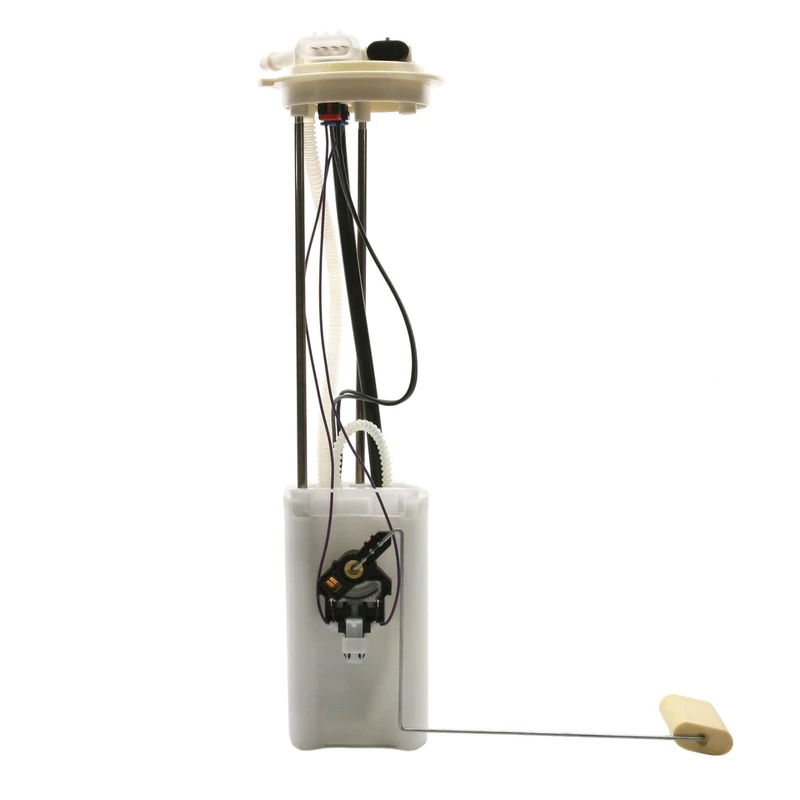

Fuel Pump Module Assembly - Delphi FG0122
Part # FG0122
Item # 1001VCSK
$237.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 24
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 109
- Minimum Pressure (PSI)
- 62
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 3
- Outlet Type
- Quick Connect
- Package Contents

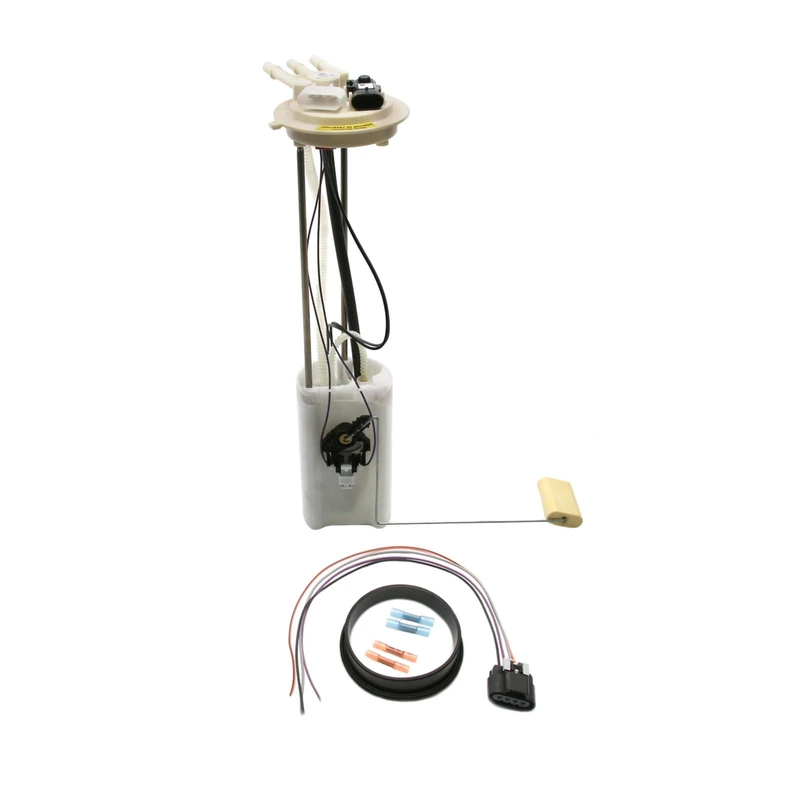

- Fuel Pump Module Assembly with Float Arm, Seal, Splices, Wire Harness, Instruction Sheet
- Pressure Sensor included
- Yes
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 40
- Resistance Ohms Full (Ohms)
- 250
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 12
- Wire Harness Included
- Yes
- Wire Quantity
- 4
Show all
Features
About this item
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Committed to exceptional service, A-Premium ensures that every Delphi fuel pump comes with free shipping and a 3-year warranty.
● OE-design connector: Delphi's fuel pump is equipped with an OE-design connector and body harness that deliver unparalleled performance.
● Gauge Accuracy: With Delphi's fuel pumps, the empty float height and float retention are carefully aligned to OE standards, guaranteeing precise and accurate fuel gauge readings.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Validated Vehicle Fit: Delphi's parts are subjected to thorough validation and testing to ensure a seamless vehicle fit.
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Committed to exceptional service, A-Premium ensures that every Delphi fuel pump comes with free shipping and a 3-year warranty.
● OE-design connector: Delphi's fuel pump is equipped with an OE-design connector and body harness that deliver unparalleled performance.
● Gauge Accuracy: With Delphi's fuel pumps, the empty float height and float retention are carefully aligned to OE standards, guaranteeing precise and accurate fuel gauge readings.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Validated Vehicle Fit: Delphi's parts are subjected to thorough validation and testing to ensure a seamless vehicle fit.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E3500M - CARQUEST, MASTER PARTS DIVISION, PUROLATOR, ULTRAPOWER AUTO PARTS, AIRTEX, FACET
E3599M - CARQUEST, MASTER PARTS DIVISION, AIRTEX
19153719 - GENERAL MOTORS, GMC, CHEVROLET
E3522M - CARQUEST, AIRTEX
A30255 - PRECISION FUEL PUMPS, PRECISION FUEL
19121635 - GENERAL MOTORS
SP6690M - SPECTRA PREMIUM
MU1059 - ACDELCO
MU197 - ACDELCO
67305, 67 305 - BOSCH
P74932M - CARTER
MU1621 - ACDELCO
EFG0122 - AUTOZONE
25384291 - GENERAL MOTORS
67429, 67 429 - BOSCH
MU1060 - ACDELCO
19332083 - GENERAL MOTORS
9535070, 953-5070 - DENSO AUTO PARTS
FG0122 - DELPHI
25344808 - GENERAL MOTORS
SP6612M - SPECTRA PREMIUM
MU1515 - ACDELCO
25319806 - GENERAL MOTORS
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (10)vehicles
All
Chevrolet
GMC
| 2001 - 2003 | Chevrolet | Silverado 3500 |
| 2001 - 2003 | Chevrolet | Silverado 3500 |
| 2001 - 2003 | Chevrolet | Silverado 3500 |
| 2001 - 2003 | Chevrolet | Silverado 3500 |
| 2001 - 2002 | GMC | Sierra 3500 |
| 2001 - 2002 | GMC | Sierra 3500 |
| 2001 - 2003 | GMC | Sierra 3500 |
| 2001 - 2003 | GMC | Sierra 3500 |
| 2002 - 2003 | GMC | Sierra 3500 |
| 2002 - 2003 | GMC | Sierra 3500 |
