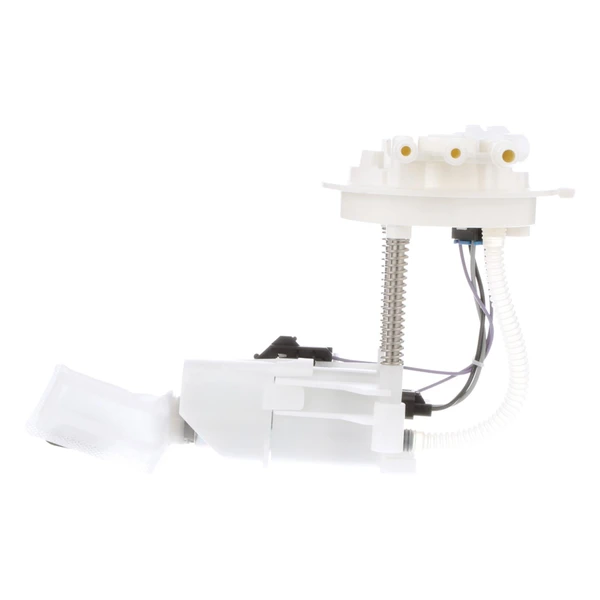

Fuel Pump Module Assembly - Delphi FG0119
Part # FG0119
Item # 1001VH0V
$226.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 48
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 109
- Minimum Pressure (PSI)
- 1
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 1
- Outlet Type
- Quick Connect
- Package Contents

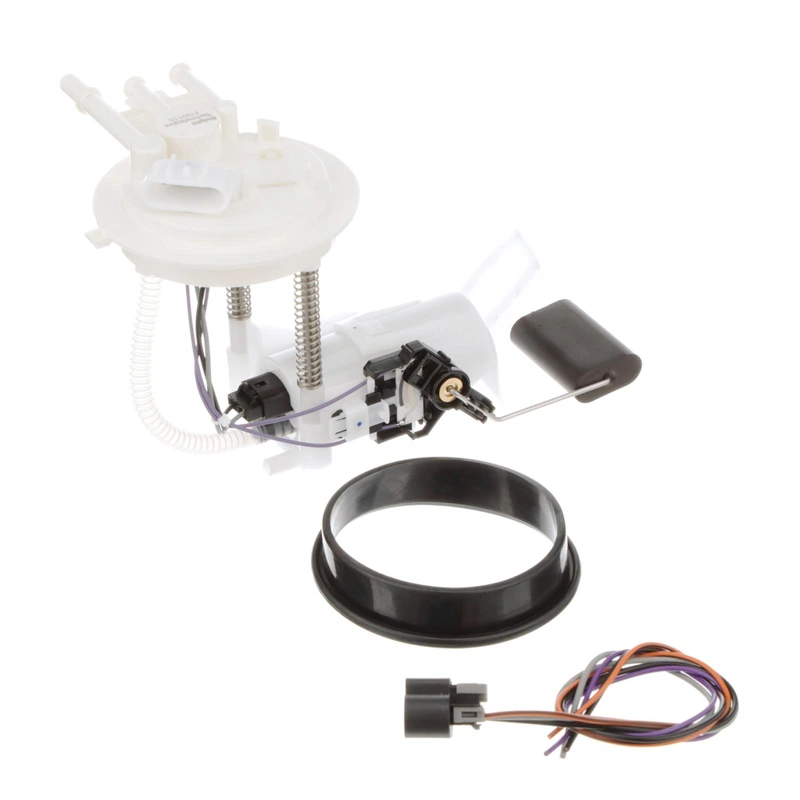

- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 40
- Resistance Ohms Full (Ohms)
- 250
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Pin
- Voltage (2h)
- 12
- Wire Harness Included
- Yes
- Wire Quantity
- 4
Show all
Features
About this item
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps come with the assurance of free shipping and a warranty of up to 3 years for your convenience and satisfaction.
● Comprehensive accessories: The Delphi fuel pump is supported by a carefully curated collection of premium accessories, from the fuel sending unit to the filter and regulator.
● Gauge Accuracy: Delphi's fuel pumps are manufactured to precisely match the OE specifications for empty float height and float retention, ensuring your fuel gauge functions reliably.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Validated Vehicle Fit: Delphi's parts are meticulously validated, tested, and tailored to the specific vehicle application.
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps come with the assurance of free shipping and a warranty of up to 3 years for your convenience and satisfaction.
● Comprehensive accessories: The Delphi fuel pump is supported by a carefully curated collection of premium accessories, from the fuel sending unit to the filter and regulator.
● Gauge Accuracy: Delphi's fuel pumps are manufactured to precisely match the OE specifications for empty float height and float retention, ensuring your fuel gauge functions reliably.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Validated Vehicle Fit: Delphi's parts are meticulously validated, tested, and tailored to the specific vehicle application.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E3513M - CARQUEST, MASTER PARTS DIVISION, AIRTEX
19179478 - GENERAL MOTORS, GMC, CHEVROLET
9535067, 953-5067 - DENSO, DENSO AUTO PARTS
A27098 - PRECISION FUEL PUMPS, PRECISION FUEL
P74930M - CARTER
MU185 - ACDELCO
MU285 - ACDELCO
MU287 - ACDELCO
DFG0119 - AUTOZONE
25336147 - GENERAL MOTORS
MU1803 - ACDELCO
RE0395S - EVO DRIVELINE
FG0119 - DELPHI
25335925 - GENERAL MOTORS
MU1614 - ACDELCO
SP3513M - SPECTRA PREMIUM
25318805 - GENERAL MOTORS
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Chevrolet
GMC
| 2000 - 2001 | Chevrolet | Suburban 2500 |
| 2000 - 2001 | GMC | Yukon XL 2500 |
