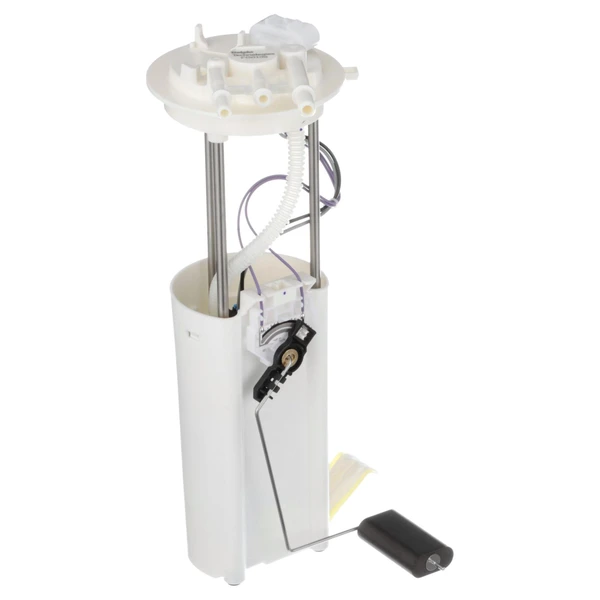

Fuel Pump Module Assembly - Delphi FG0109
Part # FG0109
Item # 1001VH8E
$234.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 24
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 109
- Minimum Pressure (PSI)
- 62
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Splices, Wire Harness, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 40
- Resistance Ohms Full (Ohms)
- 250
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 13
- Wire Harness Included
- Yes
- Wire Quantity
- 4
Show all
Features
About this item
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: With free shipping and a warranty of up to 3 years, your Delphi fuel pump purchase is covered for your convenience.
● Replacement Tips: Inspecting the fuel filter is essential when installing a new fuel pump.
● Gauge Accuracy: Delphi's fuel pumps are engineered to precisely replicate the OE specifications for empty float height and float retention, providing reliable fuel gauge accuracy.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Comprehensive Late-Model Coverage: With wide-ranging compatibility, Delphi fuel pumps are perfect for new car owners seeking reliable parts at an affordable price.
As a renowned OEM manufacturer with a century of expertise, Delphi adheres to strict OEM standards in producing its fuel pumps. Each aftermarket replacement pump integrates the latest OEM technological advancements, ensuring outstanding pumping ability, excellent pressure performance, and reduced electrical power consumption, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: With free shipping and a warranty of up to 3 years, your Delphi fuel pump purchase is covered for your convenience.
● Replacement Tips: Inspecting the fuel filter is essential when installing a new fuel pump.
● Gauge Accuracy: Delphi's fuel pumps are engineered to precisely replicate the OE specifications for empty float height and float retention, providing reliable fuel gauge accuracy.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Comprehensive Late-Model Coverage: With wide-ranging compatibility, Delphi fuel pumps are perfect for new car owners seeking reliable parts at an affordable price.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E3996M - CARQUEST, MASTER PARTS DIVISION, AIRTEX
19331245 - GENERAL MOTORS, GMC, CHEVROLET
9535062, 953-5062 - CARQUEST, DENSO, DENSO AUTO PARTS
19177236 - GENERAL MOTORS, GMC, CHEVROLET
67364 - BOSCH
MU1750 - ACDELCO
MU175 - ACDELCO
MU160 - ACDELCO
SP6175M - SPECTRA PREMIUM
EFG0109 - AUTOZONE
19369890 - GENERAL MOTORS
P74927M - CARTER
FG0109 - DELPHI
RE0484S - EVO DRIVELINE
AFS0484S - EVO DRIVELINE
25317747 - GENERAL MOTORS
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (5)vehicles
All
Chevrolet
GMC
| 1998 - 2000 | Chevrolet | Express 3500 |
| 1998 - 2000 | Chevrolet | Express 3500 |
| 1998 - 2000 | GMC | Savana 3500 |
| 1998 - 2000 | GMC | Savana 3500 |
| 2000 - 2000 | GMC | Savana 3500 |
