Fuel Pump Module Assembly - Delphi FG0096
Part # FG0096
Item # 1001VECV
$268.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 7
- Average Flow Rating (gph)
- 21

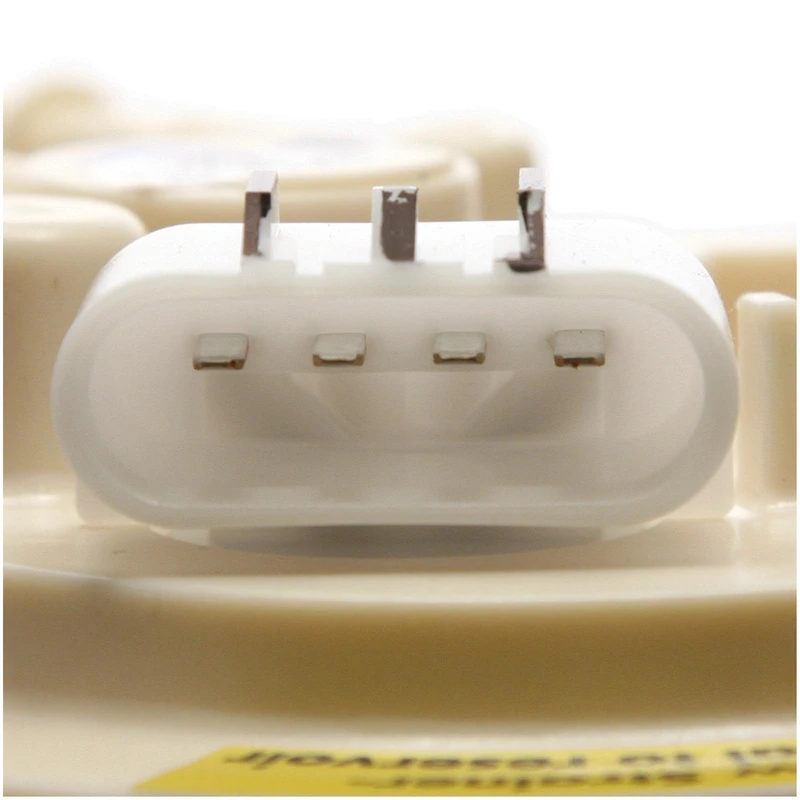

- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 109
- Minimum Pressure (PSI)
- 51
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 3
- Outlet Type
- Quick Connect
- Package Contents

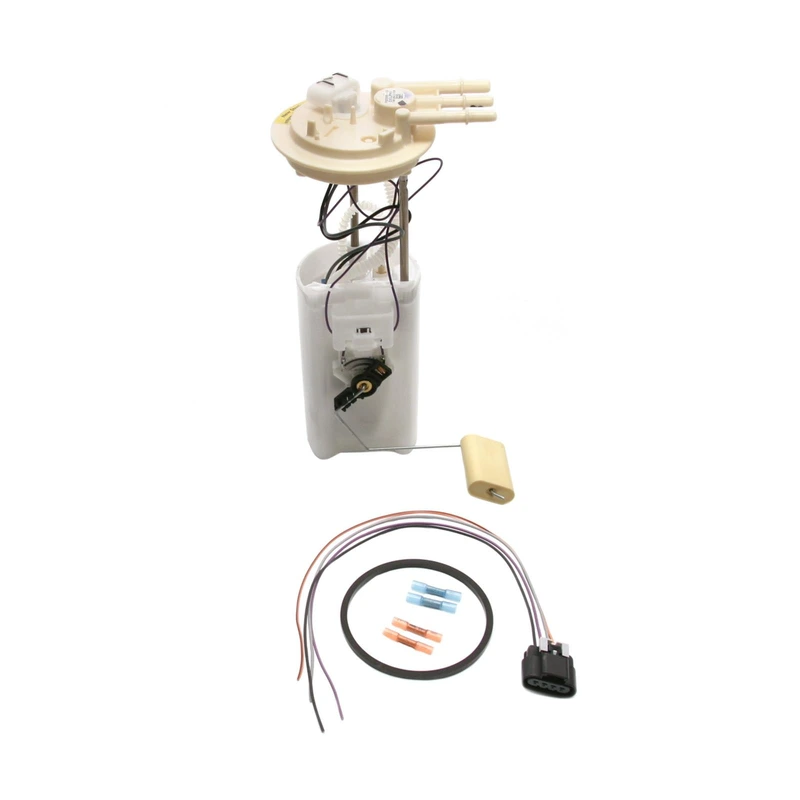

- Fuel Pump Module Assembly with Float Arm, Seal, Splices, Wire Harness, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 40
- Resistance Ohms Full (Ohms)
- 250
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 13
- Wire Harness Included
- Yes
- Wire Quantity
- 4
Show all
Features
About this item
Delphi, a globally renowned OEM manufacturer with a storied history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Buying a Delphi fuel pump at A-Premium comes with perks like free shipping and a comprehensive 3-year warranty.
● OE-design Connector: Delphi fuel pumps feature an OE-design connector and body harness, ensuring exceptional performance.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
Optimized Fuel Delivery:！ With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Comprehensive Late-Model Coverage: Covering many late-model applications, Delphi fuel pumps ensure reliable performance.
Delphi, a globally renowned OEM manufacturer with a storied history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Buying a Delphi fuel pump at A-Premium comes with perks like free shipping and a comprehensive 3-year warranty.
● OE-design Connector: Delphi fuel pumps feature an OE-design connector and body harness, ensuring exceptional performance.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
Optimized Fuel Delivery:！ With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Comprehensive Late-Model Coverage: Covering many late-model applications, Delphi fuel pumps ensure reliable performance.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E3935M - CARQUEST, MASTER PARTS DIVISION, AIRTEX
A27031 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
19153726 - CADILLAC, GENERAL MOTORS
9535053, 953-5053 - DENSO, DENSO AUTO PARTS
P74777M - CARTER
EFP856M - KEM
67342 - BOSCH
MU1624 - ACDELCO
RE0422S - EVO DRIVELINE
FG0096 - DELPHI
MU156 - ACDELCO
25363935 - GENERAL MOTORS
19332090 - GENERAL MOTORS
DFG0096 - AUTOZONE
SP3935M - SPECTRA PREMIUM
25314609 - GENERAL MOTORS
AFS0422S - EVO DRIVELINE
1AMFP00181 - MAGNETI MARELLI
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (3)vehicles
All
Cadillac
| 1997 - 1997 | Cadillac | DeVille |
| 1997 - 1997 | Cadillac | Eldorado |
| 1997 - 1997 | Cadillac | Seville |
