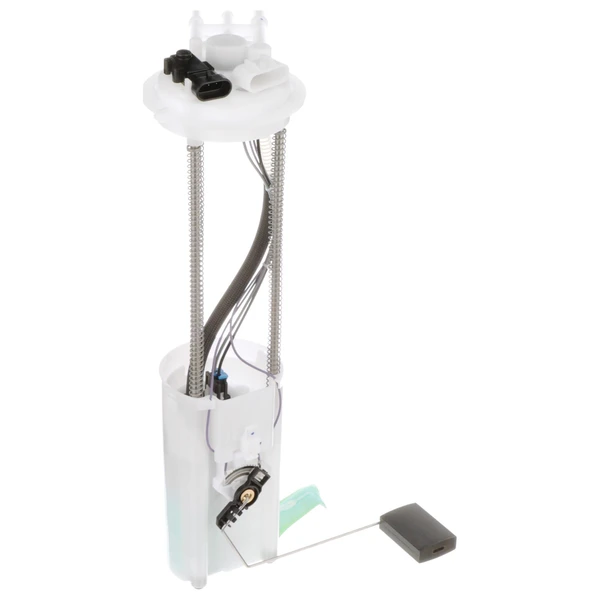

Fuel Pump Module Assembly - Delphi FG0094
Part # FG0094
Item # 1001VE64
$299.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 24
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 109
- Minimum Pressure (PSI)
- 62
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 3
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Splices, Wire Harness, Instruction Sheet
- Pressure Sensor included
- Yes
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 40
- Resistance Ohms Full (Ohms)
- 250
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 13
- Wire Harness Included
- Yes
- Wire Quantity
- 4
Show all
Features
About this item
Delphi, a globally renowned OEM manufacturer with a storied history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps come with the assurance of free shipping and a warranty of up to 3 years for your convenience and satisfaction.
● OE-design Connector: Delphi fuel pumps feature an OE-design connector and body harness, ensuring exceptional performance.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Validated Vehicle Fit: Delphi's extensive validation and testing processes ensure their parts are a perfect match for the target vehicle.
Delphi, a globally renowned OEM manufacturer with a storied history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps come with the assurance of free shipping and a warranty of up to 3 years for your convenience and satisfaction.
● OE-design Connector: Delphi fuel pumps feature an OE-design connector and body harness, ensuring exceptional performance.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Validated Vehicle Fit: Delphi's extensive validation and testing processes ensure their parts are a perfect match for the target vehicle.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
19332100 - GENERAL MOTORS, GMC, CHEVROLET
19177230 - GENERAL MOTORS, GMC, CHEVROLET
A30111 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
19177242 - GENERAL MOTORS, GMC, CHEVROLET
9535051, 953-5051 - DENSO, DENSO AUTO PARTS
9530037, 953-0037 - DENSO, DENSO AUTO PARTS
E3956M - MASTER PARTS DIVISION, AIRTEX
A30216 - PRECISION FUEL PUMPS, PRECISION FUEL
19332101 - GENERAL MOTORS
MU153 - ACDELCO
MU1753 - ACDELCO
E3957M - AIRTEX
MU154 - ACDELCO
MU155 - ACDELCO
9535052, 953-5052 - DENSO AUTO PARTS
9535050, 953-5050 - DENSO AUTO PARTS
67381, 67 381 - BOSCH
SP3957M - SPECTRA PREMIUM
67360 - BOSCH
19369942 - GENERAL MOTORS
EFG0094 - AUTOZONE
AFS0439S - EVO DRIVELINE
P74774M - CARTER
MU1745 - ACDELCO
P74776M - CARTER
RE0439S - EVO DRIVELINE
FG0094 - DELPHI
SP6153M - SPECTRA PREMIUM
25314339 - GENERAL MOTORS
25314337 - GENERAL MOTORS
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (33)vehicles
All
Chevrolet
GMC
| 1998 - 1999 | Chevrolet | C3500HD |
| 1998 - 1999 | Chevrolet | K3500 |
| 1998 - 1999 | Chevrolet | K3500 |
| 2000 - 2000 | Chevrolet | C3500 |
| 2000 - 2000 | Chevrolet | C3500 |
| 2000 - 2000 | Chevrolet | C3500 |
| 2000 - 2000 | Chevrolet | C3500 |
| 2000 - 2000 | Chevrolet | C3500HD |
| 2000 - 2000 | Chevrolet | C3500HD |
| 2000 - 2000 | Chevrolet | K3500 |
| 2000 - 2000 | Chevrolet | K3500 |
| 2000 - 2000 | Chevrolet | K3500 |
| 2000 - 2000 | Chevrolet | K3500 |
| 2001 - 2002 | Chevrolet | C3500HD |
| 1998 - 1999 | GMC | C3500HD |
| 1998 - 1999 | GMC | K3500 |
| 1998 - 1999 | GMC | K3500 |
| 1999 - 1999 | GMC | C3500HD |
| 2000 - 2000 | GMC | C3500 |
| 2000 - 2000 | GMC | C3500 |
