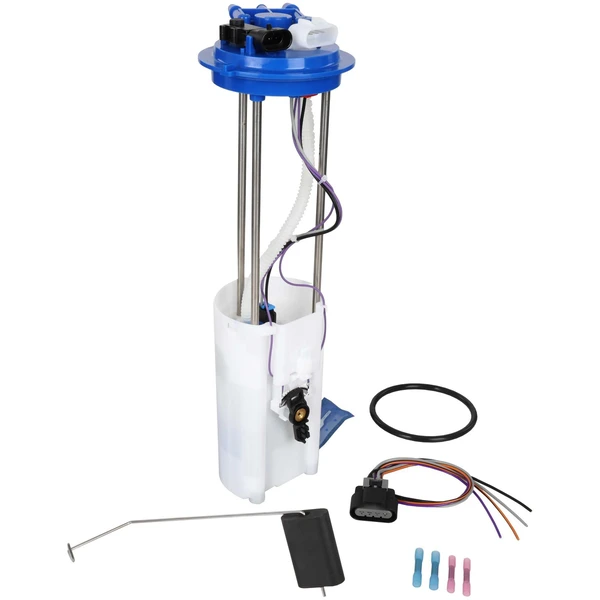

Fuel Pump Module Assembly - Delphi FG0086
Part # FG0086
Item # 1001VE09
$233.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 32
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 109
- Minimum Pressure (PSI)
- 62
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 3
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Splices, Wire Harness, Instruction Sheet
- Pressure Sensor included
- Yes
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 40
- Resistance Ohms Full (Ohms)
- 250
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Pin
- Voltage (2h)
- 13
- Wire Harness Included
- Yes
- Wire Quantity
- 4
Show all
Features
About this item
Delphi, a globally renowned OEM manufacturer with a storied history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: A-Premium offers free shipping and a 3-year warranty when you buy a Delphi fuel pump, ensuring a great purchasing experience.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Validated Vehicle Fit: Delphi's extensive validation and testing processes ensure their parts are a perfect match for the target vehicle.
Delphi, a globally renowned OEM manufacturer with a storied history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: A-Premium offers free shipping and a 3-year warranty when you buy a Delphi fuel pump, ensuring a great purchasing experience.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● Gauge Accuracy: Delphi's fuel pumps maintain proper float height and retention, resulting in reliable fuel gauge accuracy.
● Optimized Fuel Delivery: Delphi fuel pumps provide better pumping efficiency with minimal impact on the vehicle’s electrical system.
● Validated Vehicle Fit: Delphi's extensive validation and testing processes ensure their parts are a perfect match for the target vehicle.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E3947M - CARQUEST, MASTER PARTS DIVISION, PUROLATOR, AIRTEX, FACET
MPA27001 - MASTERPRO FUEL PUMPS, POWER TORQUE, MASTERPRO, MASTERPRO IGNITION
A30027 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
19331272 - GENERAL MOTORS, GMC, CHEVROLET
25314321 - GENERAL MOTORS, GMC, CHEVROLET
A27001, A 27001 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
19177226 - GENERAL MOTORS, GMC, CHEVROLET
EFG0086 - AUTOZONE, DELPHI
25314323 - GENERAL MOTORS, CHEVROLET
A30216 - PRECISION FUEL PUMPS, PRECISION FUEL
9535043, 953-5043 - CARQUEST, DENSO AUTO PARTS
9530009, 953-0009 - DENSO, DENSO AUTO PARTS
RE0523S - EVO DRIVELINE
P74757M - CARTER
D5341005 - TRUGRADE
FG0086 - DELPHI
67381, 67 381 - BOSCH
SP3957M - SPECTRA PREMIUM
2630318 - DORMAN
19369943 - GENERAL MOTORS
P75055M - CARTER
MU1745 - ACDELCO
MU147 - ACDELCO
MU146 - ACDELCO
M319676 - CARQUEST
SP461M - SPECTRA PREMIUM
1AMFP00041 - MAGNETI MARELLI
AFS0523S - EVO DRIVELINE
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (97)vehicles
All
Chevrolet
GMC
| 1997 - 1998 | Chevrolet | C1500 |
| 1997 - 1998 | Chevrolet | K1500 |
| 1998 - 1998 | Chevrolet | C2500 |
| 1998 - 1998 | Chevrolet | K1500 |
| 1998 - 1998 | Chevrolet | K1500 |
| 1998 - 1998 | Chevrolet | K2500 |
| 1998 - 1999 | Chevrolet | C1500 |
| 1998 - 1999 | Chevrolet | C1500 |
| 1998 - 1999 | Chevrolet | C3500 |
| 1998 - 1999 | Chevrolet | C3500 |
| 1998 - 1999 | Chevrolet | C3500HD |
| 1998 - 1999 | Chevrolet | K3500 |
| 1998 - 1999 | Chevrolet | K3500 |
| 1998 - 2000 | Chevrolet | C2500 |
| 1998 - 2000 | Chevrolet | C2500 |
| 1998 - 2000 | Chevrolet | K2500 |
| 1998 - 2000 | Chevrolet | K2500 |
| 1999 - 1999 | Chevrolet | K1500 |
| 2000 - 2000 | Chevrolet | C3500 |
| 2000 - 2000 | Chevrolet | C3500 |
