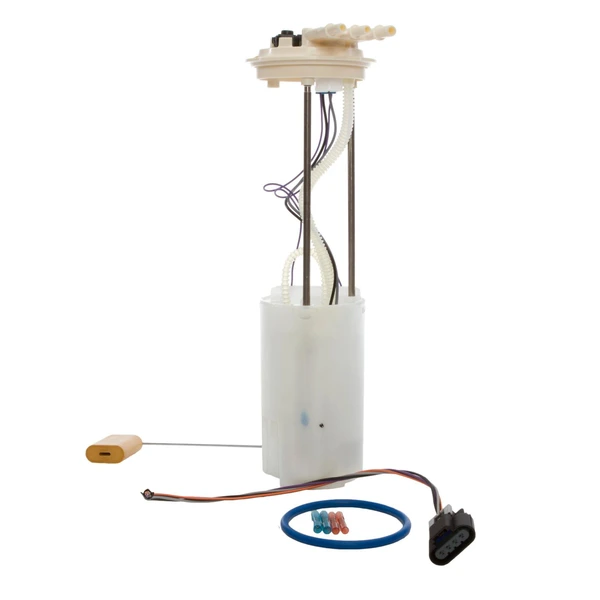

Fuel Pump Module Assembly - Delphi FG0070
Part # FG0070
Item # 1001VC74
$311.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 29
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 109
- Minimum Pressure (PSI)
- 62
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 3
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Splices, Wire Harness, Instruction Sheet
- Pressure Sensor included
- Yes
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 40
- Resistance Ohms Full (Ohms)
- 250
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 13
- Wire Harness Included
- Yes
- Wire Quantity
- 4
Show all
Features
About this item
Delphi, a globally renowned OEM manufacturer with a storied history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps available at A-Premium come with free shipping and a generous 3-year warranty.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● Large Volume Reservoir: Delphi fuel pumps incorporate a large volume reservoir, ensuring better handling when fuel levels are low.
● Replacement Tips: Always check the fuel filter as part of the fuel pump replacement process.
Delphi, a globally renowned OEM manufacturer with a storied history of professional expertise, applies strict OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Delphi fuel pumps available at A-Premium come with free shipping and a generous 3-year warranty.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● Large Volume Reservoir: Delphi fuel pumps incorporate a large volume reservoir, ensuring better handling when fuel levels are low.
● Replacement Tips: Always check the fuel filter as part of the fuel pump replacement process.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E3952M - CARQUEST, MASTER PARTS DIVISION, PUROLATOR, AIRTEX, FACET
MPA30027 - MASTERPRO FUEL PUMPS, POWER TORQUE, MASTERPRO, MASTERPRO IGNITION
19177238 - GENERAL MOTORS, GMC, CHEVROLET, ISUZU
25178730 - GENERAL MOTORS, GMC, CHEVROLET, ISUZU
MPA27002 - MASTERPRO FUEL PUMPS, POWER TORQUE, MASTERPRO, MASTERPRO IGNITION
A30027 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
19331267 - GENERAL MOTORS, GMC, CHEVROLET
A27002 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
8251787300, 8-25178-730-0 - GMC, CHEVROLET, ISUZU
EFG0070 - AUTOZONE, DELPHI
9530016, 953-0016 - DENSO, DENSO AUTO PARTS
MU1751 - ACDELCO
67420, 67 420 - BOSCH
19369929 - GENERAL MOTORS
D5331020 - TRUGRADE
P75006M - CARTER
MU111, MU11-1 - ACDELCO
SP446M - SPECTRA PREMIUM
1AMFP00053 - MAGNETI MARELLI
RE0437S - EVO DRIVELINE
AFS0437S - EVO DRIVELINE
FG0070 - DELPHI
P74760M - CARTER
MU1062 - ACDELCO
M312880 - CARQUEST
8191772380, 8-19177-238-0 - ISUZU
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (12)vehicles
All
Chevrolet
GMC
Isuzu
| 1997 - 2001 | Chevrolet | S10 |
| 2002 - 2002 | Chevrolet | S10 |
| 2002 - 2002 | Chevrolet | S10 |
| 2002 - 2002 | Chevrolet | S10 |
| 2002 - 2002 | Chevrolet | S10 |
| 2002 - 2002 | Chevrolet | S10 |
| 2002 - 2002 | Chevrolet | S10 |
| 1997 - 2001 | GMC | Sonoma |
| 2002 - 2002 | GMC | Sonoma |
| 2002 - 2002 | GMC | Sonoma |
| 2002 - 2002 | GMC | Sonoma |
| 1997 - 2000 | Isuzu | Hombre |
