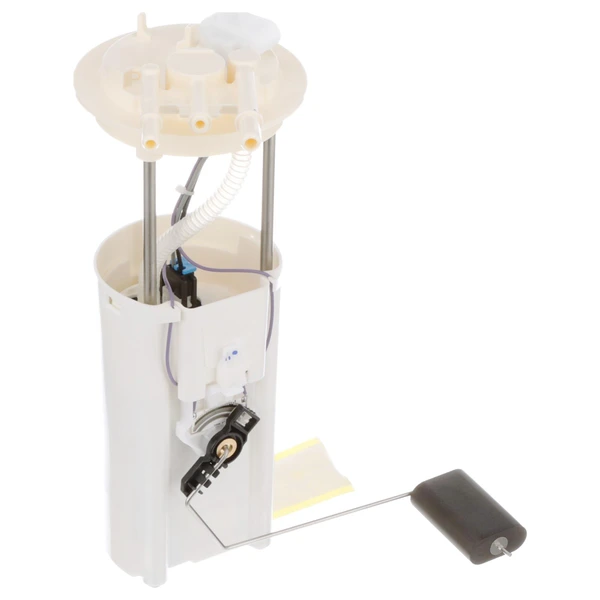

Fuel Pump Module Assembly - Delphi FG0038
Part # FG0038
Item # 1001VCC7
$210.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 25
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 109
- Minimum Pressure (PSI)
- 12
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Splices, Wire Harness, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 0.1
- Resistance Ohms Full (Ohms)
- 90
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 13
- Wire Harness Included
- Yes
- Wire Quantity
- 4
Show all
Features
About this item
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies meticulous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps feature the latest OEM technological innovations, guaranteeing exceptional pumping capability, superior pressure performance, and lower electrical power usage, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: A-Premium offers free shipping and a 3-year warranty with every Delphi fuel pump purchase.
● Optimized Fuel Delivery: With Delphi fuel pumps, you'll experience improved pumping efficiency, reduced energy usage, and a minimal impact on the electrical system.
● Gauge Accuracy: With Delphi's fuel pumps, the empty float height and float retention are carefully calibrated to OE standards, guaranteeing precise fuel gauge performance.
● OE-design connector: Unparalleled performance is guaranteed by Delphi's OE-design connector and body harness.
● Validated Vehicle Fit: Delphi's validation and testing protocols guarantee that their parts will fit the correct vehicle application.
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies meticulous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps feature the latest OEM technological innovations, guaranteeing exceptional pumping capability, superior pressure performance, and lower electrical power usage, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: A-Premium offers free shipping and a 3-year warranty with every Delphi fuel pump purchase.
● Optimized Fuel Delivery: With Delphi fuel pumps, you'll experience improved pumping efficiency, reduced energy usage, and a minimal impact on the electrical system.
● Gauge Accuracy: With Delphi's fuel pumps, the empty float height and float retention are carefully calibrated to OE standards, guaranteeing precise fuel gauge performance.
● OE-design connector: Unparalleled performance is guaranteed by Delphi's OE-design connector and body harness.
● Validated Vehicle Fit: Delphi's validation and testing protocols guarantee that their parts will fit the correct vehicle application.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E3930M - CARQUEST, MASTER PARTS DIVISION, AIRTEX
A41001 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
19153721 - GENERAL MOTORS, GMC, CHEVROLET
9535022, 953-5022 - DENSO, DENSO AUTO PARTS
SP1202 - SPECTRA PREMIUM
E16137 - PRECISION FUEL
69238, 69-238 - BOSCH
SP6028M - SPECTRA PREMIUM
19332085 - GENERAL MOTORS
67339 - BOSCH
MU28 - ACDELCO
E3931 - AIRTEX
P74219 - CARTER
DFG0038 - AUTOZONE
25166179 - GENERAL MOTORS
FG0038 - DELPHI
P74817M - CARTER
MU1605 - ACDELCO
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Chevrolet
GMC
| 1995 - 1995 | Chevrolet | Tahoe |
| 1995 - 1995 | GMC | Yukon |
