Fuel Pump Module Assembly - Delphi FG0028
Part # FG0028
Item # 1001VK77
$219.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 18
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 109
- Minimum Pressure (PSI)
- 62
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 3
- Outlet Type
- Quick Connect
- Package Contents

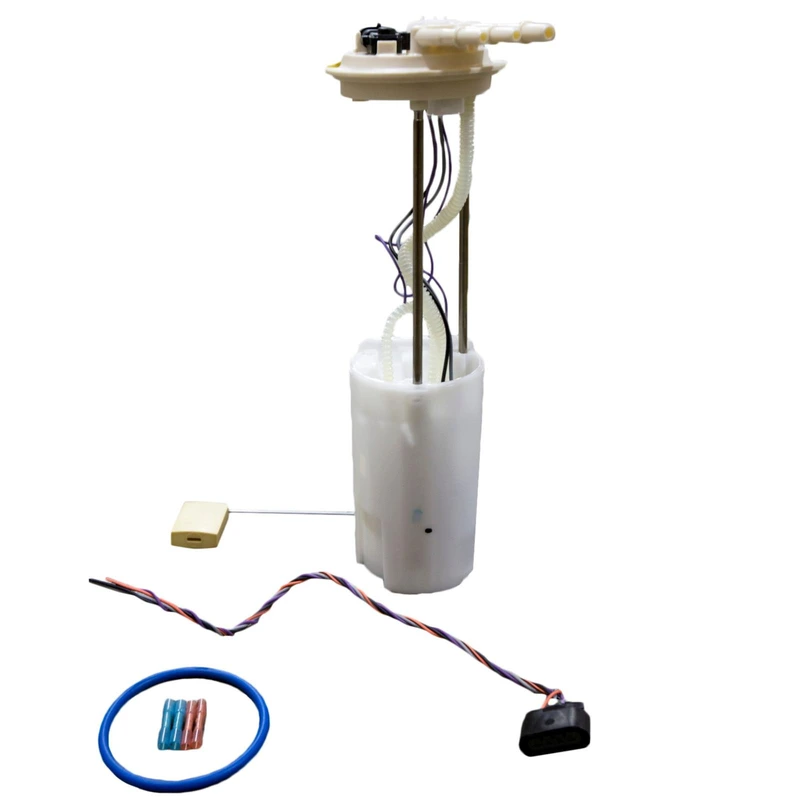

- Fuel Pump Module Assembly with Float Arm, Seal, Splices, Wire Harness, Instruction Sheet
- Pressure Sensor included
- Yes
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 0.1
- Resistance Ohms Full (Ohms)
- 90
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 13
- Wire Harness Included
- Yes
- Wire Quantity
- 4
Show all
Features
About this item
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies meticulous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps feature the latest OEM technological innovations, guaranteeing exceptional pumping capability, superior pressure performance, and lower electrical power usage, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Your Delphi fuel pump purchase includes free shipping and a warranty of up to 3 years for your added confidence.
● Optimized Fuel Delivery: With Delphi fuel pumps, you'll enjoy optimized pumping efficiency, decreased energy usage, and a minimal influence on the vehicle's electrical system.
● Gauge Accuracy: With Delphi's fuel pumps, the empty float height and float retention are carefully calibrated to OE standards, guaranteeing precise fuel gauge performance.
● OE-design connector: Delphi's fuel pump is equipped with an OE-design connector and body harness that deliver unparalleled performance.
● Validated Vehicle Fit: Delphi's parts are validated and tested to ensure a perfect match for the intended vehicle application.
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies meticulous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps feature the latest OEM technological innovations, guaranteeing exceptional pumping capability, superior pressure performance, and lower electrical power usage, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Your Delphi fuel pump purchase includes free shipping and a warranty of up to 3 years for your added confidence.
● Optimized Fuel Delivery: With Delphi fuel pumps, you'll enjoy optimized pumping efficiency, decreased energy usage, and a minimal influence on the vehicle's electrical system.
● Gauge Accuracy: With Delphi's fuel pumps, the empty float height and float retention are carefully calibrated to OE standards, guaranteeing precise fuel gauge performance.
● OE-design connector: Delphi's fuel pump is equipped with an OE-design connector and body harness that deliver unparalleled performance.
● Validated Vehicle Fit: Delphi's parts are validated and tested to ensure a perfect match for the intended vehicle application.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
P363M - PIERCE, NIEHOFF, BORGWARNER, BWD
A30068 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
19179616 - GENERAL MOTORS, GMC, CHEVROLET
19331275 - GENERAL MOTORS, GMC, CHEVROLET
E3920M - MASTER PARTS DIVISION, AIRTEX
9535016, 953-5016 - DENSO, DENSO AUTO PARTS
P74714M - CARTER
P74714S - CARTER
EFP811M - KEM
MU1732 - ACDELCO
67329 - BOSCH
EFG0028 - AUTOZONE
RE0527S - EVO DRIVELINE
MU11 - ACDELCO
FG0028 - DELPHI
1AMFP00200 - MAGNETI MARELLI
AFS0527S - EVO DRIVELINE
SP363M - SPECTRA PREMIUM
25163487 - GENERAL MOTORS
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Chevrolet
GMC
| 1996 - 1996 | Chevrolet | S10 |
| 1996 - 1996 | GMC | Sonoma |
