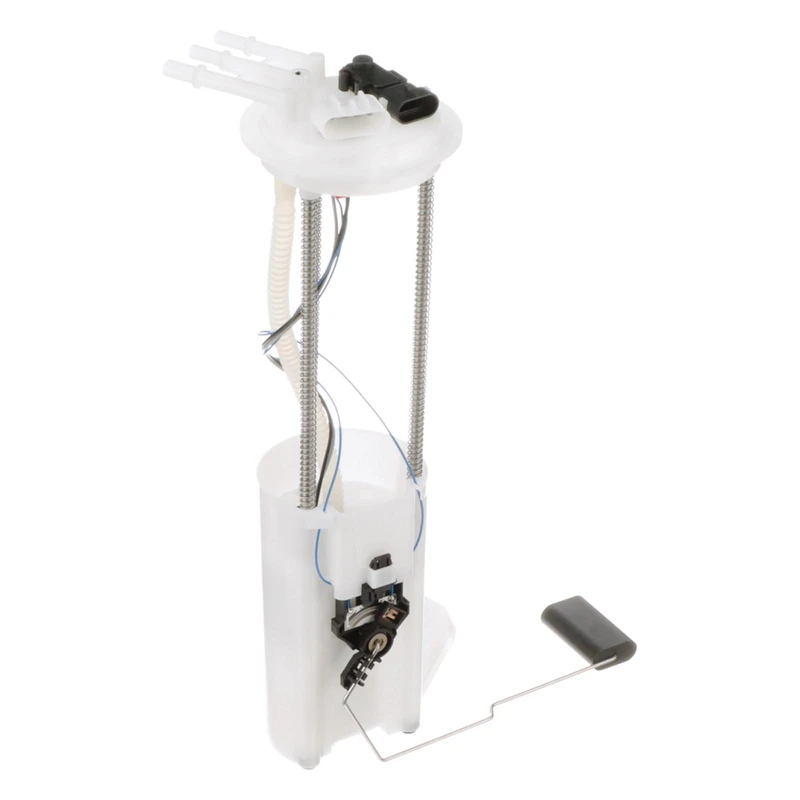

Fuel Pump Module Assembly - Delphi FG0027
Part # FG0027
Item # 1001VG3W
$220.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 7
- Average Flow Rating (gph)
- 12

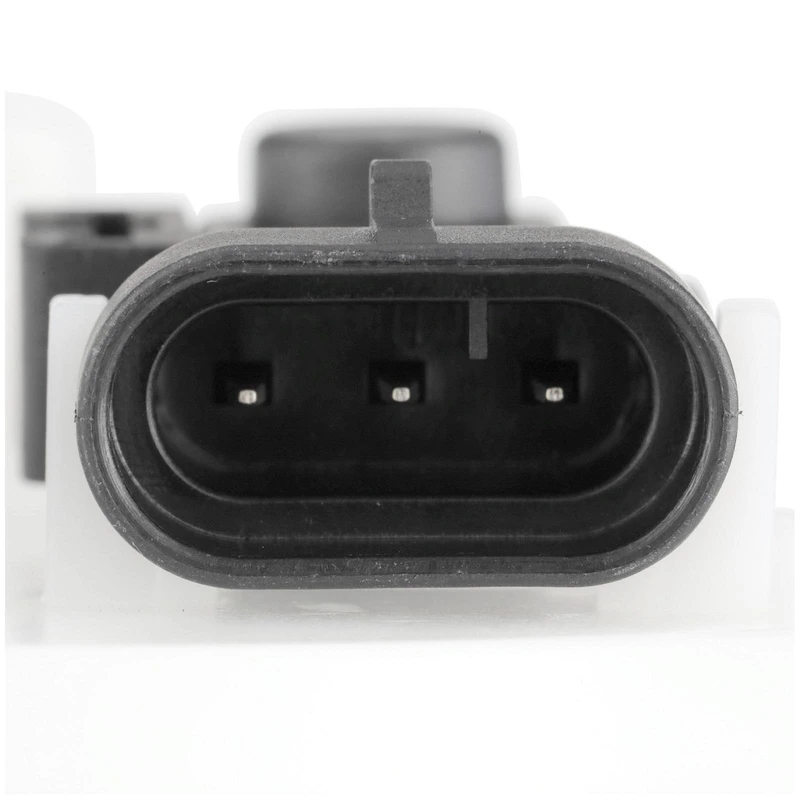

- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Oval
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 109
- Minimum Pressure (PSI)
- 51
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 3
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Splices, Wire Harness, Instruction Sheet
- Pressure Sensor included
- Yes
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 0.1
- Resistance Ohms Full (Ohms)
- 90
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 4
- Terminal Type
- Blade
- Voltage (2h)
- 13
- Wire Harness Included
- Yes
- Wire Quantity
- 4
Show all
Features
About this item
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies meticulous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps feature the latest OEM technological innovations, guaranteeing exceptional pumping capability, superior pressure performance, and lower electrical power usage, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Your Delphi fuel pump purchase includes free shipping and a warranty of up to 3 years for your added confidence.
● Optimized Fuel Delivery: Delphi's fuel pumps restore rapid pressure performance, preserve system integrity, and enhance pumping efficiency with reduced energy consumption and electrical system impact.
● Gauge Accuracy: Delphi's fuel pumps are designed to strictly follow the OE requirements for empty float height and float retention, providing you with dependable fuel gauge accuracy.
● OE-design connector: Delphi's fuel pump is equipped with an OE-design connector and body harness that deliver unparalleled performance.
● Validated Vehicle Fit: Delphi's parts are validated and tested to ensure a perfect match for the intended vehicle application.
Delphi, a globally renowned OEM manufacturer with a long history of professional expertise, applies meticulous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps feature the latest OEM technological innovations, guaranteeing exceptional pumping capability, superior pressure performance, and lower electrical power usage, solidifying Delphi's position as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Your Delphi fuel pump purchase includes free shipping and a warranty of up to 3 years for your added confidence.
● Optimized Fuel Delivery: Delphi's fuel pumps restore rapid pressure performance, preserve system integrity, and enhance pumping efficiency with reduced energy consumption and electrical system impact.
● Gauge Accuracy: Delphi's fuel pumps are designed to strictly follow the OE requirements for empty float height and float retention, providing you with dependable fuel gauge accuracy.
● OE-design connector: Delphi's fuel pump is equipped with an OE-design connector and body harness that deliver unparalleled performance.
● Validated Vehicle Fit: Delphi's parts are validated and tested to ensure a perfect match for the intended vehicle application.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
P359M - PIERCE, NIEHOFF, BORGWARNER, BWD
19179984 - GENERAL MOTORS, GMC, CHEVROLET
A30081 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
E3923M - MASTER PARTS DIVISION, AIRTEX
9535015, 953-5015 - DENSO, DENSO AUTO PARTS
P74717S - CARTER
RE0239S - EVO DRIVELINE
AFS0239S - EVO DRIVELINE
67332 - BOSCH
MU10 - ACDELCO
E16336 - IMPORT DIRECT
EFP910M - KEM
EFG0027 - AUTOZONE
67329 - BOSCH
MU1781 - ACDELCO
SP359M - SPECTRA PREMIUM
25163486 - GENERAL MOTORS
FG0027 - DELPHI
8191799840, 8-19179-984-0 - ISUZU
8251634860, 8-25163-486-0 - ISUZU
P74717M - CARTER
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (3)vehicles
All
Chevrolet
GMC
Isuzu
| 1996 - 1996 | Chevrolet | S10 |
| 1996 - 1996 | GMC | Sonoma |
| 1996 - 1996 | Isuzu | Hombre |
