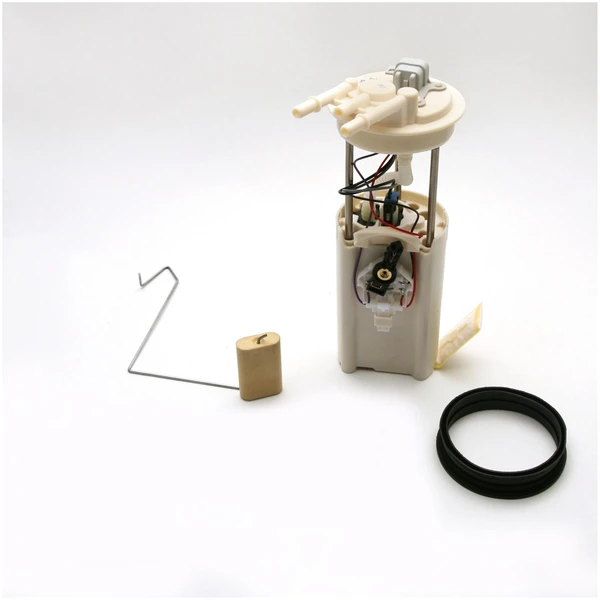

Fuel Pump Module Assembly - Delphi FG0002
Part # FG0002
Item # 1001VDW4
$226.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- Yes
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Sending Unit Included
- Yes
- Average Current Draw (A)
- 10
- Average Flow Rating (gph)
- 20
- Connector Gender
- Female
- Connector Quantity
- 1
- Connector Shape
- Trapezoid
- Fuel Filter Included
- No
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Housing Material
- Plastic
- In Tank or External
- In Tank
- Inlet Type
- Strainer
- Installation Warnings
- No
- Internal Or External Strainer
- External
- Lock Ring Included
- No
- Maximum Pressure (PSI)
- 109
- Minimum Pressure (PSI)
- 51
- Mounting Hardware Included
- No
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Quantity
- 2
- Outlet Type
- Quick Connect
- Package Contents
- Fuel Pump Module Assembly with Float Arm, Seal, Instruction Sheet
- Pressure Sensor included
- No
- Pump Design
- Turbine
- Pump Type
- Electric
- Regulator Included
- No
- Resistance Ohms Empty (Ohms)
- 0.1
- Resistance Ohms Full (Ohms)
- 90
- Strainer Included
- Yes
- Terminal Gender
- Male
- Terminal Quantity
- 5
- Terminal Type
- Pin
- Voltage (2h)
- 13
- Wire Harness Included
- Yes
- Wire Quantity
- 4
Show all
Features
About this item
With a century of professional expertise and a global reputation as an OEM manufacturer, Delphi upholds strict OEM standards in the manufacturing of its fuel pumps. Every aftermarket replacement pump incorporates the latest OEM technological advancements, delivering outstanding pumping ability, excellent pressure performance, and reduced electrical power requirements, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A-Premium provides an outstanding shopping experience, offering free shipping and a 3-year warranty with every Delphi fuel pump purchased.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● OE-design Connector: The OE-design connector and body harness in Delphi fuel pumps provide superior performance capabilities.
With a century of professional expertise and a global reputation as an OEM manufacturer, Delphi upholds strict OEM standards in the manufacturing of its fuel pumps. Every aftermarket replacement pump incorporates the latest OEM technological advancements, delivering outstanding pumping ability, excellent pressure performance, and reduced electrical power requirements, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: A-Premium provides an outstanding shopping experience, offering free shipping and a 3-year warranty with every Delphi fuel pump purchased.
● Optimized Fuel Delivery: With improved design, Delphi fuel pumps excel in delivering better pumping efficiency.
● Gauge Accuracy: With precise empty float height and float retention, Delphi's fuel pumps guarantee correct gas gauge readings.
● Large Volume Reservoir: The design of Delphi fuel pumps includes a large volume reservoir, optimizing their performance during low-fuel situations.
● OE-design Connector: The OE-design connector and body harness in Delphi fuel pumps provide superior performance capabilities.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E3307 - MASTER PARTS DIVISION, AIRTEX
E16122 - PRECISION FUEL PUMPS, PRECISION FUEL
A38011 - PRECISION FUEL PUMPS, PRECISION FUEL
E3916M - MASTER PARTS DIVISION, AIRTEX
EFP903M - KEM
MU1833 - ACDELCO
RE0383P - EVO DRIVELINE
67325 - BOSCH
25028422 - GENERAL MOTORS
43903, 43-903, 4-3903 - ACDELCO
SP6732M - SPECTRA PREMIUM
19179979 - GENERAL MOTORS
SP137 - SPECTRA PREMIUM
9515020, 951-5020 - DENSO AUTO PARTS
FG0002 - DELPHI
CFG0002 - AUTOZONE
P74848M - CARTER
AFS0383P - EVO DRIVELINE
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (1)vehicles
All
Cadillac
| 1993 - 1993 | Cadillac | Allante |
