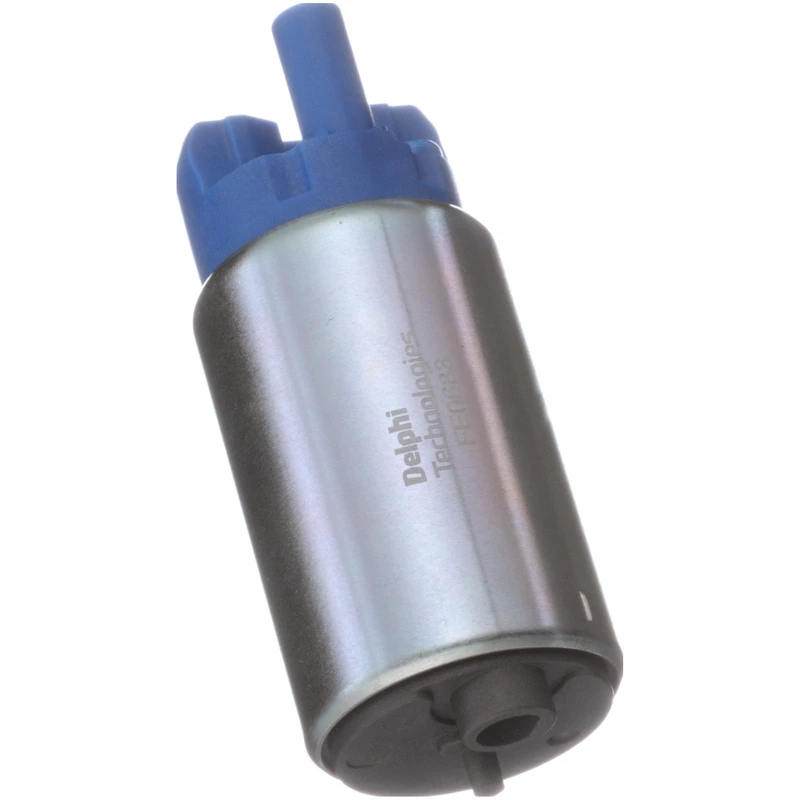

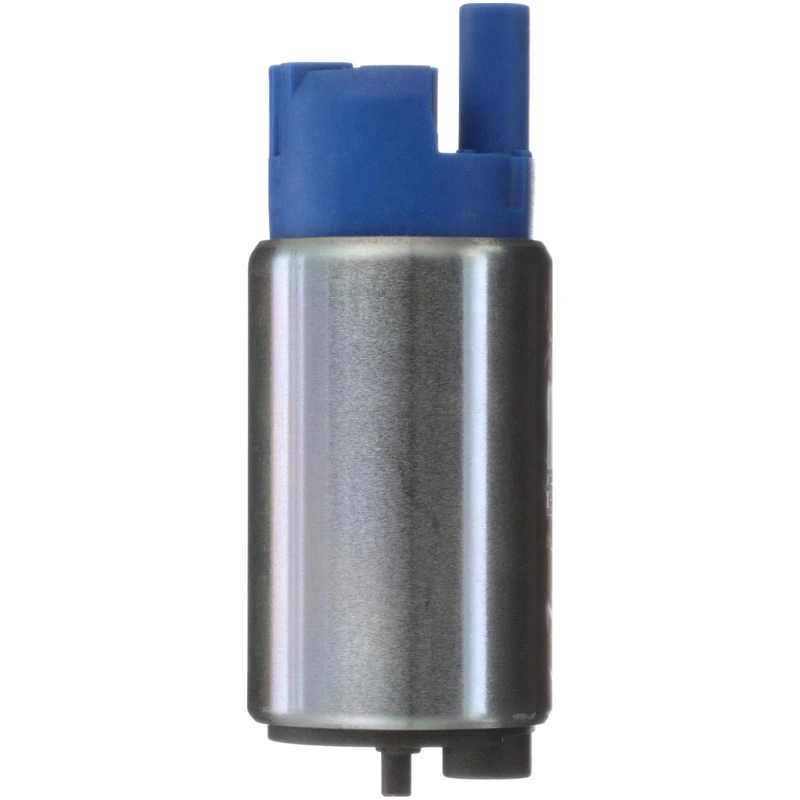

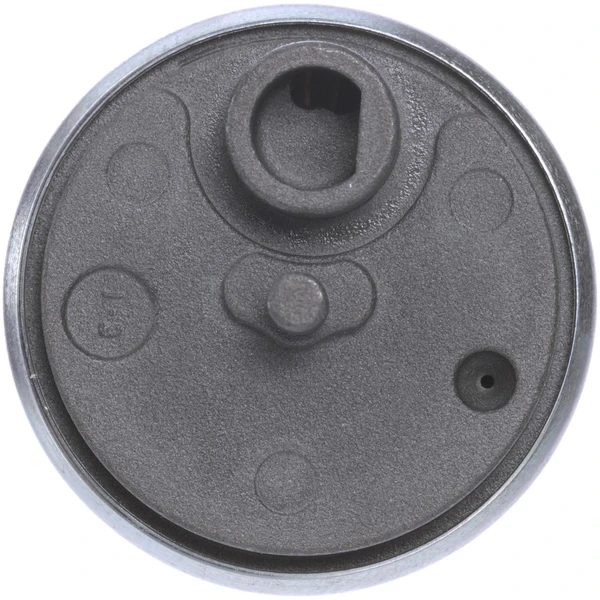

Electric Fuel Pump - In-Tank - Delphi FE0683
Part # FE0683
Item # 1001VGP2
$391.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- No
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- In-Tank
- Sending Unit Included
- No
- Average Current Draw (A)
- 7.0
- Average Flow Rating (gph)
- 34.0
- Connector Gender
- Female
- Connector Shape
- Rectangle
- Fuel Type
- Gas
- Gasket Or Seal Included
- No
- Grade Type
- Premium
- Inlet Outside Diameter (mm)
- 11.0
- Inlet Type
- Strainer
- Internal Or External
- Internal
- Length (mm)
- 97
- Maximum Amperage Draw (A)
- 7.0
- Maximum Pressure (PSI)
- 123.0
- Minimum Pressure (PSI)
- 58
- Mounting Bracket Included
- No
- Mounting Hardware Included
- Yes
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Outside Diameter (mm)
- 9.5
- Outlet Quantity
- 1
- Outlet Type
- Hose Bead
- Package Contents
- Electric Fuel Pump, Retainer, Seal, Steel Clip, Instruction Sheet
- Pump Design
- Turbine
- Regulator Included
- No
- Seal And Lock Ring Included
- No
- Strainer Included
- No
- Terminal Gender
- Male
- Terminal Quantity
- 2
- Terminal Type
- Pin
- Voltage (2h)
- 12.0
- Wire Quantity
- 0
- Wiring Harness Included
- No
Show all
Features
About this item
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps integrate the latest OEM technological innovations, ensuring exceptional pumping capability, superior pressure performance, and lower electrical power consumption, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: A-Premium focuses on providing excellent service, making sure that every Delphi fuel pump is accompanied by free shipping and a 3-year warranty.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● Optimized Fuel Delivery: With Delphi fuel pumps, you'll enjoy optimized pumping efficiency, decreased energy usage, and a minimal influence on the vehicle's electrical system.
● Large Volume Reservoir: Delphi fuel pumps incorporate a large volume reservoir, ensuring better handling when fuel levels are low.
● Replacement Tips: Always check the fuel filter as part of the fuel pump replacement process.
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps integrate the latest OEM technological innovations, ensuring exceptional pumping capability, superior pressure performance, and lower electrical power consumption, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: A-Premium focuses on providing excellent service, making sure that every Delphi fuel pump is accompanied by free shipping and a 3-year warranty.
● Gauge Accuracy: The empty float height and retention of Delphi's fuel pumps align with OE standards, ensuring accurate gas gauge readings.
● Optimized Fuel Delivery: With Delphi fuel pumps, you'll enjoy optimized pumping efficiency, decreased energy usage, and a minimal influence on the vehicle's electrical system.
● Large Volume Reservoir: Delphi fuel pumps incorporate a large volume reservoir, ensuring better handling when fuel levels are low.
● Replacement Tips: Always check the fuel filter as part of the fuel pump replacement process.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E16466 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS
PE0113350, PE01-13-350 - MAZDA
CFE0683 - AUTOZONE
P76906 - CARTER
FE0683 - DELPHI
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (8)vehicles
All
Mazda
| 2013 - 2013 | Mazda | 3 |
| 2013 - 2013 | Mazda | 3 |
| 2013 - 2016 | Mazda | CX-5 |
| 2014 - 2017 | Mazda | 3 |
| 2014 - 2019 | Mazda | 6 |
| 2016 - 2016 | Mazda | MX-5 Miata |
| 2018 - 2018 | Mazda | 3 |
| 2020 - 2020 | Mazda | 6 |
