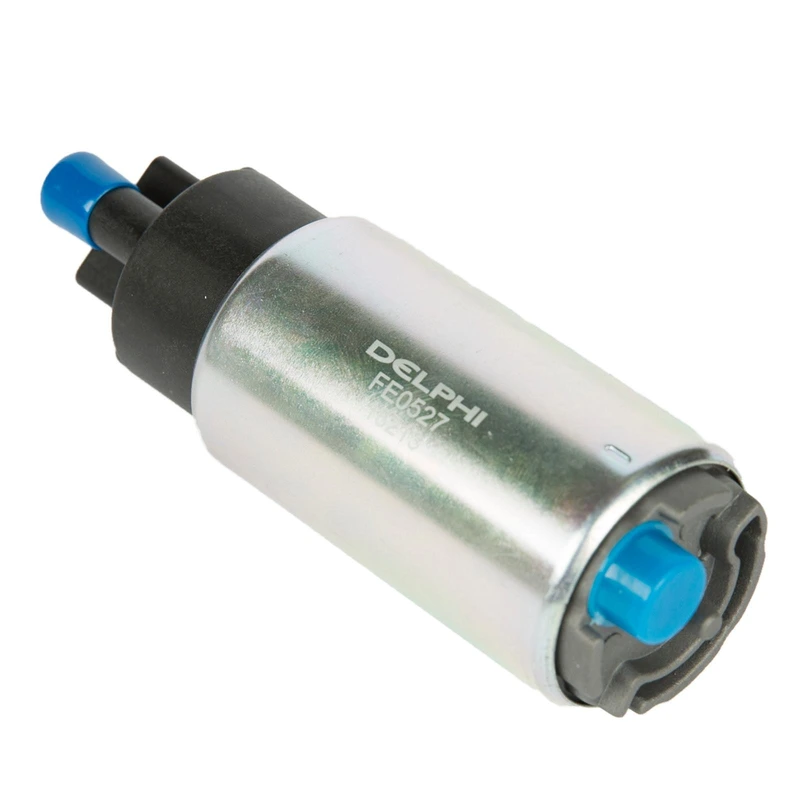

Electric Fuel Pump - In-Tank - Delphi FE0527
Part # FE0527
Item # 1001VHZX
$154.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- No
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- 1
- Installation Position
- In-Tank
- Sending Unit Included
- No
- Average Current Draw (A)
- 5.0
- Average Flow Rating (gph)
- 32.0
- Connector Gender
- Female
- Connector Shape
- Rectangle
- Fuel Type
- Gas
- Gasket Or Seal Included
- No
- Grade Type
- Premium
- Inlet Outside Diameter (mm)
- 11.0
- Inlet Type
- Strainer
- Internal Or External
- Internal
- Length (mm)
- 113.0
- Maximum Amperage Draw (A)
- 5.0
- Maximum Pressure (PSI)
- 104.0
- Minimum Pressure (PSI)
- 44
- Mounting Bracket Included
- No
- Mounting Hardware Included
- Yes
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.375
- Outlet Outside Diameter (mm)
- 9.5
- Outlet Quantity
- 1
- Outlet Type
- Hose

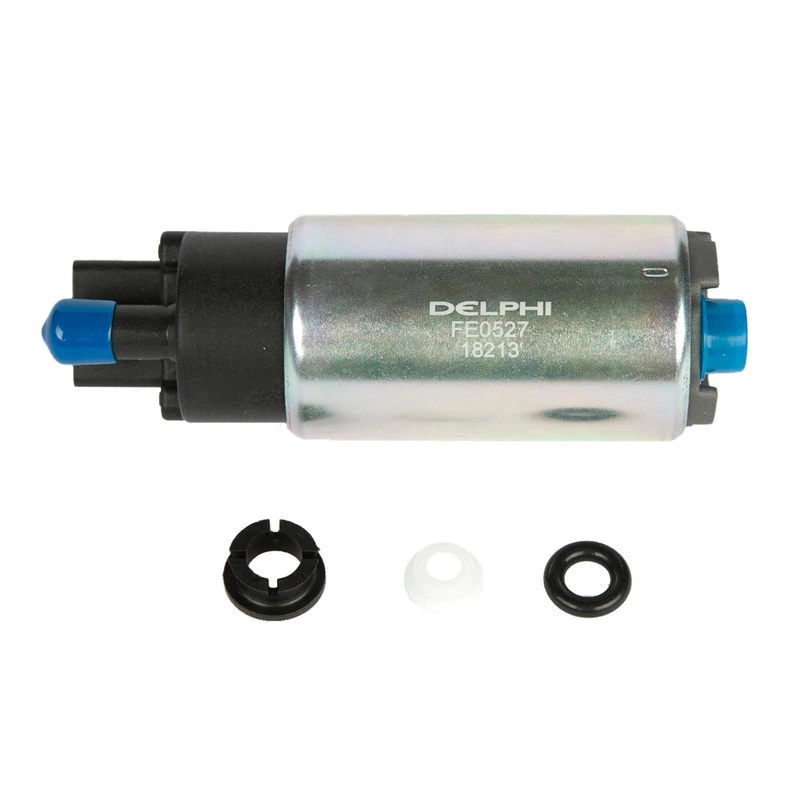

- Package Contents
- Electric Fuel Pump, (2) Seals, Spacer, Instruction Sheet
- Pump Design
- Turbine
- Regulator Included
- No
- Seal And Lock Ring Included
- No
- Strainer Included
- No
- Terminal Gender
- Male
- Terminal Quantity
- 2
- Terminal Type
- Blade
- Voltage (2h)
- 12.0
- Wire Quantity
- 0
- Wiring Harness Included
- No
Show all
Features
About this item
As a globally renowned OEM manufacturer with a century of professional expertise, Delphi adheres to meticulous OEM standards in the manufacturing of its fuel pumps. Each aftermarket replacement pump features the latest OEM technological advancements, guaranteeing outstanding pumping ability, excellent pressure performance, and reduced electrical power usage, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Free shipping & Exclusive Guarantee:！ Delphi fuel pumps come with the added value of free shipping and a warranty of up to 3 years for your peace of mind.
● Gauge Accuracy: Delphi's fuel pumps are engineered to adhere to the OE specifications for empty float height and float retention, delivering accurate fuel gauge readings.
● Optimized Fuel Delivery: With Delphi fuel pumps, you'll enjoy optimized pumping efficiency, decreased energy usage, and a minimal influence on the vehicle's electrical system.
● OE-design connector: Delphi's fuel pump boasts an OE-design connector and body harness for top-tier performance.
● Replacement Tips: Inspecting and replacing the fuel filter during a new fuel pump installation is essential.
As a globally renowned OEM manufacturer with a century of professional expertise, Delphi adheres to meticulous OEM standards in the manufacturing of its fuel pumps. Each aftermarket replacement pump features the latest OEM technological advancements, guaranteeing outstanding pumping ability, excellent pressure performance, and reduced electrical power usage, making Delphi a preferred choice among the world's top automakers.
● Free shipping & Exclusive Guarantee: Free shipping & Exclusive Guarantee:！ Delphi fuel pumps come with the added value of free shipping and a warranty of up to 3 years for your peace of mind.
● Gauge Accuracy: Delphi's fuel pumps are engineered to adhere to the OE specifications for empty float height and float retention, delivering accurate fuel gauge readings.
● Optimized Fuel Delivery: With Delphi fuel pumps, you'll enjoy optimized pumping efficiency, decreased energy usage, and a minimal influence on the vehicle's electrical system.
● OE-design connector: Delphi's fuel pump boasts an OE-design connector and body harness for top-tier performance.
● Replacement Tips: Inspecting and replacing the fuel filter during a new fuel pump installation is essential.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E16136 - IMPORT DIRECT, IMPORT DIRECT FUEL PUMPS, IMPORT DIRECT AIR AND FUEL
9510002, 951-0002 - CARQUEST, DENSO, DENSO AUTO PARTS
2322120040, 23221-20040 - LEXUS, TOYOTA, SCION
E8404 - CARQUEST, AIRTEX
9510001, 951-0001 - CARQUEST, DENSO AUTO PARTS
2322128020, 23221-28020 - LEXUS, TOYOTA
2322120030, 23221-20030 - LEXUS, TOYOTA
69698 - BOSCH
69487 - BOSCH
E2246801 - CARQUEST
P76068 - CARTER
9500106, 950-0106 - DENSO AUTO PARTS
SP1184 - SPECTRA PREMIUM
CFE0527 - AUTOZONE
P88008 - CARTER
9500175, 950-0175 - DENSO AUTO PARTS
FE0527 - DELPHI
152-0989
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (7)vehicles
All
Lexus
Scion
Toyota
| 1999 - 2003 | Lexus | RX300 |
| 2006 - 2008 | Lexus | RX400h |
| 2005 - 2010 | Scion | tC |
| 2001 - 2003 | Toyota | Highlander |
| 2006 - 2007 | Toyota | Highlander |
| 2006 - 2007 | Toyota | Highlander |
| 2008 - 2010 | Toyota | Highlander |
