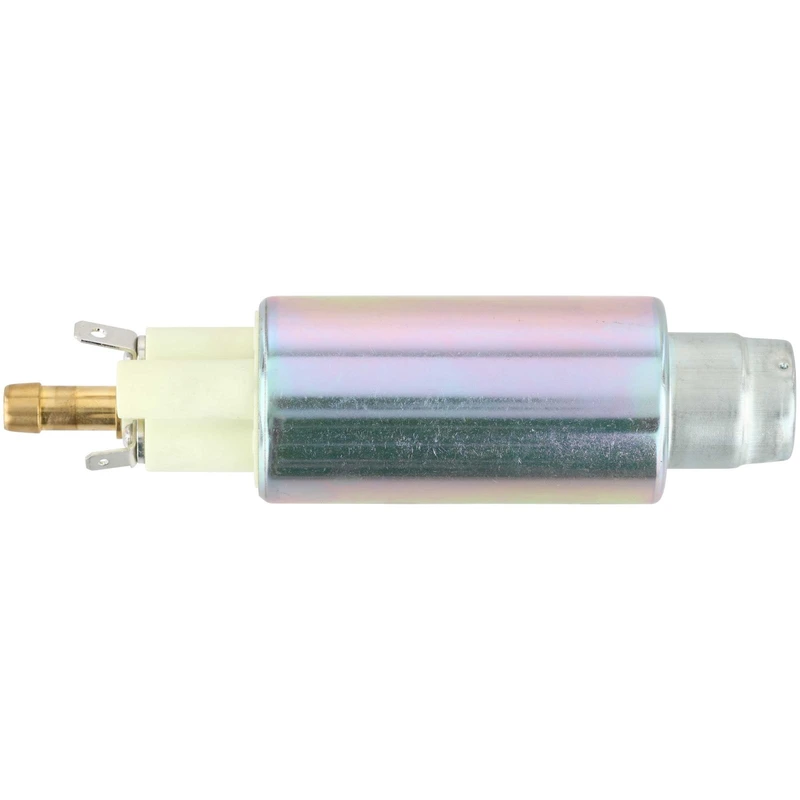

Electric Fuel Pump - In-Tank - Delphi FE0054
Part # FE0054
Item # 1001VAG5
$123.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return
Specifications
- Sending Unit Included
- No
- Brand
- Delphi
- Warranty
- 3-Year
- Item Located
- United States
- Quantity
- One Set
- Installation Position
- In-Tank
- Sending Unit Included
- No
- Average Current Draw (A)
- 5.0
- Average Flow Rating (gph)
- 28.0
- Connector Gender
- Male
- Connector Shape
- Blade
- Fuel Type
- Gas
- Gasket Or Seal Included
- Yes
- Gasket Or Seal Material
- Nitrile Rubber
- Grade Type
- Premium
- Inlet Outside Diameter (mm)
- 22.0
- Inlet Type
- Strainer
- Internal Or External
- Internal
- Length (mm)
- 140.0
- Maximum Amperage Draw (A)
- 5.0
- Maximum Pressure (PSI)
- 58.0
- Minimum Pressure (PSI)
- 14
- Mounting Bracket Included
- No
- Mounting Hardware Included
- Yes
- Negative Ground
- No
- Outlet Outside Diameter (in)
- 0.313
- Outlet Outside Diameter (mm)
- 7.9
- Outlet Quantity
- 1
- Outlet Type
- Hose
- Package Contents

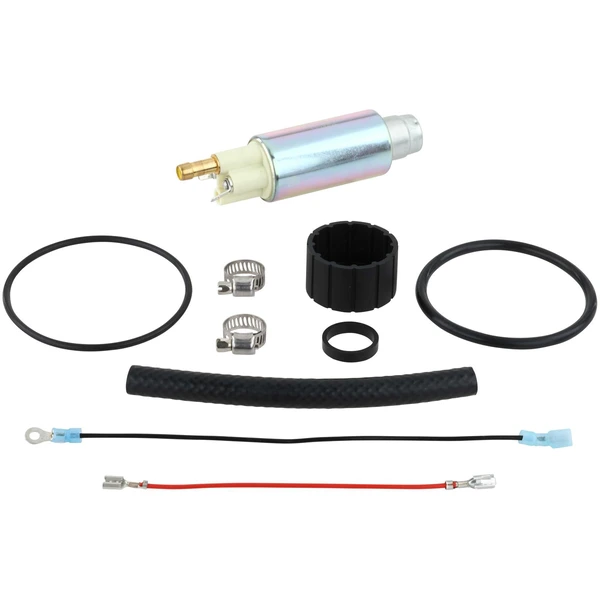

- Electric Fuel Pump, (2) Hose Clamps, Hose Piece, 2 Seals, Terminal Hardware, (2) Wires, Instruction Sheet
- Pump Design
- Turbine
- Regulator Included
- No
- Seal And Lock Ring Included
- No
- Strainer Included
- No
- Terminal Gender
- Male
- Terminal Quantity
- 2
- Terminal Type
- Pin
- Voltage (2h)
- 14.0
- Wire Quantity
- 2
- Wiring Harness Included
- Yes
Show all
Features
About this item
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Enjoy the added benefits of free shipping and a warranty of up to 3 years when you choose a Delphi fuel pump.
● Gauge Accuracy: Delphi's fuel pumps are engineered to adhere to the OE specifications for empty float height and float retention, delivering accurate fuel gauge readings.
● Comprehensive accessories: Delphi's fuel pump is accompanied by a complete set of premium accessories, spanning the fuel sending unit, filter, and regulator.
● Optimized Fuel Delivery: Delphi's fuel pumps deliver enhanced pumping efficiency, reduced energy usage, and a negligible effect on the vehicle's electrical system.
● OE-design connector: Delphi's fuel pump features an OE-design connector and body harness that offer unmatched performance.
● Validated Vehicle Fit: Delphi's validation and testing protocols guarantee that their parts will fit the correct vehicle application.
Delphi, a globally recognized OEM manufacturer with a storied history of professional expertise, applies rigorous OEM standards to the production of all its fuel pumps. The aftermarket replacement pumps incorporate the latest OEM technological innovations, delivering exceptional pumping capability, superior pressure performance, and lower electrical power requirements, cementing Delphi's status as a favored choice among the world's leading automakers.
● Free shipping & Exclusive Guarantee: Enjoy the added benefits of free shipping and a warranty of up to 3 years when you choose a Delphi fuel pump.
● Gauge Accuracy: Delphi's fuel pumps are engineered to adhere to the OE specifications for empty float height and float retention, delivering accurate fuel gauge readings.
● Comprehensive accessories: Delphi's fuel pump is accompanied by a complete set of premium accessories, spanning the fuel sending unit, filter, and regulator.
● Optimized Fuel Delivery: Delphi's fuel pumps deliver enhanced pumping efficiency, reduced energy usage, and a negligible effect on the vehicle's electrical system.
● OE-design connector: Delphi's fuel pump features an OE-design connector and body harness that offer unmatched performance.
● Validated Vehicle Fit: Delphi's validation and testing protocols guarantee that their parts will fit the correct vehicle application.
Show all
0
Specifications
Part interchange
Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
E16085 - PRECISION FUEL PUMPS, IMPORT DIRECT AIR AND FUEL, PRECISION FUEL
P49, P 49, P-49 - PIERCE, BORGWARNER, BWD
E7001 - CARQUEST, MASTER PARTS DIVISION, AIRTEX
EFP550 - KEM, HYGRADE
8983502778 - AMERICAN MOTORS, CHRYSLER
8983502779 - AMERICAN MOTORS, CHRYSLER
8933000891 - AMERICAN MOTORS, CHRYSLER
83502778, 8350 2778 - RENAULT, CHRYSLER
83502779, 8350 2779 - RENAULT, CHRYSLER
83502994, 8350 2994 - AMERICAN MOTORS, CHRYSLER
83502995, 8350 2995 - AMERICAN MOTORS, CHRYSLER
83502751, 8350 2751 - AMERICAN MOTORS, CHRYSLER
RE0258P - EVO DRIVELINE
69301 - BOSCH
AFS0258P - EVO DRIVELINE
67640 - BOSCH
9503004, 950-3004 - DENSO AUTO PARTS
25116977 - GENERAL MOTORS
FE0054 - DELPHI
550 - WALBRO
8933001020 - CHRYSLER
P74032 - CARTER
P74053 - CARTER
P74057 - CARTER
E7311 - AIRTEX
EP280 - ACDELCO
83502752, 8350 2752 - CHRYSLER
CFE0054 - AUTOZONE
P90034 - CARTER
EP276 - ACDELCO
Compatibility
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (9)vehicles
All
Jeep
Renault
| 1986 - 1987 | Jeep | Wagoneer |
| 1986 - 1990 | Jeep | Cherokee |
| 1986 - 1990 | Jeep | Comanche |
| 1987 - 1990 | Jeep | Wrangler |
| 1986 - 1986 | Renault | Alliance |
| 1986 - 1986 | Renault | Alliance |
| 1986 - 1986 | Renault | Alliance |
| 1986 - 1986 | Renault | Alliance |
| 1987 - 1987 | Renault | Alliance |
