A-Premium

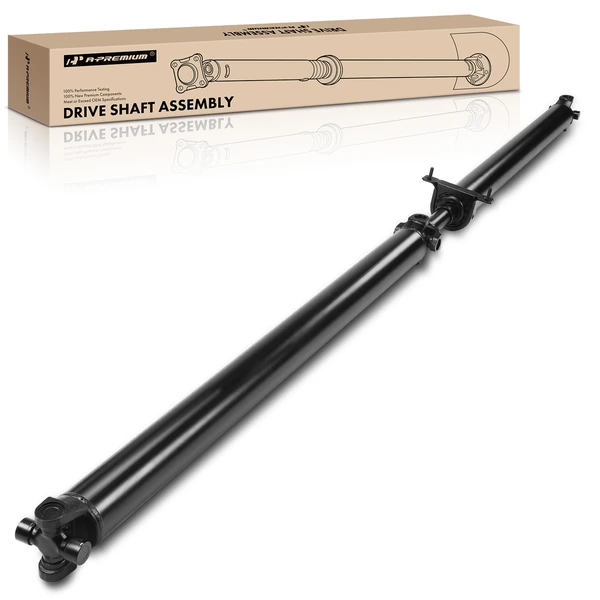

105.5 in. Drive Shaft Rear Side A-Premium APDS1019

Part # APDS1019
Item # 1000PNEY
$497.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Installation Position
Rear Side
Drive Shaft Length (in)
105.5
Wheel Drive
RWD
Brand
A-Premium
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Drive Shaft Length (in)
105.5
Wheel Drive
RWD
Axle Nut Included
No
CV Joints Included
No
Drive Shaft Wall Thickness (in)
0.083
Grade Type
Regular
Greaseable Drive Shaft
Yes
Overall Length Adjustable
Yes
Shaft Diameter (in)
3.5
Shaft Material
Steel
Show all
Note
【Note-1】 This item only fits the Crew Cab Pickup models with Allison Automatic Transmission and 167.7-inch Wheelbase.
【Note-2】 It only fits models with RWD (Rear Wheel Drive), not 4WD (Four Wheel Drive).

Features

High quality A-Premium aftermarket parts - Drive Shaft
To ensure optimal coverage under our 3-year unlimited mileage warranty, please use our vehicle selector to purchase the most compatible Drive Shaft for your specific Car.
  • Installation feasibility is contingent upon the following parameters: Rear Side, RWD, 105.5 inch.
  • Thoroughly Verified for Robust Durability and High-Performance Efficiency.
  • Reliable Under High-Pressure Situations.
  • Effortless and Swift Installation.
  • Reduced rotating mass enhances power delivery to wheels.

Optimized for Quick Reaction. By employing a lightweight structure, the Drive Shaft effectively lessens the vehicle's overall weight. This reduction in rotational mass allows the engine to react swiftly to throttle commands, ensuring a more responsive drive.
Performance Optimized. Crafted to not only meet but also exceed the industry benchmark, ensuring dependable quality and enhanced durability in every drive shaft.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
20914850
22790497
23396460
22984478
22886989
25824504
946-697

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (7)vehicles
All
Chevrolet
GMC
2011 - 2014ChevroletSilverado 2500 HD
2015 - 2016ChevroletSilverado 2500 HD
2014 - 2016ChevroletSilverado 3500 HD
2011 - 2014GMCSierra 2500 HD
2015 - 2016GMCSierra 2500 HD
2011 - 2016GMCSierra 3500 HD
2011 - 2013ChevroletSilverado 3500 HD

Highlights

Note detail

Shipping and warranty

  • Fast shipping

    The order will be dispatched within 1 business day, and the package will arrive within your order's estimated date. Please click Shipping Policy for more details.

  • Easy return

    Every order comes with a 90-day free return which means you don't have to pay for a return slip. Please click Return Policy for more details.

  • Warranty policy

    All parts are quality-tested to meet the top-tier aftermarket standards. Please click Warranty Policy for more details.

Why choose A-Premium.com

Free Return

Return your purchase within 90 days at no cost.

Free Shipping

Free standard shipping on all orders, no minimum required.

24/7 Service

Get assistance from live customer service team 24/7.

Guaranteed Fit

We guarantee that all parts will fit your vehicle perfectly.

Frequently Asked Questions

How do I measure driveshaft wheelbase(<b>Front to Rear Axle</b>)?

To ensure you get the correct driveshaft length, it’s important to measure your wheelbase — the distance between the front and rear axles of your vehicle. Here's how to do it properly:<br> 1.<b>Park on a flat surface</b><br> Make sure the vehicle is parked on level ground for the most accurate measurement.<br> 2.<b>Choose one side of the vehicle</b><br> Pick either the driver or passenger side. Measuring along one side is sufficient.<br> 11145.<b>Measure from center to center</b><br> Use a tape measure to go from the center of the front wheel hub (not the edge of the tire) to the center of the rear wheel hub.<br> This measurement is your vehicle's actual wheelbase, which helps determine the correct driveshaft length needed, especially for custom orders. It is not the length of the driveshaft itself.

Before ordering driveshaft, what information do you need pay attention?

Before ordering your driveshaft, please confirm:<b>Year / Make / Model</b>; <b>Engine type</b>; <b>Drive type</b>; <b>Transmission type</b>; <b>Bed Length & Cab Type</b>; <b>Position</b>

Common symptoms of a failing driveshaft

Excessive vibration while driving/Clunking or banging noises when shifting gears(Usually from worn or loose U-joints)/Squeaking sounds at low speeds(May indicate dry U-joints lacking lubrication)/Difficulty turning or binding in corners/Visible damage or grease leaks near U-joints or CV joints

How do I check my vehicle’s drive type before ordering a driveshaft?

You can easily find out your vehicle’s drivetrain (FWD, AWD, RWD, or 4WD) by entering your 11159-digit VIN into a VIN decoder website.<br> Your VIN is usually located on the dashboard near the windshield or on a sticker inside the driver’s door frame.

How do I measure driveshaft length?

1. <b>Start at the front flange</b><br> Place one end of the tape measure at the outer edge of the front flange.<br> 2. <b>Extend the tape to the rear flange or yoke</b><br> Stretch the tape measure to the outer edge of the rear flange.<br> 11145. <b>Record the total length</b><br> Note the distance shown on the tape measure is the <b>end-to-end</b> length of the driveshaft, typically measured in <b>inches</b>.
