Which year is your Chevrolet Silverado 2500 HD?
Choose a Year
2011
2012
2013
A-Premium

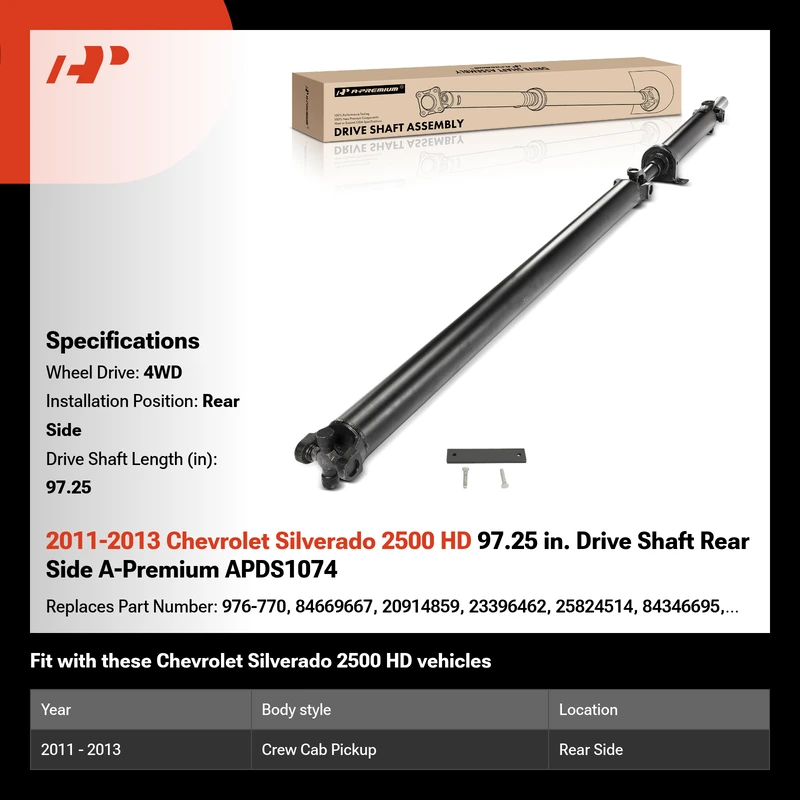

2011-2013 Chevrolet Silverado 2500 HD 97.25 in. Drive Shaft Rear Side A-Premium APDS1074

4WD, 97.6 Inch BedLength; Automatic Transmission; 6L90 Transmission, 167.7 Inch Wheelbase, ID No. AAF5, AAHG, AAN5, KAF3, SF7
Part # APDS1074
Item # 1012XN1U
$472.99
Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
Dispatch within 1 business day
90 days free return

Specifications

Installation Position
Rear Side
Drive Shaft Length (in)
97.25
Wheel Drive
4WD
Brand
A-Premium
Warranty
3-Year
Item Located
United States
Quantity
1
Installation Position
Rear Side
Drive Shaft Length (in)
97.25
Wheel Drive
4WD
Drive Shaft Wall Thickness (in)
0.083
Grade Type
Regular
Greaseable Drive Shaft
Yes
Overall Length Adjustable
Yes
Shaft Diameter (in)
3.5
Shaft Material
Steel
Show all
Note
Driveshaft Assembly -- Fits 4WD (Four Wheel Drive) Only, Automatic Transmission, 6L90 Transmission, 97.6 Inch BedLength, 167.7 Inch Wheelbase, ID No. AAF5, AAHG, AAN5, KAF3, SF7.

Features

A-Premium Aftermarket Drive Shaft: Built for Great Performance
To maximize Drive Shaft performance, ensure full compatibility by verifying drivetrain configuration, transmission type, and vehicle specifications before purchase.
  • Installation feasibility is contingent upon the following parameters: Rear Side, 4WD, 97.25 inch.
  • Enhanced ride comfort with reduced vibrations.
  • Achieving Optimal Efficiency and Longevity with Extensive Durability Testing.
  • Produced from premium, resilient materials for unmatched endurance.
  • Backed by a Three-Year Service Warranty for Reliable Use.

Custom Fit Excellence. Meticulously engineered to integrate effortlessly with a wide range of engine and transmission modifications, providing an ideal solution for bespoke enhancements.
Enhance Throttle Responsiveness. Constructed with a focus on reducing vehicle weight, the Drive Shaft features a lightweight design that minimizes rotational mass. This innovation enables the engine to deliver quicker throttle response, enhancing the driving experience.
Show all

Specifications

Part interchange

Part numbers listed below indicate interchangeable parts. These parts share the same size, parameter, function and compatibility. However, please note that items from different brands may have minor variations.
976-770
84669667
84346695
20914859
22790503
22758987
25824514
23396462
22886995

Compatibility

Check if this fits your vehicle
Add vehicle
Check if this fits your vehicle
Add vehicle
This part is compatible with (2)vehicles
All
Chevrolet
GMC
2011 - 2013ChevroletSilverado 2500 HD
2011 - 2013GMCSierra 2500 HD

Highlights

Note detail

Shipping and warranty

  • Fast shipping

    The order will be dispatched within 1 business day, and the package will arrive within your order's estimated date. Please click Shipping Policy for more details.

  • Easy return

    Every order comes with a 90-day free return which means you don't have to pay for a return slip. Please click Return Policy for more details.

  • Warranty policy

    All parts are quality-tested to meet the top-tier aftermarket standards. Please click Warranty Policy for more details.

Why choose A-Premium.com

Free Return

Return your purchase within 90 days at no cost.

Free Shipping

Free standard shipping on all orders, no minimum required.

24/7 Service

Get assistance from live customer service team 24/7.

Guaranteed Fit

We guarantee that all parts will fit your vehicle perfectly.

Frequently Asked Questions

How do I measure driveshaft length?

1. <b>Start at the front flange</b><br> Place one end of the tape measure at the outer edge of the front flange.<br> 2. <b>Extend the tape to the rear flange or yoke</b><br> Stretch the tape measure to the outer edge of the rear flange.<br> 15974. <b>Record the total length</b><br> Note the distance shown on the tape measure is the <b>end-to-end</b> length of the driveshaft, typically measured in <b>inches</b>.

How can I verify my engine type before buying a driveshaft?

To make sure you order the correct driveshaft, it’s important to confirm your vehicle’s engine type. Here are two easy ways to check:<br> 1.<b>Check the VIN</b><br> The VIN is a 17-digit code found on your dashboard near the windshield or inside the driver’s door.<br> The 8th digit usually represents your engine type (this may vary by manufacturer).<br> 15973.<b>Look under the hood</b><br> Check for engine labels or stickers — often found on the valve cover, engine block, or radiator support.<br> If you're unsure, feel free to send us your VIN and vehicle details — we're happy to help verify it for you!

How do I confirm my vehicle’s transmission type before ordering driveshaft?

<b>Use the VIN to check the transmission type</b><br> You can find out what transmission your vehicle has by using your VIN. It’s usually located on the dashboard or inside the driver’s door. Just enter it into a VIN check website and it will show you whether your car has an automatic, manual, or CVT transmission.<br> <b>Check the gear shift lever</b><br> You can also tell what kind of transmission your car has by looking at the gear shifter:<br> If it has “P, R, N, D,” it’s automatic.<br> If it has numbers like “1, 2, 3, 4, 15976”and you shift manually, it’s manual.<br> Some CVTs look like automatics but may have “L”or“S”on the shifter.<br>

How do I measure driveshaft wheelbase(<b>Front to Rear Axle</b>)?

To ensure you get the correct driveshaft length, it’s important to measure your wheelbase — the distance between the front and rear axles of your vehicle. Here's how to do it properly:<br> 1.<b>Park on a flat surface</b><br> Make sure the vehicle is parked on level ground for the most accurate measurement.<br> 2.<b>Choose one side of the vehicle</b><br> Pick either the driver or passenger side. Measuring along one side is sufficient.<br> 15974.<b>Measure from center to center</b><br> Use a tape measure to go from the center of the front wheel hub (not the edge of the tire) to the center of the rear wheel hub.<br> This measurement is your vehicle's actual wheelbase, which helps determine the correct driveshaft length needed, especially for custom orders. It is not the length of the driveshaft itself.

Before ordering driveshaft, what information do you need pay attention?

Before ordering your driveshaft, please confirm:<b>Year / Make / Model</b>; <b>Engine type</b>; <b>Drive type</b>; <b>Transmission type</b>; <b>Bed Length & Cab Type</b>; <b>Position</b>
