The Ultimate Guide to O2 Sensors: Boosting Engine Performance and Efficiency

If that dreaded check engine light is glowing on your dashboard, there is a high probability that a faulty oxygen sensor (also known as a lambda sensor) is the culprit. While small, this component is a cornerstone of modern emissions control, playing a massive role in your vehicle’s overall engine performance, fuel economy, and environmental impact.

In this guide, we’ll break down exactly how an O2 sensor works, where to find them in your exhaust system, and how to handle a replacement to avoid decreased fuel efficiency.

An oxygen sensor is a critical electronic device located within the exhaust stream. Its primary job is to perform a real-time measurement of the amount of oxygen present in the exhaust gases.

Think of it as the engine computer’s “nose.” By “smelling” the exhaust, the sensor sends a voltage signal to the ECU to determine if the fuel mixture is too rich (excess fuel) or too lean (slightly lean). When the sensor detects any deviation, the ECU adjusts the fuel injector pulse width to maintain the combustion cycle.

Types of Oxygen Sensors: Narrow Band vs. Wideband

To optimize your engine management systems, it's important to know which type of sensor your vehicle uses:

• Narrow Band Sensors: These provide a limited range of data. A less common version is the titania sensor, which changes its electrical resistance in response to oxygen concentration.

• Wideband Sensors (UEGO): These allow for a much wider measurement range. They incorporate an electrochemical gas pump to provide rapid adjustments to fuel delivery, making them essential for modern high-performance cars.

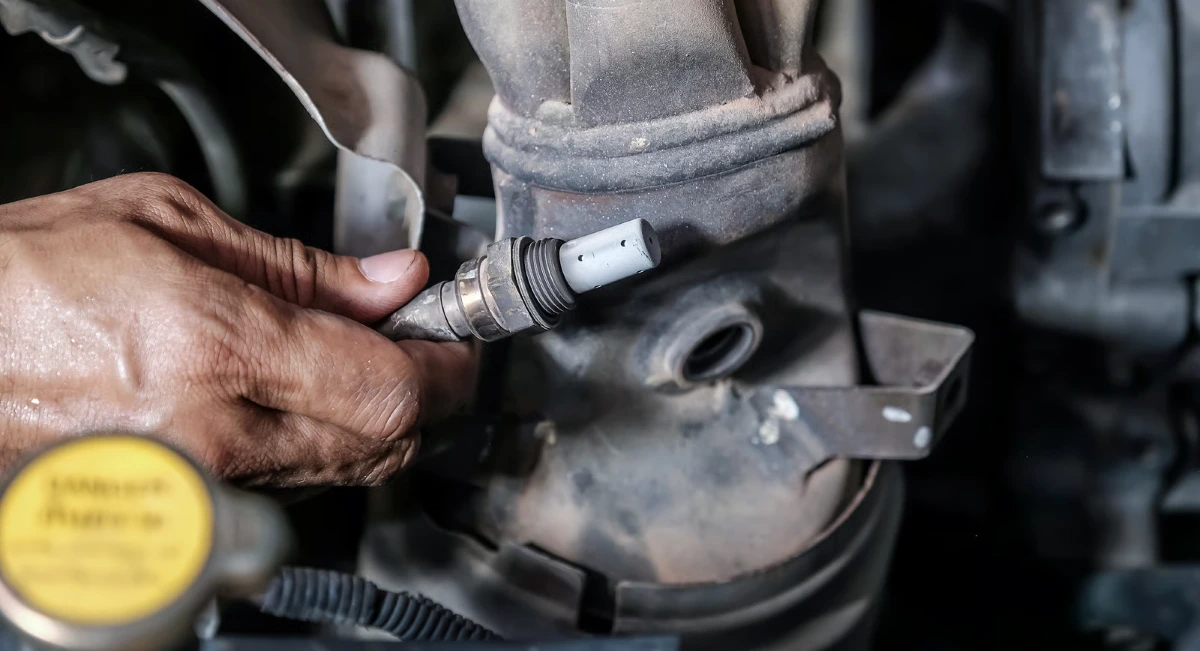

Most cars have oxygen sensors screwed directly into the exhaust pipes. They are strategically placed to monitor the gas before and after it passes through the catalytic converter.

1. 1. Upstream Sensor (Sensor 1)

   Located before the catalytic converter, the upstream sensor monitors the raw exhaust coming straight out of the engine cylinders. This is the primary "control" sensor. The ECU adjusts the air-to-oxygen ratio based on this signal to maintain a mostly stoichiometric ratio—the ideal balance for complete combustion.

2. 2. Downstream Sensor (Sensor 2)

   Located after the catalytic converter, the downstream sensor monitors the efficiency of the catalyst. By comparing the oxygen molecules in the post-converter gas to the upstream data, the engine computer can determine if the converter is successfully reducing nitrogen oxide pollutants, carbon monoxide, and increased NOx emissions.

How Many O2 Sensors Does a Car Have?

The total number of sensors typically depends on your vehicle's engine configuration:

• 4-Cylinder Engines: Usually feature 2 sensors (one upstream, one downstream).

• V6 or V8 Engines: These often have 4 sensors across two "banks" (sides) to monitor each cylinder group.

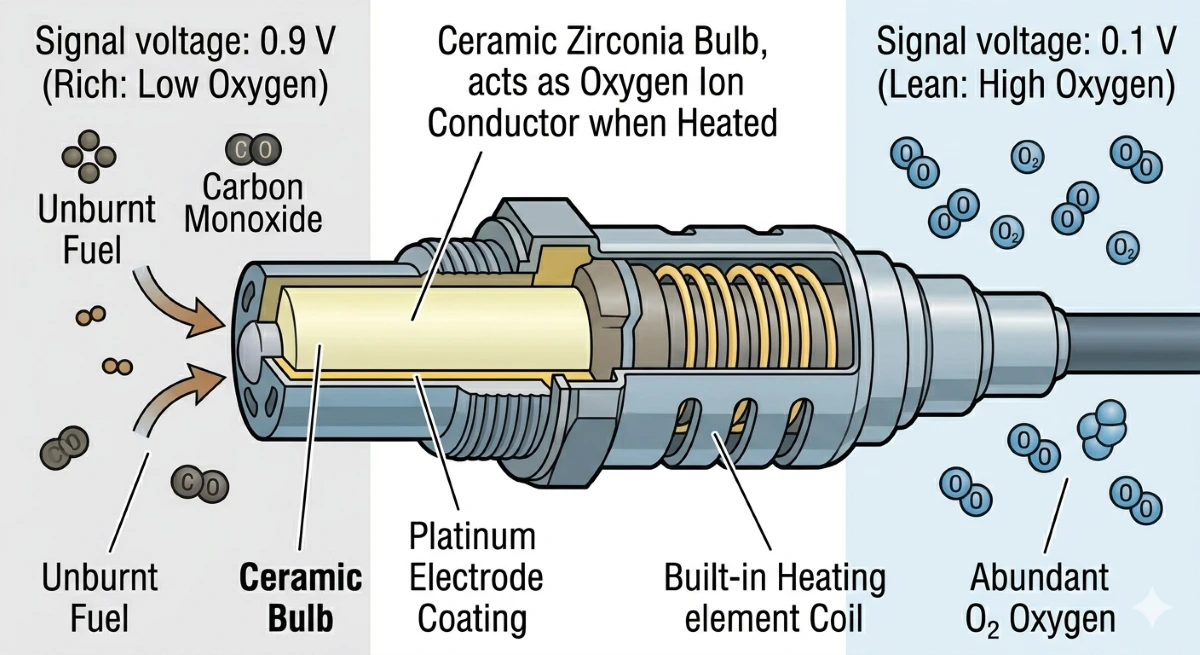

Most modern oxygen sensors utilize a ceramic bulb coated with platinum and operate effectively when heated to approximately 316°C (600°F). To reduce response time, newer models feature built-in heating elements.

1. Chemical Interaction: Once heated, the ceramic becomes a conductor for oxygen ions.

2. Voltage Generation: In zirconia-based sensors, the device compares oxygen levels in the exhaust to ambient air to generate a specific voltage (usually 0.1V to 0.9V).

3. The Signal: High Voltage (0.9V): Signals rich mixtures (low oxygen). Low Voltage (0.1V): Signals a lean mixture (high oxygen).

4. Closed Loop Mode: The ECU uses this data to create a feedback loop, allowing the engine to quickly turn between slightly rich or slightly lean states to protect the catalytic converter.

How Oxygen Sensors Drive Vehicle Performance

Performance isn’t just about horsepower; it’s about how efficiently your engine converts fuel into motion. Modern cars rely on a finely tuned balance of air and fuel, managed by the engine management computer.

At the heart of this system is the oxygen sensor, which ensures the engine operates at a mostly stoichiometric ratio ($14.7:1$ for gasoline). This balance leads to improved engine performance, reduced carbon monoxide, and more efficient fuel consumption. If the sensor fails, it can result in inefficient fuel consumption, increased NOx emissions, and even potential engine damage.

A failed oxygen sensor can cause excess fuel to pass into the exhaust, leading to overheating and the catastrophic failure of the catalytic converter. Look for these indicators:

• Check Engine Light: Often the first sign, triggering diagnostic codes like P0132 or P0420.

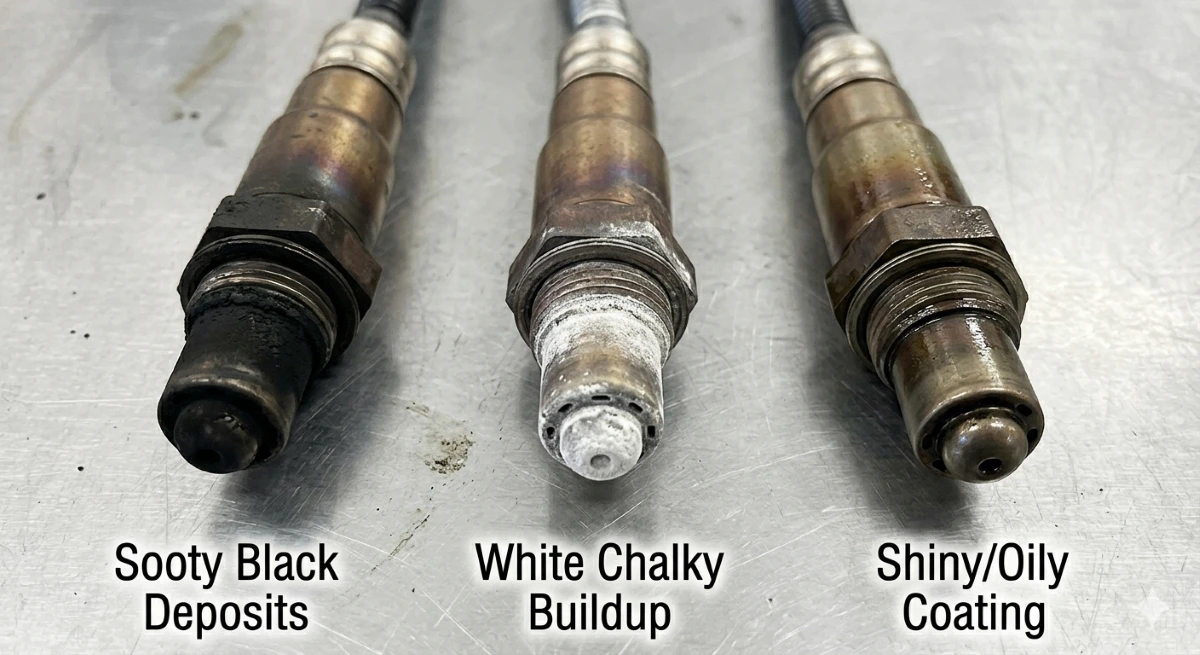

• Sooty Black Deposits: Caused by too much unburned fuel (running rich) due to contamination.

• White Chalky Buildup: Indicates contamination from liquid coolant or silicone.

• Shiny/Oily Coating: A sign of oil blow-by, which poisons the sensor's delicate technology.

Oxygen sensor fails are often caused by prolonged operation in harsh conditions. Common culprits include:

• Contamination: Silicates from liquid coolant (gasket leaks) or phosphorus from oil blow-by can poison the oxygen molecules sensing element.

• Extreme Heat: Engine misfires can cause unburned fuel to ignite in the exhaust, leading to catastrophic failure.

• Age: Most oxygen sensors (heated) have a lifespan of 100,000 miles, while unheated ones last 30,000 to 50,000 miles.

Because they contain delicate oxygen ions sensing technology, faulty sensors cannot be repaired. However, replacement is a rewarding DIY project.

Tools Needed

• O2 Sensor Socket

• Ratchet or Breaker Bar

• Penetrating Oil

• Anti-seize lubricant

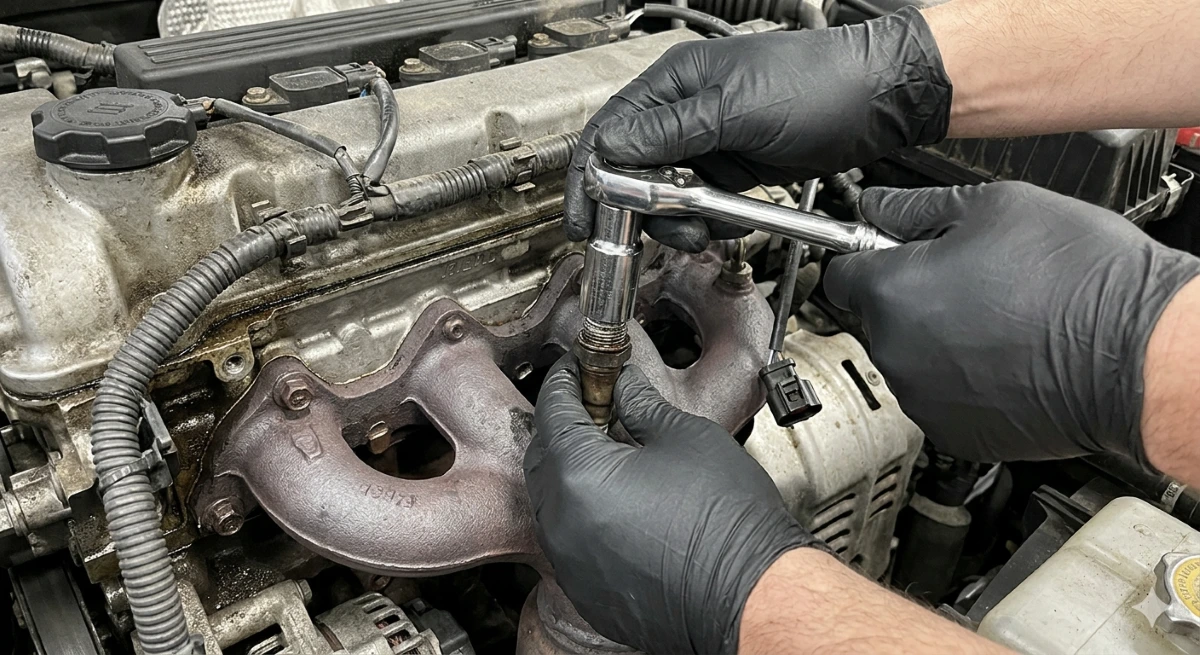

The Replacement Process

1. Diagnose: Use an OBD-II scanner to identify error code.

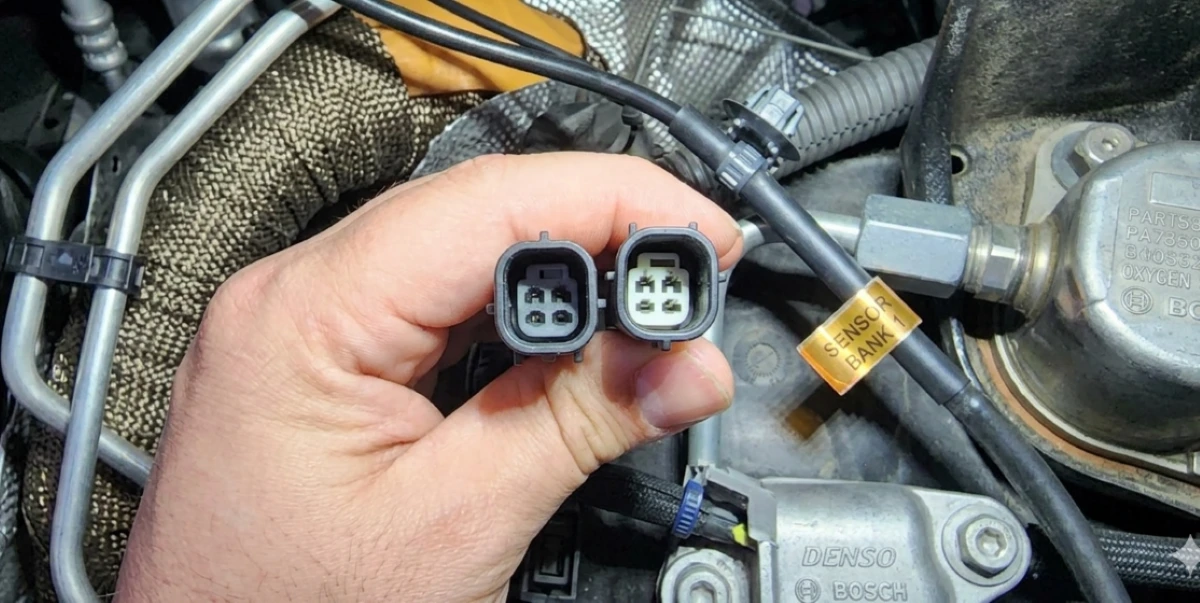

2. Inspect Wiring: Check that the surrounding harness is free from wear.

3. Prep: Use penetrating oil on the rusted exhaust threads.

4. Remove & Install: Use a specialized O2 sensor socket to unscrew the old unit. Hand-thread the new sensor (use anti-seize!) and torque to spec.

5. Reset: Clear the engine light and let the ECU re-learn the feedback loop.

Best Practices for DIYers

• Don't Ignore the Light: A drastic loss in MPG is usually the first sign of a "lazy" sensor.

• Preventative Replacement: If you're at 100k miles, replacing the upstream sensor can prevent engine damage and decreased fuel efficiency.

• Choose Quality: For guaranteed fit and engine performance, use high-quality aftermarket parts like those from A-Premium.

By handling these repairs yourself, you ensure your vehicle maintains its stoichiometric ratio at constant speed and low load conditions, saving money at the pump and the repair shop.
