Should You Replace Upstream and Downstream O2 Sensors at the Same Time?
This guide explains the critical roles these sensors play in your exhaust system and why a synchronized replacement is the smartest move for your vehicle's long-term health.
When a fault code like P0132 or P0141 triggers the check engine light on your dashboard, your first instinct might be to swap out only the failing unit. However, in modern cars, treating the upstream sensor and downstream sensor as a matched set is the professional standard for maintaining engine performance and protecting your exhaust system.
How Many Oxygen Sensors Does My Car Have?

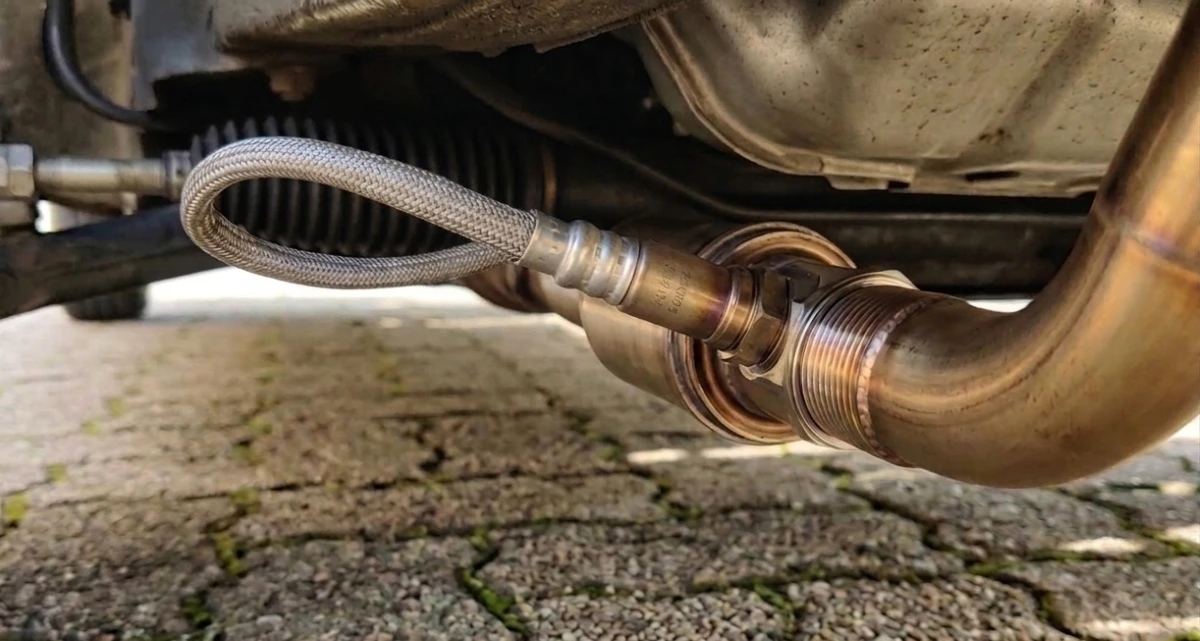

The number of oxygen sensors in a vehicle can vary significantly based on the year, make, model, and engine type. Most modern vehicles have at least two: one located in the exhaust manifold before the catalytic converter (pre-cat) and one or more positioned downstream (post-cat) to monitor efficiency. In many late-model vehicles, it is common to find four sensors—two for each cylinder bank.
What Is the Difference Between Upstream and Downstream O2 Sensors?
To understand why simultaneous replacement is critical, you must look at how the engine management computer (or ECU) maintains the air fuel ratio. These important sensors allow the engine to operate at a ratio very close to 14.7:1, which is ideal for emissions control.
-
Upstream Sensor (The Manager): This lambda sensor monitors the exhaust stream in real-time. It enables the system to determine if the combustion chamber is running a lean mixture or a rich mixture.
-
Downstream Sensor (The Auditor): This sensor verifies the operation of the emissions system by comparing oxygen present at the tailpipe to the gases measured by the upstream sensor.
Most modern versions feature a ceramic element made of zirconium dioxide, which acts as a solid-state electrochemical fuel cell to produce a voltage output corresponding to oxygen levels.
What Are the Symptoms of a Failing Oxygen Sensor?
When an oxygen sensor fails, your vehicle will display several red flags:
-
Increased fuel consumption and poor fuel economy.
-
Rough idling, engine stalling, or other engine performance problems.
-
Exhaust fumes that smell like gasoline due to unburnt fuel.
Common causes of failure include contamination from excessively rich fuel mixtures, oil blow-by, or burnt engine coolant due to gasket leaks.
Why Should I Replace O2 Sensors in Pairs?
1. Preventing "Lazy Sensor" Syndrome
O2 sensors don't always fail abruptly; their service life often ends with a "drift" in accuracy. Over 60,000+ miles, the oxygen ions and zirconia elements become sluggish due to soot buildup, slowing voltage transitions. Pairing a new, high-sensitivity A-Premium sensor with an aged one can cause the ECU to detect a discrepancy, triggering a false P0420 code for the catalytic converter.
2. Protecting the Catalytic Converter
O2 sensors are essential for reducing toxic pollutants like nitrogen oxide pollutants and carbon monoxide. If sensors are out of sync, excess fuel or unburned fuel can enter the exhaust, reaching temperatures high enough to melt the internal structure of the catalytic converter—a repair that far exceeds the cost of a second oxygen sensor.
3. Narrow Band vs. Wide Band Precision
Oxygen sensors are categorized by their technology. While narrow band sensors react to a limited range, wideband air/fuel ratio sensors provide a continuous linear signal for precise fuel control. Maintaining matched technology across the exhaust system ensures your ignition and combustion intervals remain perfectly timed.
How Long Do Oxygen Sensors Typically Last?
The typical lifespan of an unheated oxygen sensor is about 30,000 to 50,000 miles, while heated sensors (often identified by four wires) can last up to 100,000 miles. Proactive replacement prevents increased fuel consumption and engine lag.
|
Vehicle Mileage |
Recommendation |
|
Under 50,000 miles |
Replace the failing sensor and inspect for carbon buildup. |
|
50,000 – 100,000 miles |
Highly Recommended to replace both to maintain system sync. |
|
Over 100,000 miles |
Mandatory dual replacement to avoid "lazy" sensor errors. |
Can I Replace an O2 Sensor Myself?
Replacing an O2 sensor is generally a straightforward, DIY-friendly task. Before starting, use a diagnostic tool to confirm the fault code and ensure the issue isn't in the wiring.

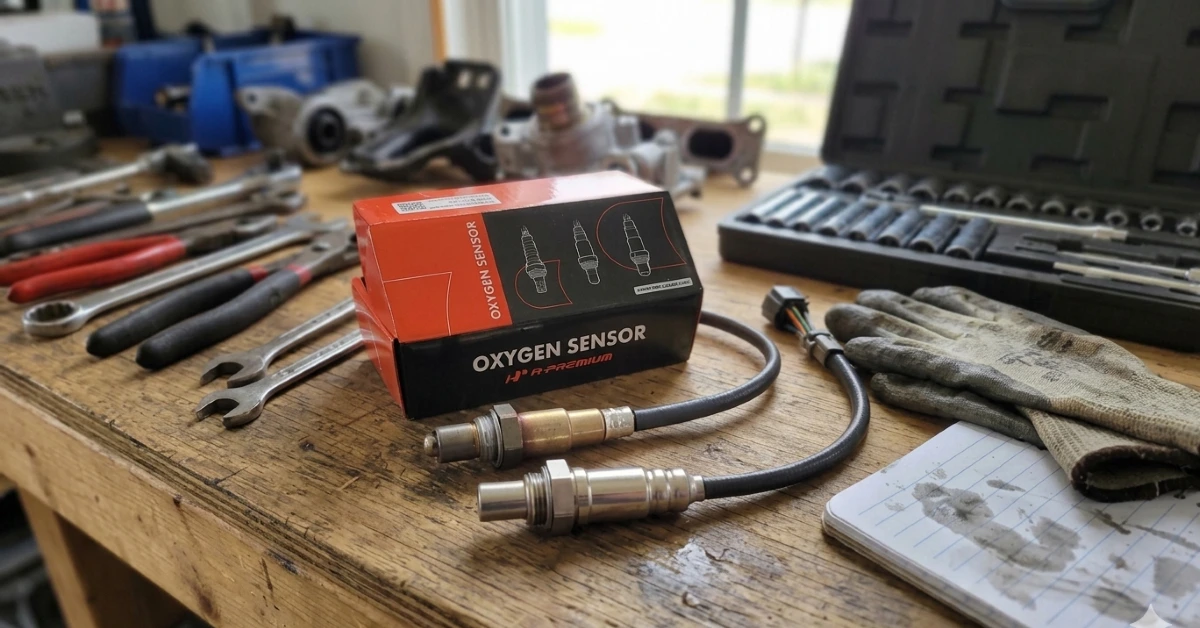

Tools you will need:
-
Hydraulic jack and jack stands.
-
Torque wrench and a 22mm wrench (specifically for oxygen sensors).
-
Penetrating oil to loosen rusted or corroded sensors.
Pro Tip: Always ensure the heater circuit is functioning to reach operating temperature quickly, and avoid touching the sensor tip during installation to prevent contamination.
