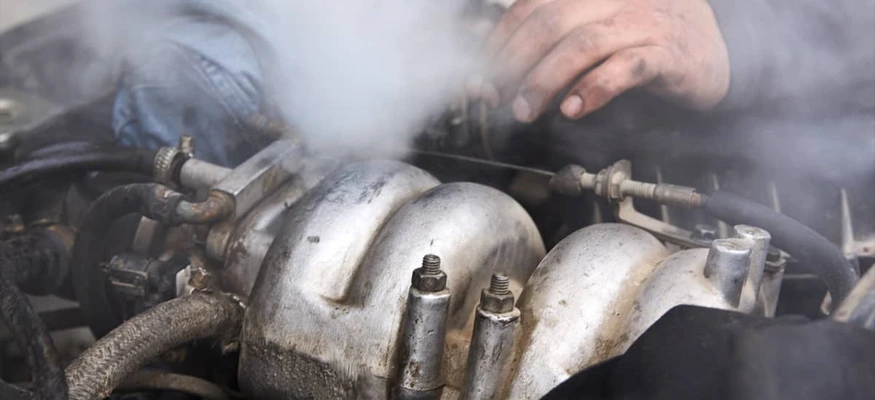

P0442 Code: EVAP System Small Leak – Causes, Symptoms & Fix Guide

The P0442 trouble code is one that often flies under the radar, but ignoring it can lead to bigger problems down the road. This diagnostic code indicates a small leak in the vehicle's evaporative emissions control (EVAP) system - a seemingly minor issue that carries some important implications. From reduced fuel efficiency to potential emissions compliance concerns, a P0442 code warrants prompt attention and resolution. In this post, we'll explore the common causes of EVAP system leaks, the risks they pose, and the steps you can take to properly diagnose and fix this pesky trouble code before it snowballs into something more serious.

The vehicle's onboard diagnostics have triggered the P0442 diagnostic trouble code, signaling the presence of a minor leak within the evaporative emissions control (EVAP) system. This EVAP system is responsible for capturing and containing fuel vapors, but the P0442 code indicates that a slight leak has allowed some of these vapors to escape, rather than being properly routed back into the engine. While not a severe issue, this P0442 code warrants attention to maintain emissions compliance and ensure the proper functioning of the EVAP system.

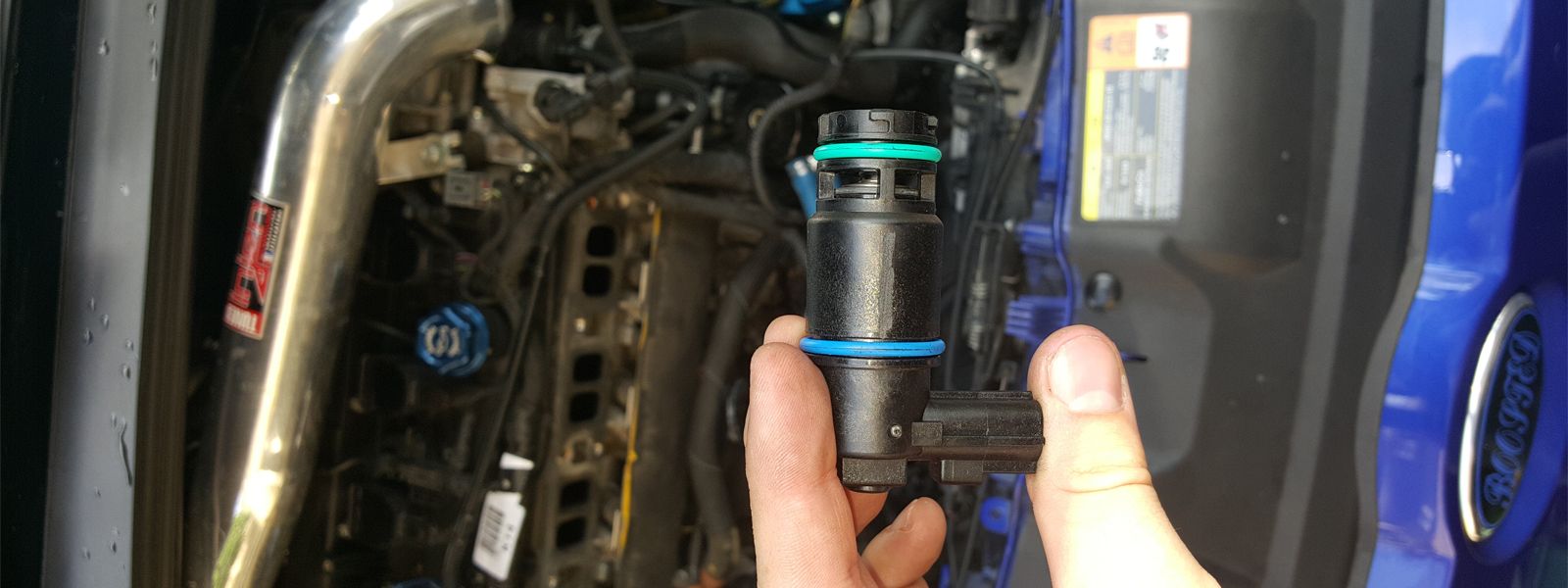

The automobile's evaporative emissions control (EVAP) apparatus serves the crucial role of apprehending and containing fuel vapors emanating from the fuel tank and associated fuel system components, preventing their uncontrolled release into the atmosphere. This EVAP system channels these vapors to an absorbent charcoal canister for temporary storage, and during engine operation, a purge valve opens to draw the captured vapors into the engine intake where they are combusted. Pressure and vacuum sensors continuously monitor the EVAP system's soundness, which is indispensable for satisfying emissions regulations by governing the unrestrained discharge of fuel vapors.

• Illuminated Check Engine Light: The primary symptom is the illumination of the vehicle's Check Engine Light or Malfunction Indicator Lamp (MIL) on the dashboard.
• Fuel Odor: A minor fuel odor may be noticeable, as the small EVAP system leak allows some fuel vapors to escape.
• Decreased Fuel Economy: The EVAP system leak can result in a small decrease in fuel efficiency, as some of the fuel vapors are not being properly captured and recycled.
• Difficulty Refueling: Drivers may notice the fuel pump shutting off more frequently during refueling, as the EVAP system is unable to properly vent the fuel vapors.
• Increased Emissions: The EVAP system leak will result in slightly higher hydrocarbon emissions from the vehicle, though typically not enough to cause a noticeable difference in emissions testing.

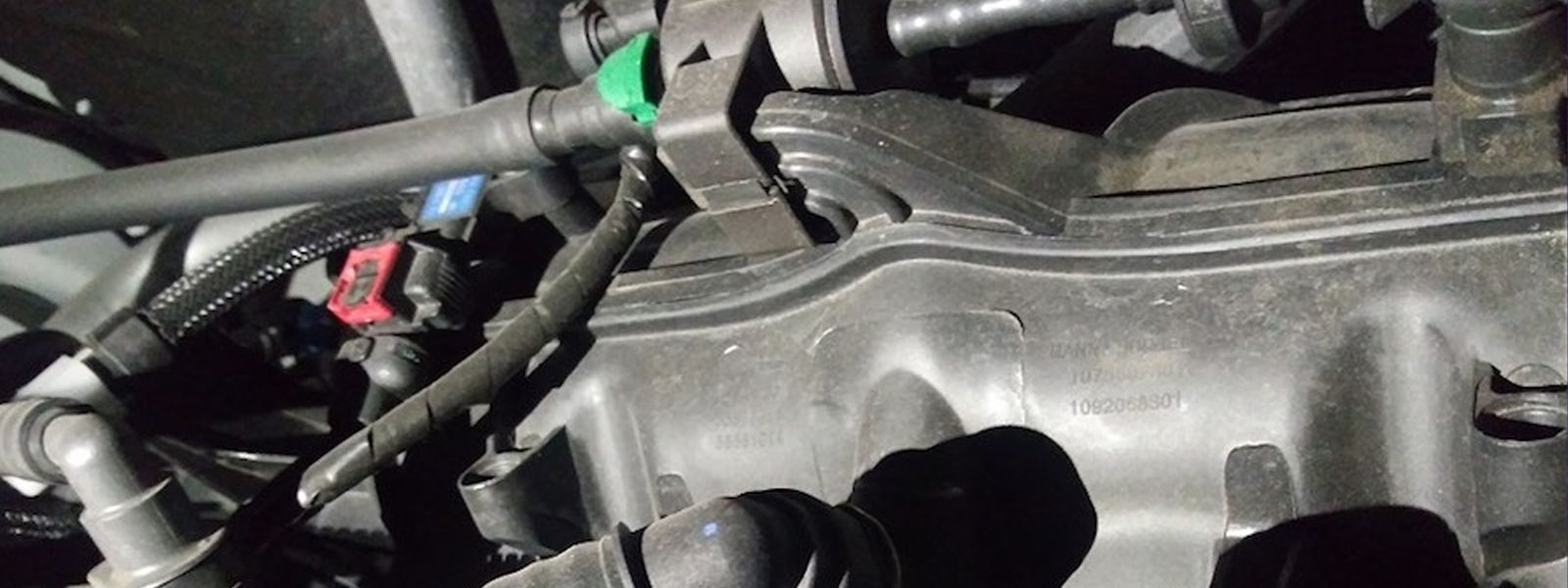

• Small Leak in the EVAP System: The most common cause is a minor leak somewhere in the evaporative emissions (EVAP) system. This could be a crack, hole, or loose connection in the hoses, lines, or fittings.
• Malfunctioning EVAP Purge Valve: The EVAP purge valve, responsible for drawing the stored fuel vapors into the engine for combustion, may be stuck open or failing, causing a leak.
• Faulty EVAP Canister: The charcoal-filled EVAP canister, which temporarily stores the fuel vapors, may be cracked or damaged, leading to a leak.
• Loose or Damaged Fuel Cap: A loose, damaged, or missing fuel cap can allow fuel vapors to escape, triggering the P0442 code.
• Blocked EVAP System: If the EVAP system becomes blocked or obstructed, it can prevent proper venting and lead to a fault code.
• Damaged EVAP System Wiring or Sensors: Issues with the electrical connections, wiring, or pressure/vacuum sensors in the EVAP system can also cause the P0442 code to be set.
• Software or ECU Issues: In some cases, the P0442 code may be caused by a problem with the vehicle's engine control unit (ECU) software or programming.

Resolving the P0442 diagnostic trouble code begins with a comprehensive inspection of the vehicle's evaporative emissions (EVAP) system, thoroughly scrutinizing it for any potential leaks. This investigative process can be facilitated through the use of a smoke machine or alternative leak detection methods, enabling the identification of any cracks, openings, or loose connections in the EVAP system's hoses, lines, and associated fittings. Any compromised or leaking components must be promptly replaced to restore system integrity.

The next step involves evaluating the EVAP purge valve, ensuring its proper operation by verifying its ability to open and close as intended. Should the purge valve be found to be stuck in an open position or exhibiting any form of malfunction, it will necessitate replacement. Concurrently, a visual examination of the EVAP canister should be conducted to detect any signs of cracking or deterioration, with the canister replaced if necessary. The fuel cap also warrants inspection, checking for a secure seal and the absence of any looseness or damage. If the fuel cap is deemed faulty, it must be replaced to prevent the unwanted escape of fuel vapors.

Continuing the diagnostic process, the EVAP system should be assessed for any potential blockages or obstructions, which can be addressed by removing the obstruction or replacing the affected component. Additionally, the EVAP system's wiring and sensors must be verified using a multimeter, with any defective components repaired or replaced as required. In some instances, if the P0442 code persists even after addressing the physical EVAP system issues, the engine control unit (ECU) may need to be reprogrammed or replaced by a qualified technician. Upon resolving the root cause, the P0442 code should be cleared from the vehicle's computer, and the EVAP system's proper functionality should be confirmed.

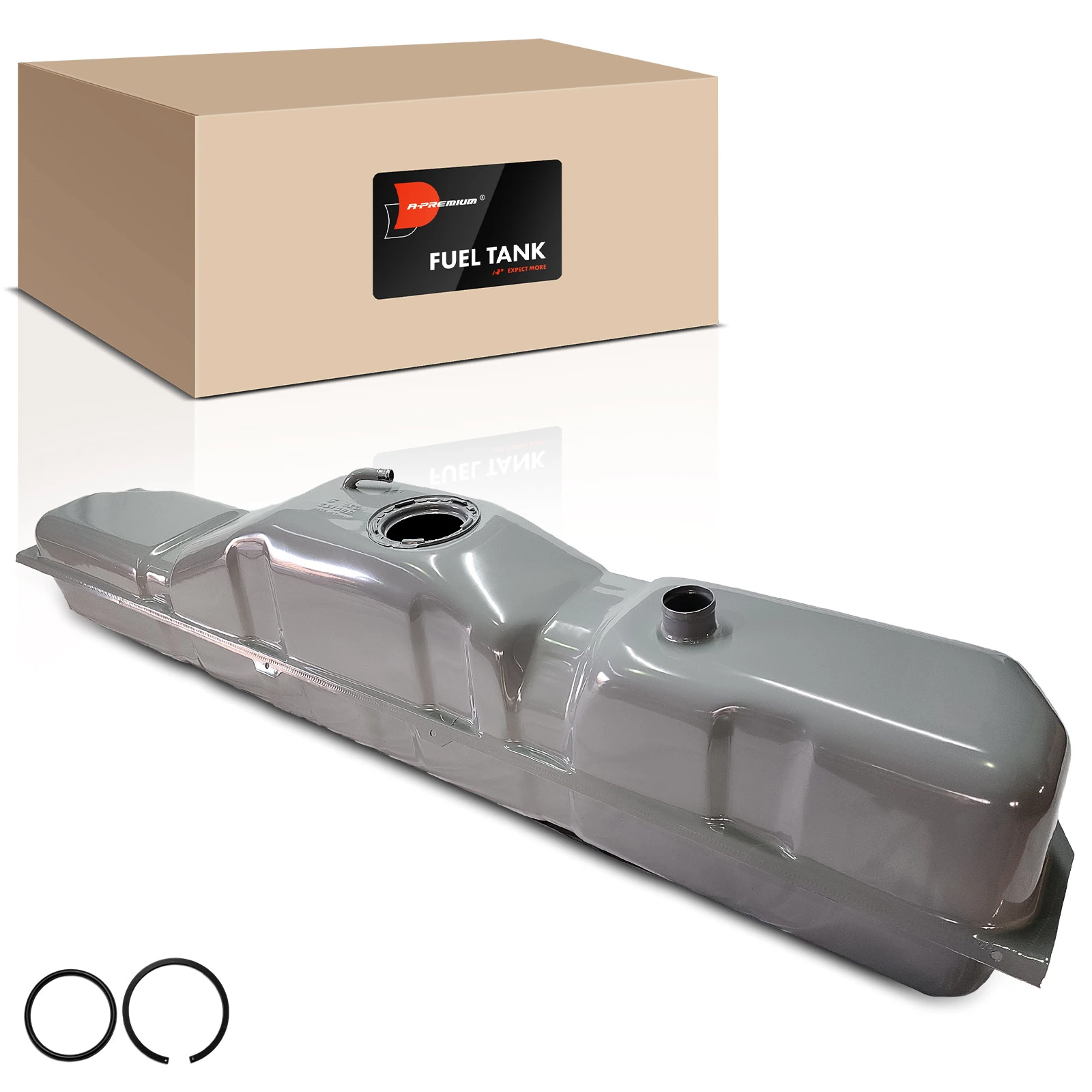

If you require high-quality parts to address the P0442 code, consider turning to A-Premium, a brand trusted for its reliable and durable components. With A-Premium, you can have confidence that your repairs will be long-lasting and effective. We not only provide a 90-day free return policy and relevant warranty, but our customer service team is also available 24 hours a day, 7 days a week to serve you.
