P0141 Code: Oxygen Sensor Heater Circuit Malfunction (Bank 1, Sensor 2)

The OBD-II index is huge, containing about 11,000 different problem codes, of which P0141 is just one of them. The purpose of this blog is to explore the details, underlying causes, and observable symptoms related to Code P0141, so that you can get a better understanding of the problem and design appropriate solutions.

The fault code P0141 is a defective oxygen sensor heater circuit for group 1 sensor 2 in the engine control module (ECM) of the vehicle. This code indicates that there is a problem with the heating element of the oxygen sensor, which is located downstream (after the catalyst) in the cylinder bank comprising cylinder 1.

The oxygen sensor measures the amount of oxygen in the exhaust and provides ECM with feedback for proper fuel control and emission control. The heater circuit of the sensor is in charge of bringing the sensor up to the working temperature quickly to make sure that the readings are accurate.

When the vehicle's engine control module (ECM) identifies a heater circuit that is not functioning properly or has failed in the oxygen sensor for Group 1 Sensor 2, it activates the P0141 trouble code and causes the Check Engine Light to illuminate.

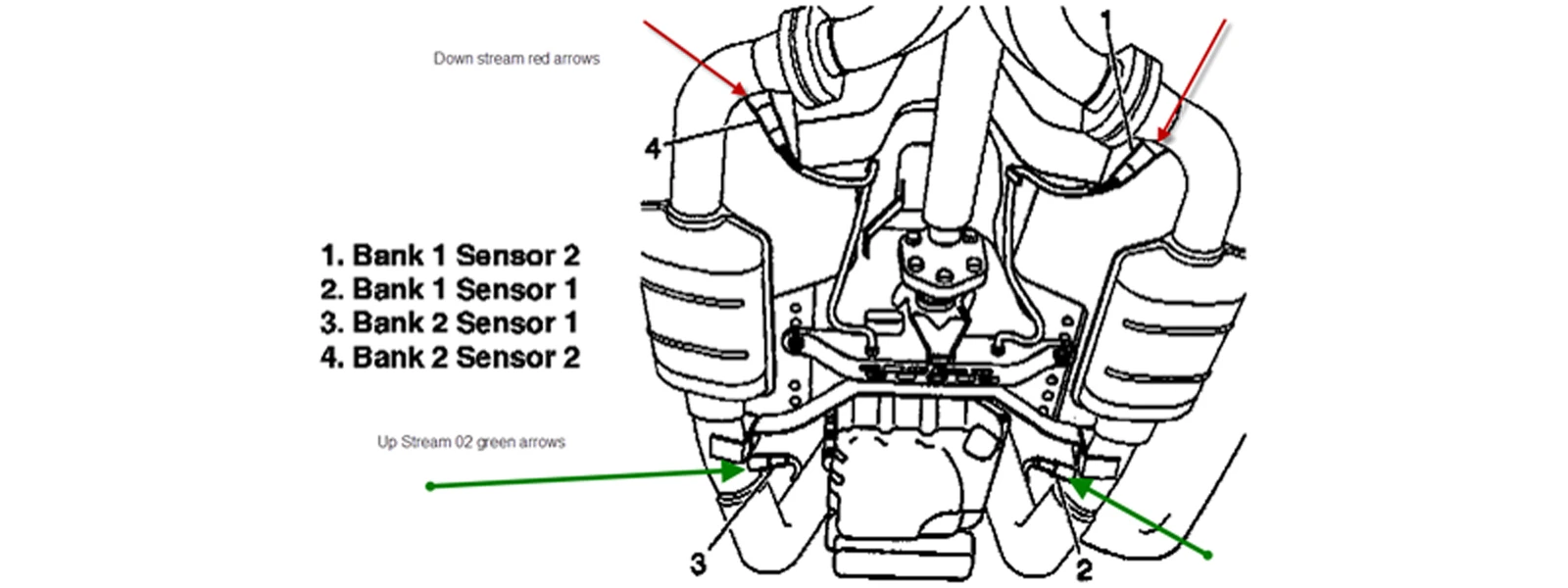

Bank 1 vs bank 2

In the realm of automotive engines, the terminology "bank 1" and "bank 2" designates the two distinct groups of cylinders found in multi-cylinder engines. While the precise arrangement of these banks can vary depending on the specific engine design, generally speaking, "bank 1" comprises the set of cylinders that includes cylinder number 1, whereas "bank 2" encompasses the cylinders that do not include cylinder number 1.

Distinguishing between bank 1 and bank 2 is crucial in diagnosing and rectifying engine issues. This distinction aids in pinpointing specific cylinders or components associated with a particular bank during the analysis of diagnostic trouble codes or the execution of repairs. It's imperative to note that Bank 1 always encompasses the location of cylinder number 1. For instance, in Ford pickups, Bank 1 is situated on the passenger side, whereas in Chevy and Dodge pickups, it's positioned on the driver side.

Knowing this distinction is paramount, as working on the wrong sensor can lead to unnecessary complications. Therefore, before proceeding with clearing any diagnostic codes, ensure that you have a clear understanding of the difference between bank 1 and bank 2.

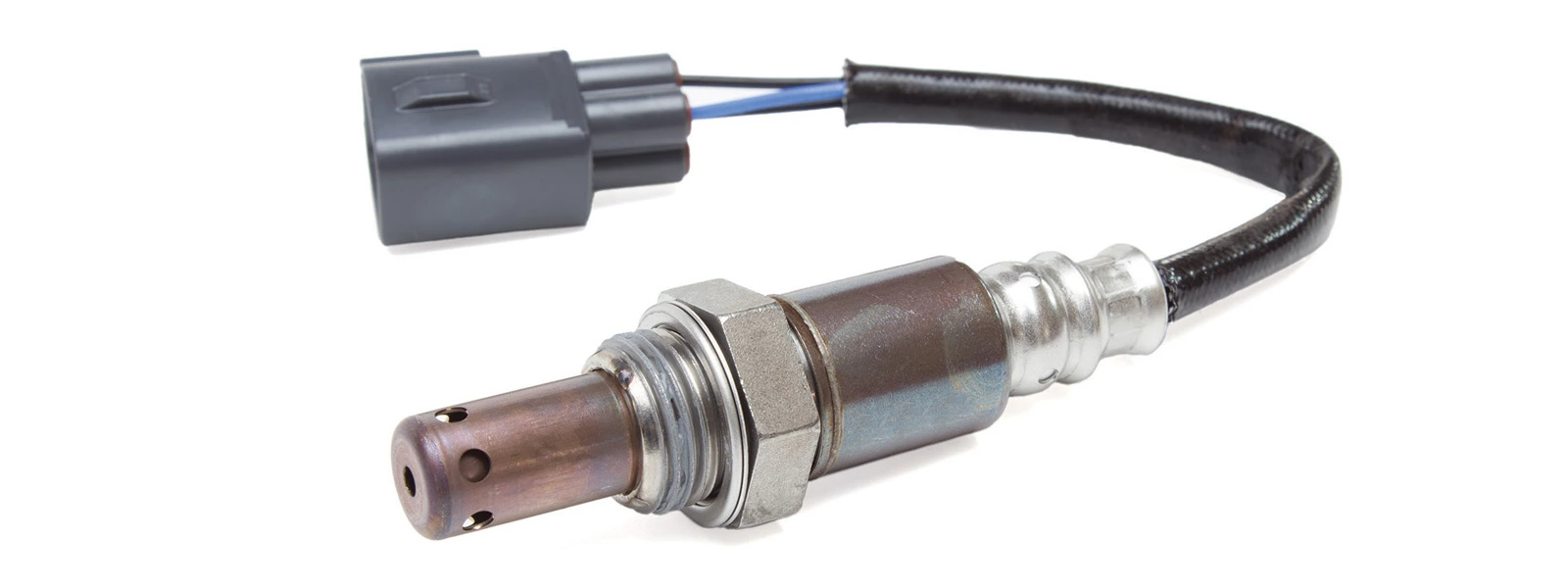

The oxygen sensor heater, an integral part of the oxygen sensor, quickly brings the sensor to its ideal operating temperature. This sensor monitors the oxygen levels in a vehicle's exhaust gases and provides feedback to the engine control module (ECM). The heater, controlled by the ECM, rapidly heats up the sensor's internal components on engine startup, enabling accurate measurements. This improves engine performance and efficiency, especially during warm-up, leading to better fuel economy, reduced emissions, and optimal engine operation.

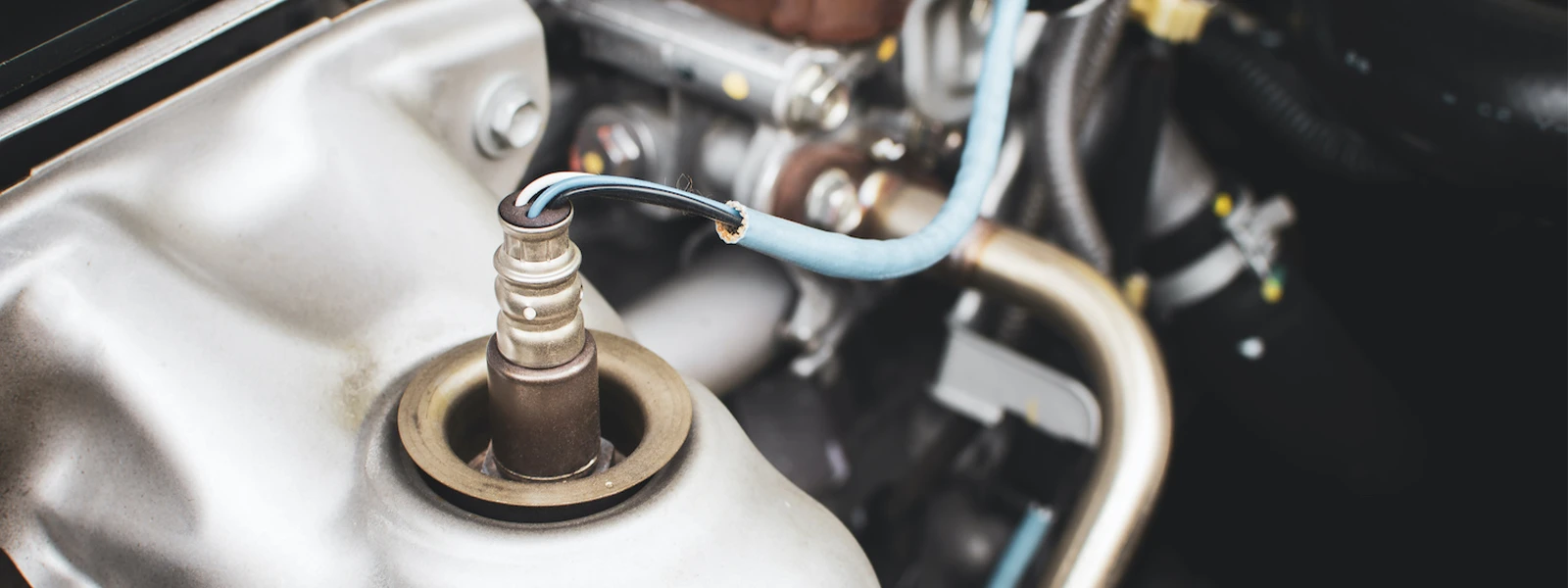

Where is the Oxygen Sensor Heater Circuit Located

The oxygen sensor heater circuit is located within the oxygen sensor itself. The oxygen sensor is typically mounted in the exhaust system, either in the exhaust manifold or in the exhaust pipe downstream of the manifold. The heater circuit is a part of the sensor assembly and is integrated into the sensor housing. It consists of heating elements that warm up the sensor to its operating temperature quickly, allowing it to provide accurate readings of oxygen levels in the exhaust gases.

A P0141 code can be caused by various factors, including:

• Faulty oxygen sensor: The oxygen sensor itself may be defective or have a damaged heater element.
• Wiring problems: Issues with the wiring connected to the oxygen sensor, such as frayed wires or loose connections, can trigger the code.
• Blown fuse: If the fuse in the oxygen sensor heater circuit has blown, it can result in the P0141 code.
• ECM malfunction: A malfunction in the engine control module (ECM) can disrupt the operation of the oxygen sensor heater circuit.
• Exhaust leaks: Leaks in the exhaust system near the oxygen sensor can affect its performance and lead to the code.
• Short circuits: Any short circuits in the oxygen sensor heater circuit, whether to ground or voltage, can cause the P0141 code.
• Corrosion or contamination: Corrosion or contamination on the oxygen sensor or its connectors can interfere with proper functioning.

To address this issue, it is advisable to conduct a comprehensive inspection of the oxygen sensor, wiring, and related components. If you are uncertain or lack experience in this matter, seeking assistance from a qualified mechanic is recommended.

When a P0141 trouble code is present, there are several symptoms that may manifest in the vehicle. One of the most common signs is the illumination of the Check Engine Light. This serves as a warning from the engine control module (ECM) that a malfunction has been detected in the oxygen sensor heater circuit.

Another symptom is reduced fuel efficiency. A faulty oxygen sensor heater can cause incorrect readings and disrupt the proper control of the fuel mixture. As a result, the vehicle may experience decreased fuel efficiency, requiring more fuel than usual to operate.

Poor engine performance is also a potential symptom of a P0141 code. The ECM relies on accurate data from the oxygen sensor to adjust the air-fuel mixture. If the oxygen sensor heater is malfunctioning, the sensor may provide inaccurate readings. This can lead to rough idling, hesitation during acceleration, or a noticeable decrease in engine power.

Furthermore, a malfunctioning oxygen sensor heater circuit can result in a failed emissions test. The oxygen sensor plays a critical role in monitoring and regulating emissions. When the heater circuit is not functioning properly, the oxygen sensor may not reach its optimal operating temperature. This can lead to inaccurate readings and higher emission levels, causing the vehicle to fail an emissions test.

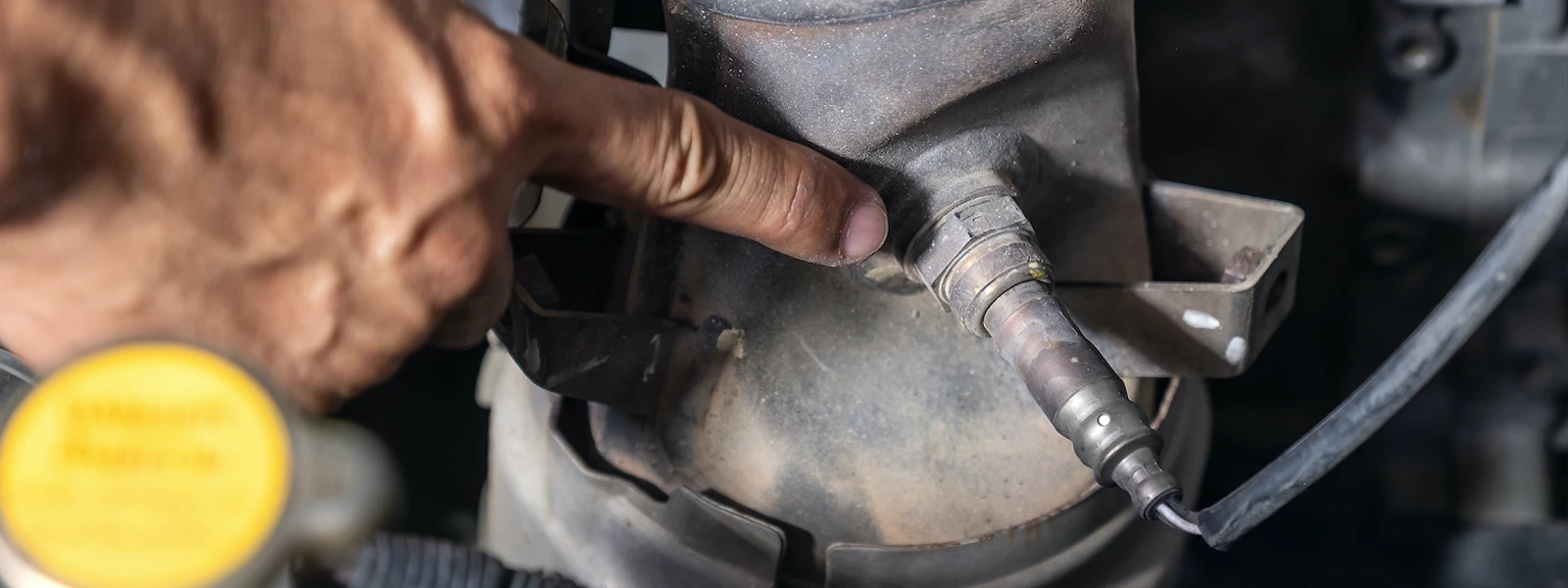

To fix a P0141 code, you can follow the steps below:

1.Inspect the wiring meticulously: Commence by visually examining the wires linked to the oxygen sensor and its heater circuit. Keep a close eye out for any signs of deterioration, including frayed wires, loose connections, or corroded terminals. Promptly fix or replace any damaged wiring components as needed.

2.Check the fuse: Verify if the fuse for the oxygen sensor heater circuit is intact. If the fuse is blown, replace it with a new one of the same rating. However, keep in mind that a blown fuse often indicates an underlying issue, so further diagnostics may be needed.

3.Test the oxygen sensor: For potential malfunctions, you can utilize a multimeter to measure its resistance. Compare the obtained resistance value with the specifications provided by the manufacturer. If the resistance falls outside the acceptable range, it indicates a faulty sensor, and you should consider replacing the oxygen sensor.

4.Verify ECM functionality: In some cases, the problem may lie with the engine control module (ECM). It is advisable to have the ECM diagnosed by a professional using specialized diagnostic equipment. If a faulty ECM is identified, it should be repaired or replaced.

5.Clear the code: After performing the necessary repairs, use an OBD-II scanner or code reader to clear the P0141 code from the ECM's memory. This will reset the Check Engine Light.

If you're uncertain about diagnosing or fixing the problem, it's advisable to seek professional help from a qualified mechanic. They possess the necessary expertise and tools to accurately diagnose and resolve the P0141 code, ensuring your vehicle performs optimally. Addressing the P0141 code promptly helps maintain fuel efficiency, reduce emissions, and extend the engine's lifespan.
