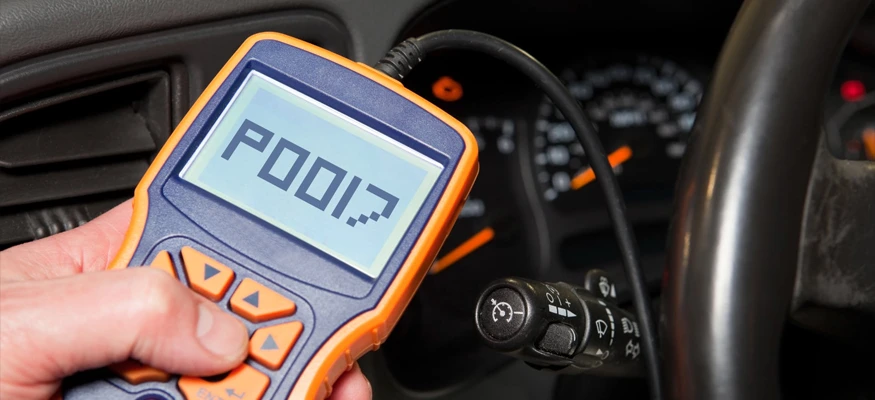

P0017 : Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor B)

The engine control system in modern vehicles relies on precise coordination between the crankshaft and camshaft to ensure proper ignition timing and valve operation. When this critical synchronization is disrupted, it can trigger a frustrating check engine light and the dreaded P0017 diagnostic trouble code. As an experienced automotive technician, I've dealt with my fair share of P0017 problems, and I know how important it is for drivers to understand what this code means and what steps to take to resolve it. In this blog post, we'll dive into the root causes of a P0017 code, explain why it's a serious issue that requires prompt attention, and outline the repair process to get your vehicle running smoothly again. By the end, you'll better grasp this common powertrain problem and be equipped to tackle it should it arise in your own car or truck.

The P0017 trouble code indicates an issue with the synchronization between the crankshaft and camshaft in a vehicle's engine. This code means the engine control module has detected a discrepancy in the signals from the crankshaft and camshaft position sensors. These two components need to be properly coordinated for the engine's valves to open and close in sync with the pistons. When the ECM senses this timing relationship is disrupted, it sets a P0017 code. This can lead to problems like misfiring, reduced engine performance, higher emissions, and potential long-term engine damage if not addressed. Common causes include faulty sensors, timing chain/belt issues, internal engine problems, and wiring faults. Properly diagnosing and fixing the root cause of the P0017 code is crucial to restore proper engine synchronization and avoid further issues.

Driving with a P0017 diagnostic trouble code is generally ill-advised, as it may lead to further engine harm if the underlying issue is not addressed. While it is possible to drive short distances to reach a repair facility, the safest course of action is to have the vehicle inspected and repaired by a qualified mechanic as soon as practicable to avoid further damage and more expensive repairs down the line. The P0017 code indicates a timing synchronization problem, which can cause the engine to operate erratically, misfire, or experience a loss of power, resulting in diminished engine performance, reduced fuel efficiency, and increased emissions. Continued driving may also exacerbate the problem and result in more extensive and costly repairs, as the timing issue can cause harm to the valves, pistons, or other internal engine components. In many regions, driving with an illuminated check engine light (caused by the P0017 code) may be considered unlawful, as it indicates the vehicle is not meeting emissions standards, and you may face fines or penalties if pulled over.

• Faulty Crankshaft Position Sensor: The crankshaft position sensor monitors the rotation of the crankshaft and sends this information to the engine control module (ECM). If the sensor is malfunctioning, it can cause a discrepancy between the crankshaft and camshaft signals.
• Faulty Camshaft Position Sensor: Similar to the crankshaft position sensor, the camshaft position sensor tracks the position of the camshaft and relays this data to the ECM. A faulty camshaft sensor can also trigger the P0017 code.
• Timing Chain/Belt Issues: Problems with the timing chain or timing belt, such as stretching, slipping, or breakage, can disrupt the synchronization between the crankshaft and camshaft, leading to a P0017 code.
• Timing System Mechanical Faults: Internal engine issues like worn timing gears, loose timing components, or other mechanical problems in the timing system can cause the crankshaft and camshaft to fall out of sync.
• Wiring or Connector Problems: Damaged, corroded, or loose wiring and connections in the sensor circuits can interrupt the signals being sent to the ECM, resulting in a P0017 code.
• ECM Programming or Calibration Issues: In some cases, the P0017 code may be caused by a problem with the ECM's programming or its calibration of the crankshaft and camshaft sensor signals.

If the crankshaft or camshaft position sensor is malfunctioning, it will need to be exchanged to restore proper timing. This involves removing the old sensor and installing a new one. Similarly, if the timing chain or belt is damaged, it will need to be replaced, which is a more intricate repair that requires carefully removing and reinstalling the timing components. Issues with the timing system may also necessitate repair or replacement of the affected parts, which can entail disassembling the engine's front end.

Wiring and connector repair may be necessary if there are any issues with the sensor circuits. Additionally, if the problem is related to the ECM's programming or calibration, the ECM may need to be reprogrammed or recalibrated, typically requiring specialized diagnostic equipment. The specific remedy needed will depend on the underlying cause of the P0017 code, which should be ascertained through a thorough diagnosis by a qualified technician.

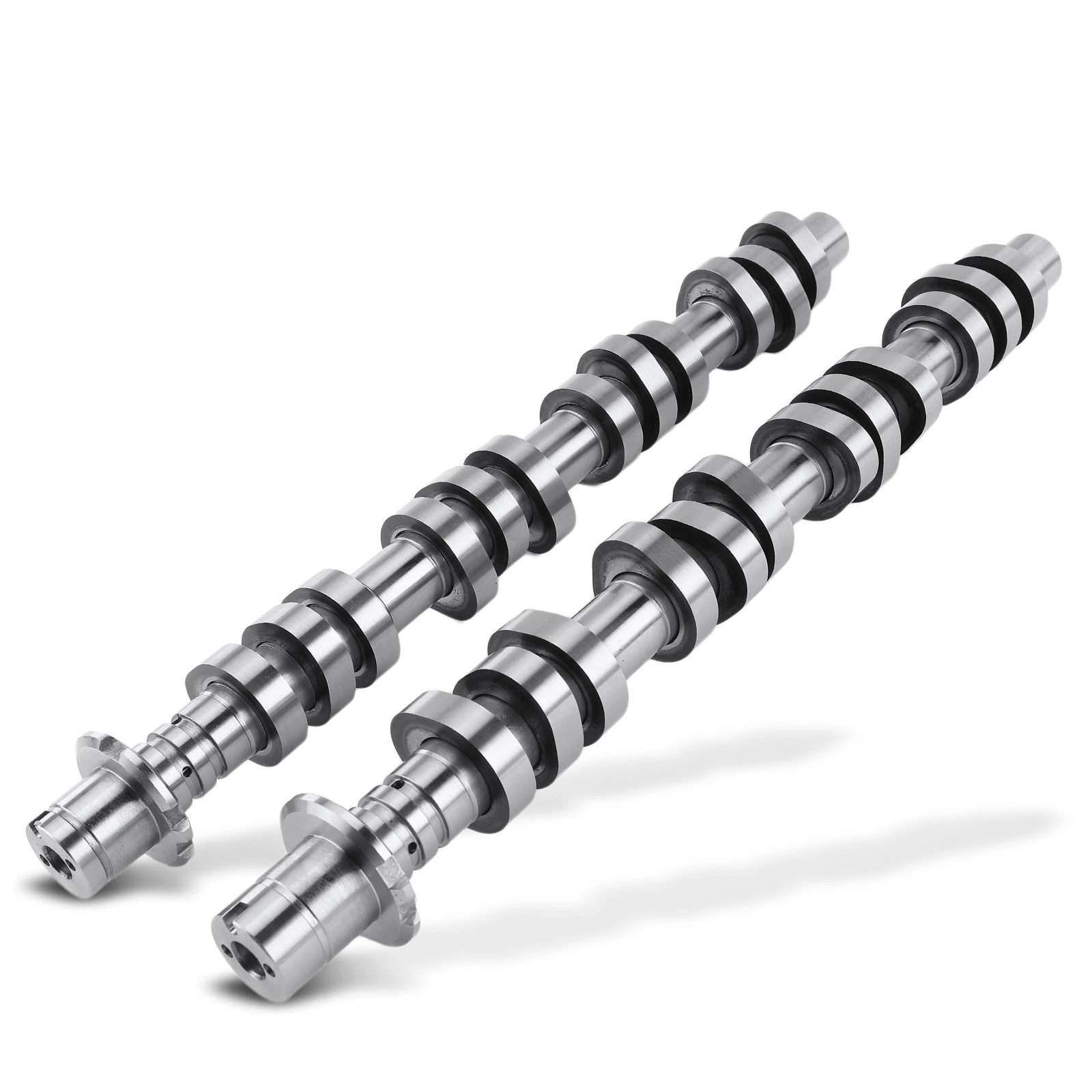

A-Premium's camshaft and crankshaft components are engineered to deliver excellent performance and reliability for your engine. Crafted with precision manufacturing and advanced materials, these critical timing system parts exhibit noteworthy durability and precision. Our camshafts are designed to provide accurate control over the engine's intake and exhaust valve timing, ensuring smooth, efficient combustion and optimized power delivery, while the crankshafts are equally robust, with superior fatigue resistance to withstand the rigors of high-speed operation. Integrating these components into your engine will contribute to enhanced overall reliability, and our focus on lightweight, low-noise design helps improve your vehicle's fuel economy and driving comfort. Whether you're maintaining a daily driver or building a high-performance powerplant, you can rely on A-Premium to provide timing system components of exceptional quality and engineering.
