How to Replace the ABS Sensor? Step by Step Guide

Maintaining control of your vehicle during a sudden panic stop relies heavily on a complex network of safety systems. At the heart of this network is the anti-lock braking system (ABS). ABS technology prevents wheel lockup during sudden stops, ensuring you can still steer out of harm's way.

Most modern vehicles feature four ABS sensors—typically installed at each wheel hub—and they have been required equipment on all new vehicles sold since 2004. An ABS sensor monitors the speed of each wheel to prevent locking during braking, sending real-time speed data to the central ABS control module.

When an ABS sensor gets damaged by road debris, extreme heat, or harsh winter salt, it fails to send this critical data stream. Dealing with a failing ABS sensor can compromise your vehicle's safety, leading to a malfunctioning system that increases the risk of skidding and longer stopping distances. Fortunately, replacing an ABS sensor is usually a straightforward task that you can complete right in your garage. This comprehensive, step-by-step repair guide will walk you through the entire process.

How Do I Know If My ABS Sensor Is Bad?

Before grabbing your tools, you must accurately diagnose the issue to determine which specific wheel speed sensor is at fault.

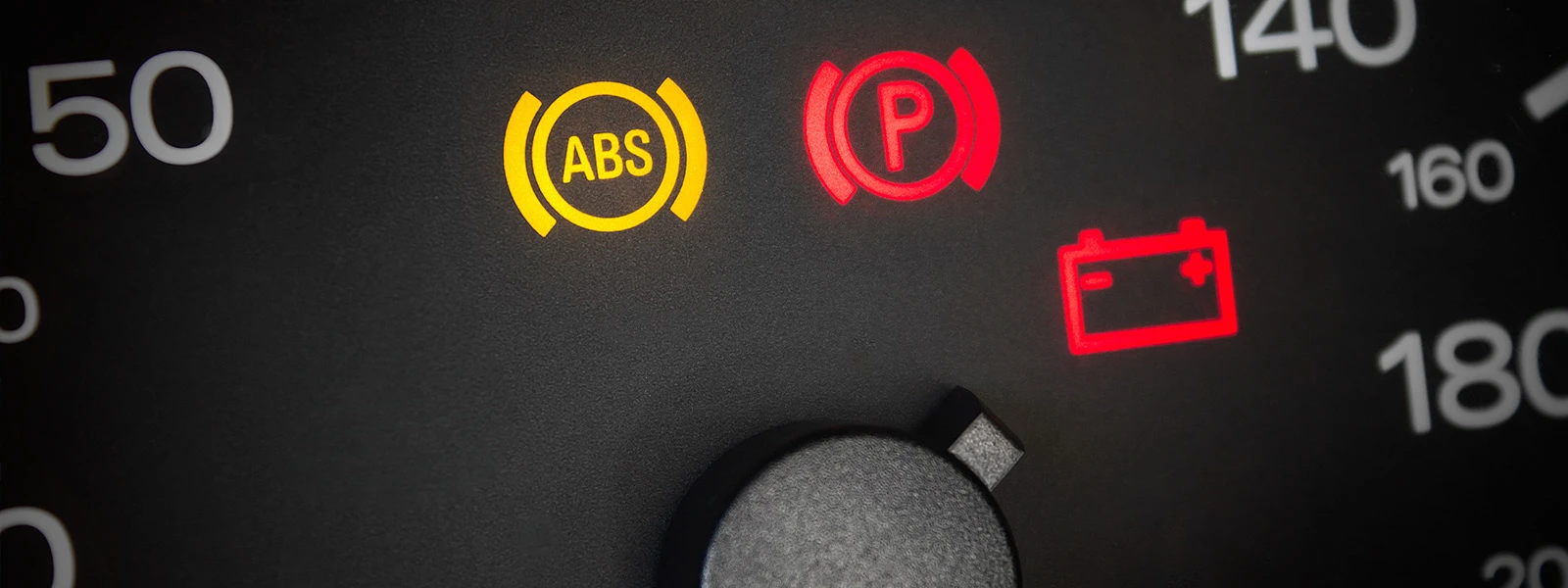

When a sensor begins to fail, the vehicle will exhibit distinct warning signs. The most immediate indicator occurs when the ABS warning light illuminates on your dashboard. Because these sensors enable traction control and electronic stability control systems to work effectively, a faulty ABS sensor will often trigger multiple warning lights simultaneously, including your traction control light.

To understand the full scope of these warning signs, we highly recommend reading our detailed guide on the Faulty ABS Wheel Speed Sensor: 6 Symptoms.

How to Pinpoint the Faulty Sensor

To identify the exact location of the problematic sensor (left front, right front, rear axle, etc.), technicians typically use an OBD-II scanner capable of reading ABS codes.

1. Scan for Fault Codes: Connect your OBD-II scanner to the vehicle's diagnostic port. Look for specific fault codes (such as C0035 for a left front wheel speed sensor circuit fault).

2. Read Live Data: If your scanner supports live stream data, you can watch the wheel speed readings while driving slowly. A bad ABS sensor will either show zero speed or wildly fluctuating numbers compared to the rest of the wheels.

3. Manual Electrical Test: Want to test the sensor manually? You can test ABS sensors with a digital multimeter (DMM) or an oscilloscope. Set your multimeter to measure resistance (Ohms) and connect the leads to the sensor connector terminals. A complete lack of continuity or an "open loop" reading indicates an internal break in the sensor wires.

What Tools Do I Need to Replace an ABS Speed Sensor?

Having the right equipment ready before you start will prevent unnecessary delays mid-repair. You do not need expensive specialty garage tools to complete this job successfully.

What Is the Step-by-Step Guide to Replacing an ABS Sensor?

Safety First: Never rely solely on a hydraulic floor jack to support your vehicle while working under the wheel well. Always lower the vehicle onto properly rated jack stands placed on designated factory frame rails, engage the parking brake, and chock the wheels remaining on the ground.

1.Lift the Vehicle and Remove the Wheel：10 Minutes

Loosen the wheel lug nuts slightly while the car is still on the ground. Raise the vehicle using your floor jack and secure it safely on your jack stands. Complete the removal of the lug nuts, pull the wheel off, and set it aside to gain full access to the steering knuckle or rear axle assembly.

2.Locate and Lubricate the Fasteners：5 Minutes

Locate the plastic ABS wheel sensor mounted directly behind the brake rotor onto the wheel hub. Because this area is constantly exposed to moisture, the small retaining bolt is often heavily corroded. Spray the bolt generously with penetrating oil and let it sit for a few minutes to prevent the bolt head from snapping off during removal.

3.Disconnect the Wire Harness Routing：5 Minutes

Trace the sensor wires up into the wheel well liner or engine bay. Carefully unclip the wire from its intermediate mounting brackets along the suspension strut or brake lines. Release the plastic locking tab on the primary electrical connector and pull the harness apart. Inspect the vehicle-side plug for any signs of corrosion.

4.Extract the Faulty Sensor：10 Minutes

Using a metric socket (usually 10mm), carefully remove the mounting bolt holding the sensor body to the hub. Gently wiggle the sensor back and forth while pulling outward. If it is seized tightly, use a flathead screwdriver to gently pry underneath the mounting tab. Be careful not to break the plastic housing inside the mounting hole.

5.Clean the Hub Mounting Surface：5 Minutes

Modern ABS sensors use Hall effect technology to detect wheel speed by tracking a toothed reluctor ring inside the hub. Any rust buildup will push the sensor out of alignment, disrupting its ability to sense rotation. Take a small wire brush or emery cloth and clean the flat metal mounting surface until it is smooth and free of debris.

6.Install the New ABS Speed Sensor：10 Minutes

Apply a thin layer of anti-seize to the body of your new ABS speed sensor (avoiding the tip). Push the sensor firmly into the clean mounting hole until it sits completely flush. Reinstall the retaining bolt and tighten it until snug (consult a repair manual for exact torque specs, typically around 7-10 ft-lbs). Do not overtighten, as you can easily crack the plastic mounting tab.

7.Route and Reconnect the Wires：5 Minutes

Route the new wiring harness along the exact same path as the original. Snap all plastic clips back into their brackets to ensure the wire holds its position away from moving suspension components or rotating brake parts. Reconnect the electrical plug until it clicks securely. Remount the wheel, hand-tighten the lug nuts, lower the vehicle, and perform a final torque on your wheels.

How Do I Reset the ABS Light After Repair?

Once you complete the mechanical installation, your dashboard ABS light might remain illuminated initially. This is completely normal because the central ABS control module retains the historical fault data in its memory banks.

To clear the code and restore full system functionality, you have two primary options:

• The Test Driving Cycle: The most natural method is to take the vehicle for a brief test drive. Drive the car on an open road above 15-20 mph for roughly 5 to 10 minutes. This allows the ABS controller to receive new, consistent real-time speed data from all four wheels. Once the module sees identical wheel speeds, it will satisfy its diagnostic parameters and clear the warning lights automatically.

• Manual OBD-II Clear: If the light fails to clear after a driving cycle, reconnect your diagnostic scan tool. Navigate to the anti-lock brake system menu, select "Clear Codes," and cycle the vehicle's ignition off and back on.

What Are Common Mistakes to Avoid When Installing an ABS Sensor?

Even experienced DIYers occasionally run into issues when replacing an ABS wheel sensor due to a few hidden pitfalls. Keep these crucial tips in mind:

• Forcing a Seized Sensor: If the old sensor body snaps off flush inside the steering knuckle, you will have to carefully drill it out or remove the entire wheel hub assembly to drive it out from the back. Take your time and use plenty of penetrating oil.

• Neglecting to Clean the Mounting Surface: Leaving a layer of rust scale underneath the mounting tab tilts the sensor away from the reluctor ring. Even a fraction of a millimeter of misalignment can prevent the sensor from reading wheel speed data, immediately triggering a new fault light.

• Improper Wire Routing: If you fail to secure the sensor wires back into their factory routing clips, the harness will rub against the spinning inner wheel rim or the sharp edges of the suspension components. Over time, friction will cut through the insulation, causing a short circuit.

Why You Shouldn't Skimp on Quality: Choose A-Premium ABS Sensors

When shopping for replacement auto parts, prioritizing quality over the absolute cheapest price is a matter of safety. A low-quality, generic sensor often suffers from poor internal coil insulation, leading to early failure when exposed to rain, snow, and extreme braking temperatures. Furthermore, imprecise manufacturing can cause incorrect air-gap clearances, resulting in inaccurate wheel speed data translation to your traction control system.

A-Premium ABS sensors are engineered to strict OE manufacturing standards, ensuring flawless data delivery and restoration of factory-level safety. Utilizing advanced Hall effect technology, A-Premium sensors deliver exceptional precision and heat resistance, keeping your anti-lock brakes, stability management, and transmission shift parameters operating in perfect harmony.

Frequently Asked Questions About ABS Sensors

Can I drive my car with a faulty ABS sensor?

Yes, your vehicle's standard mechanical brakes will still function normally. However, your anti-lock braking capability, traction control, and electronic stability systems will be completely deactivated. Your stopping distances will increase significantly in emergency situations, and the risk of skidding on wet or icy roads increases dramatically. It is highly recommended to replace the component as soon as possible.

Do I need to replace ABS sensors in pairs?

No, unlike brake pads or shock absorbers, ABS sensors operate entirely independently. You only need to replace the single faulty sensor that is throwing a diagnostic code.

Can a dirty ABS sensor be cleaned instead of replaced?

Occasionally, yes. If the tip of the sensor is covered in heavy metallic brake dust or thick mud, it can disrupt magnetic readings. You can remove the sensor, gently wipe down the tip with a clean rag, clean out any dirt built up around the tone ring, and reinstall it. However, if the internal electrical coils or wires are damaged, cleaning will not solve the issue, and a full replacement is required.
