Can You Inspect a CV Boot for Cracks and Grease Leaks Without Disassembling Anything?

For many American car and truck owners, the first sign of a transmission or drivetrain issue isn't a loud noise—it’s a mysterious spray of thick, dark grease on the inside of the front wheels. If you’ve heard a faint clicking sound during a sharp turn or want to stay ahead of your vehicle maintenance, you’re likely wondering: Can I actually inspect my CV boot without taking the whole axle apart?

The short answer is yes. A visual inspection of the boot is the primary way to diagnose a failure before it destroys the CV joints and requires a costly CV axle replacement.

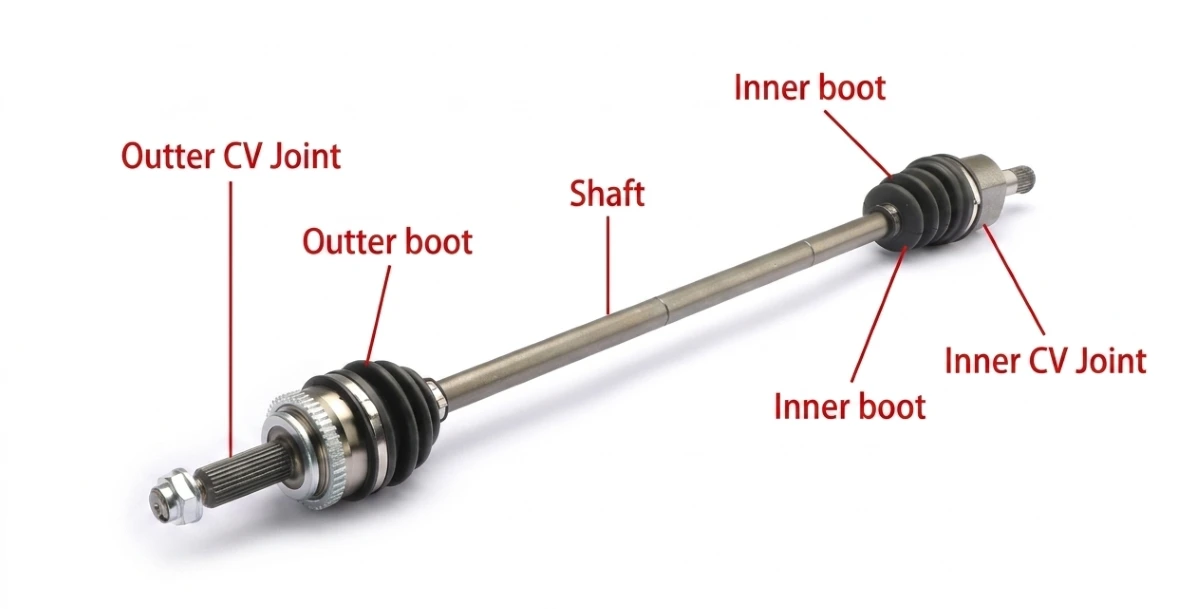

To ensure a safer driving experience, it is vital to understand that these are three distinct parts with different roles:

1. CV Joint (The Core): The constant velocity joint is the internal mechanical assembly designed to transfer power from the transmission to the wheels. It contains precision bearings that allow for smooth rotation during a turn.

2. CV Boot (The Protector): This is the heavy-duty rubber or thermoplastic boot that encases the joint. It has two critical jobs:

   • Keeping Grease In: It holds the high-temperature molybdenum grease that lubricates the bearings.

   • Keeping Debris Out: It prevents road salt, dirt, water, and debris from entering the joint.

3. CV Axle (The Assembly): Also known as a half-shaft, the CV axle is the complete unit consisting of the shaft, two CV joints (inner and outer), and two CV boots. When the joint fails, the entire axle is typically replaced.

In the U.S., where driving conditions vary from salted winter highways to dusty rural paths, the CV boot is under constant stress. Once the rubber develops a tear, the internal joint is on borrowed time.

You don't need a lift or specialized applications to check the condition of your axle. Follow these steps for a professional-grade inspection in your driveway.

1. The "Full Lock" Visual Check

You don't even need to jack up the car for the first step:

• Park on a level surface and engage the parking brake.

• Turn the steering wheel all the way to the left lock.

• Step out and look behind the front left tire using a flashlight to see the CV boot.

• Repeat the process for the right side to check the condition of the other axle.

2. Look for the "Grease Line"

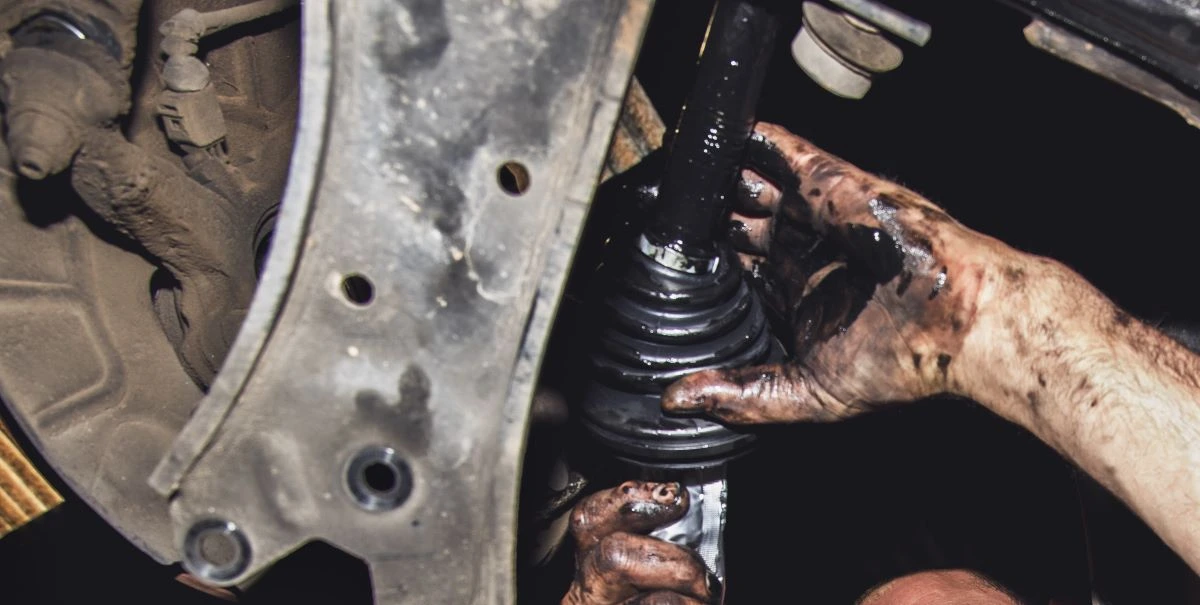

When a CV boot develops a tear, centrifugal force flings grease out as the axle spins. Look for:

• Splatter Patterns: Dark, thick grease sprayed in a line across the wheels, brake calipers, or suspension components.

• Accumulated Grime: If the tear is old, the grease will be covered in dirt, looking like thick, black "gunk" around the boot bellows.

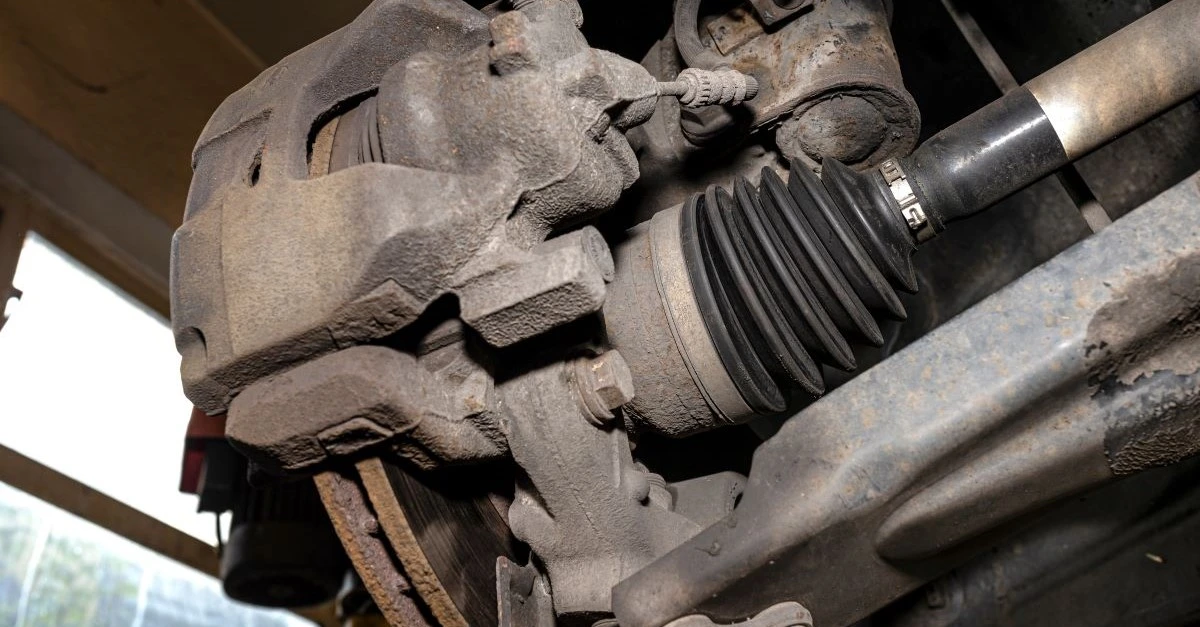

3. Inspect the Bellows

• Look for "dry rotting" or small surface cracks in the valleys of the rubber folds.

• Check the clamps at both ends of the joint to ensure no water has seeped in.

If you find a leaking boot, you must decide if you can save the joint or if a full replacement is necessary.

Option A: Replacing Only the CV Boot

The boot should be replaced only if:

• The tear is fresh: You caught the damage immediately and the grease inside is still clean.

• No noise: The CV joint is silent during a turn and at high speeds.

• Note: While the boot kit is cheaper, the labor is intensive because the axle must be removed and the joint cleaned of all dirt.

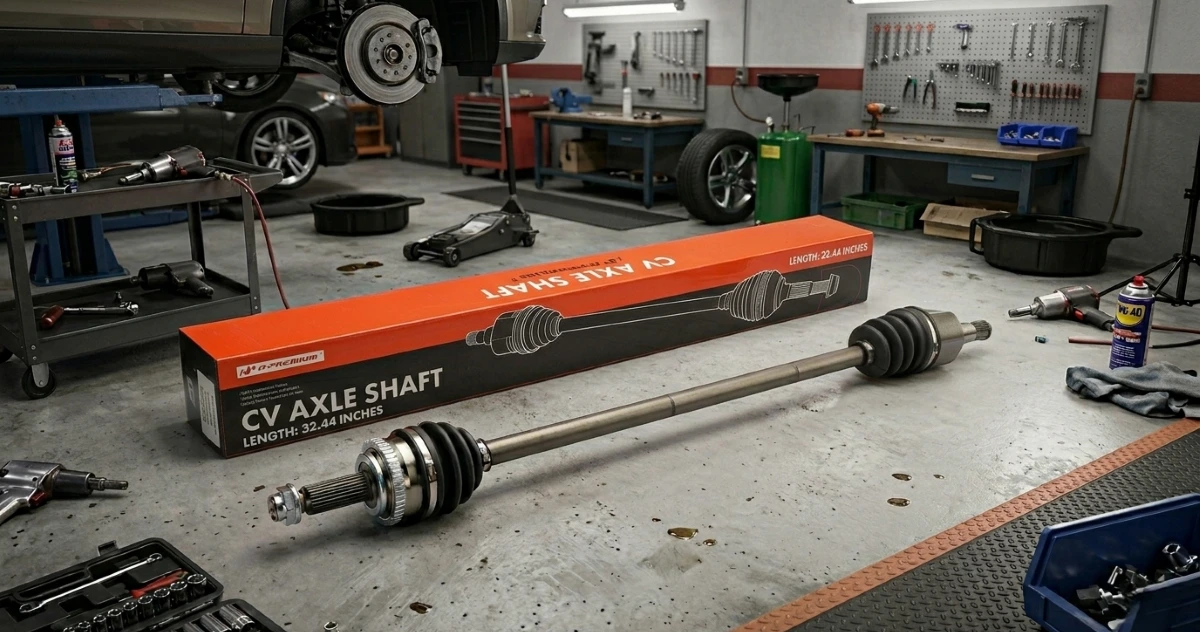

Option B: Full CV Axle Replacement

For most independent repair shops in the U.S., a full CV axle replacement is the leading recommendation. The entire axle should be replaced if:

• The "Click of Death": A rhythmic clicking when you turn means the bearings inside the joint are already pitted or worn.

• Contamination: Dirt, sand, or water has entered the boot, causing internal wear.

• Vibration: You feel a shudder during acceleration, indicating internal joint damage.

• Labor Costs: Often, the labor cost to "re-boot" an old joint exceeds the price of a brand-new CV axle assembly.

Inspecting your CV boots twice a year is one of the most effective ways to avoid a total CV axle failure.

The Bottom Line: Keep a flashlight in your car. A five-minute look at your axle condition today could be the difference between a simple boot service and a full-scale drivetrain replacement.

Is your vehicle showing any specific symptoms like clicking noises, or did you spot a "grease line" during your last tire rotation?
