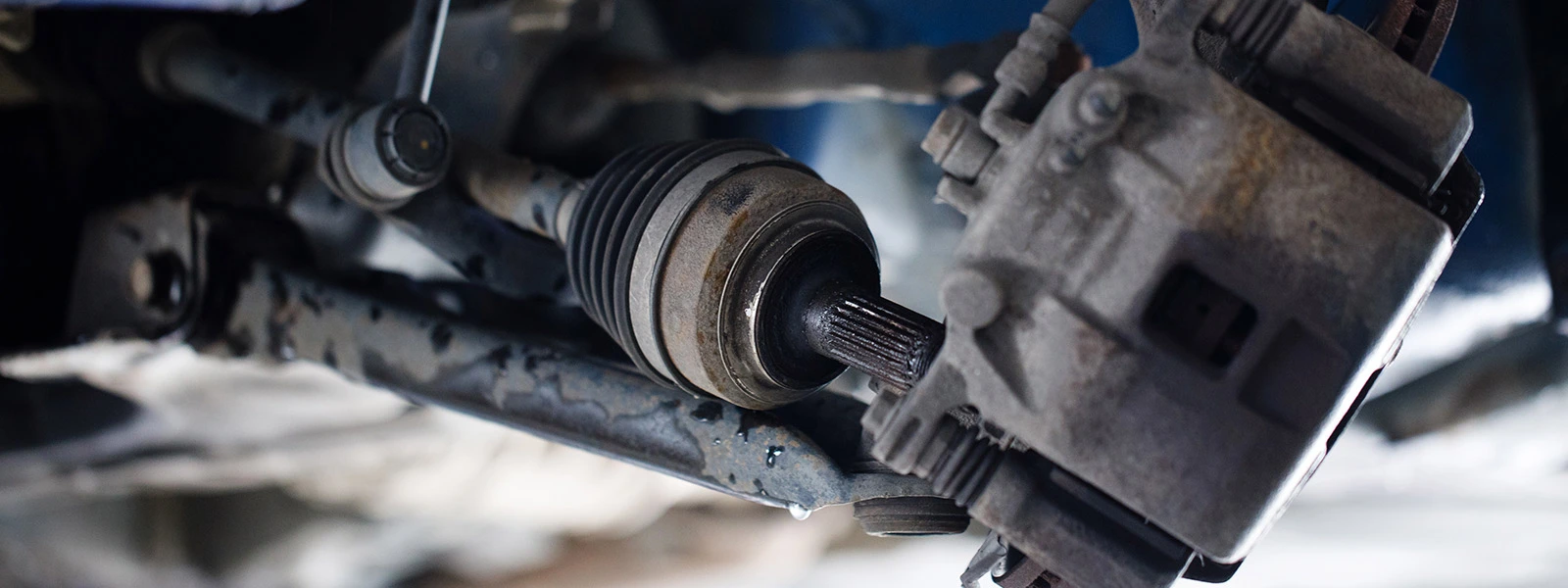

CV Axle Shaft Replacement

CV axle shafts typically last a long time, but they can wear out or become damaged over time. If you. It's a good idea to have your vehicle inspected by a qualified mechanic when you detect any bad CV shaft symptoms in your vehicle. An expertise will be able to determine if your CV axle shafts need to be replaced or if there is another issue causing the problem.

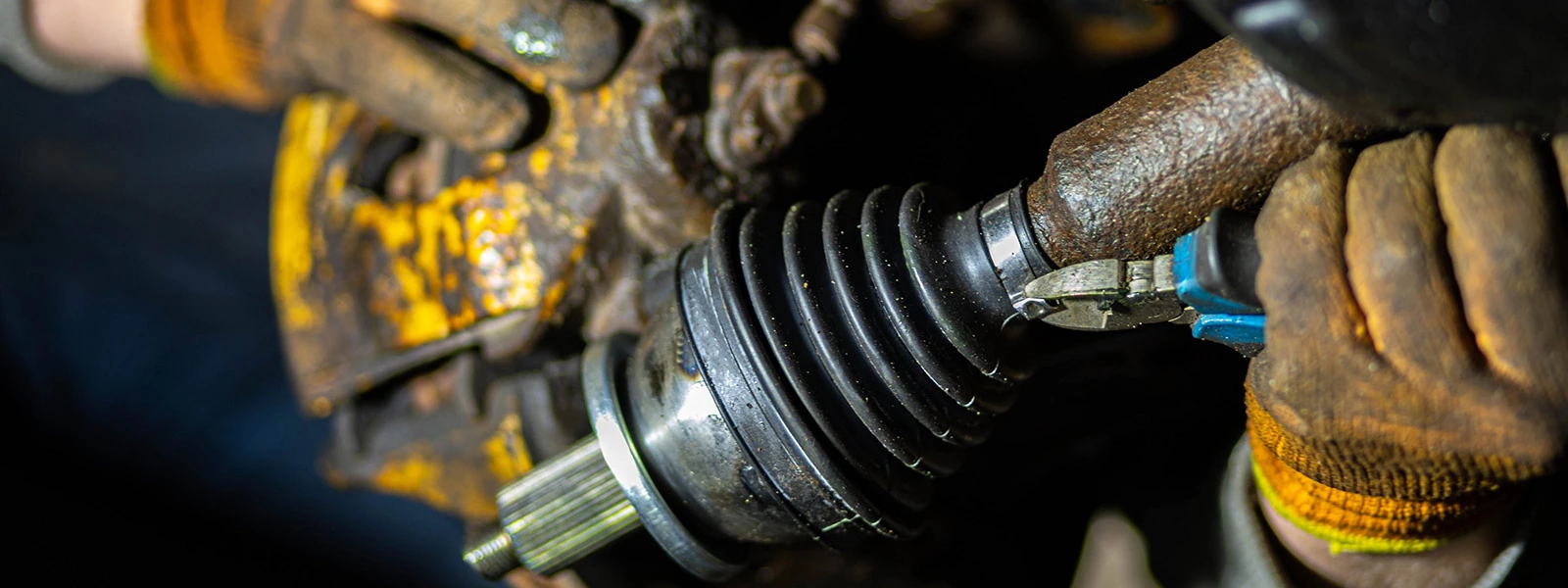

1. Gather the necessary tools and parts. You will need a new replacement CV axle shaft, a jack, jack stands, a socket set, a torque wrench, a pry bar, a hammer, a grease gun, and a new cotter pin.
2. Lift the vehicle off the ground using the jack and secure it with jack stands. Make sure the vehicle is stable and secure before crawling underneath it.
3. Remove the wheel on the side where the CV axle shaft is broken.
4. Remove the nut that secures the CV axle shaft to the wheel hub using a socket wrench.
5. Use a pry bar or a hammer to loosen the CV axle shaft from the wheel hub. Be careful not to damage the threads or the splines on the axle shaft.
6. Remove the lower ball joint from the steering knuckle. This may require removing a cotter pin and a castle nut.
7. Remove the CV axle shaft from the vehicle by pulling it out of the transmission.
8. Install the new CV axle shaft by sliding it into the transmission and reattaching it to the wheel hub.
9. Reinstall the lower ball joint and secure it with a new castle nut and cotter pin.
10. Tighten the nut on the wheel hub to the manufacturer's specifications using a torque wrench.
11. Reinstall the wheel and lower the vehicle to the ground.
12. Test drive the vehicle to make sure everything is working properly.

If you have never replaced a CV axle shaft before, it may be best to seek professional help to ensure that the job is done correctly. And wen you are not able to gather the necessary tools or equipment to replace the CV axle shaft, it may be more cost-effective to have a mechanic do the job. When encountering issues during the replacement process, such as stripped bolts or damaged components, you are also recommended to ask an expertise for help. Last but not least,  If your vehicle is still under warranty, it may be best to have a professional mechanic perform the CV axle shaft replacement to ensure that the warranty is not voided.

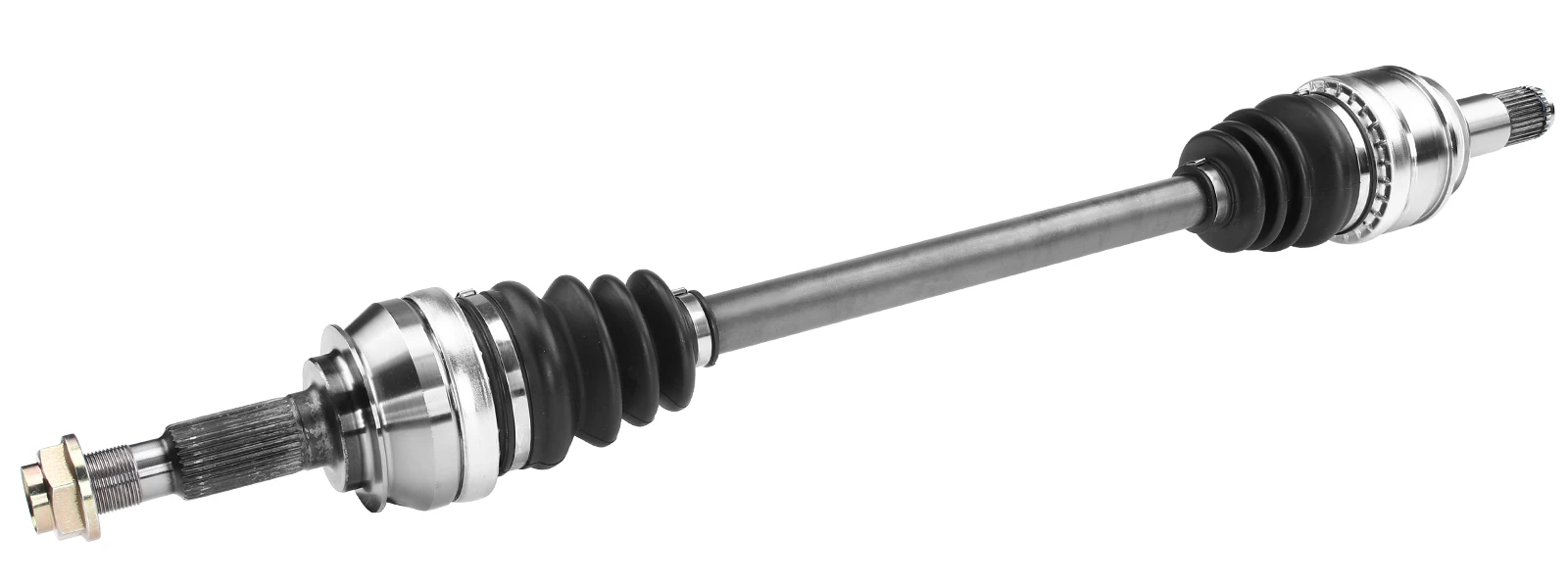

Replacement axle shafts can be bought for between $60-150.00 each. But it can also vary from different makes and models. The expense should also consider the labor cost and it generally takes 1.5 to 3 hours to finish the job. So the labor cost will be around $150-350.00.

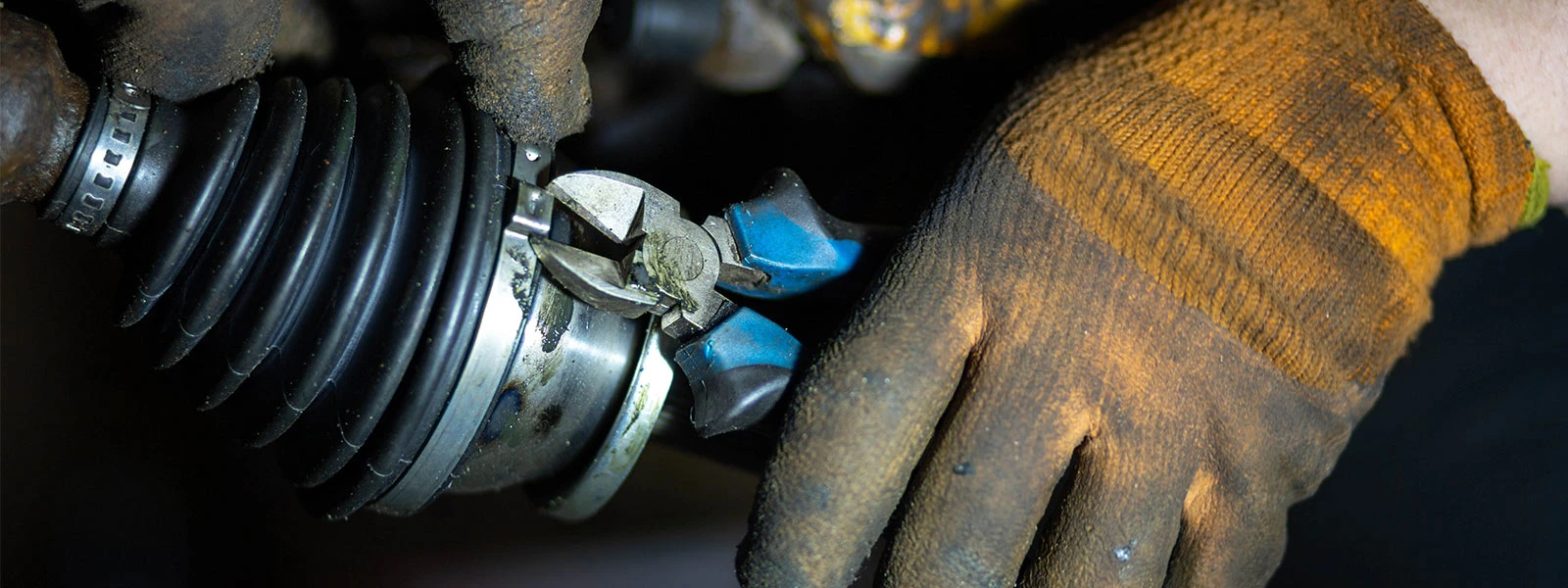

Avoiding the common mistakes to ensure a successful replacement and long-lasting CV axle use.

• 1#: It is important to use a new CV axle shaft and related parts when replacing the old one. Reusing old parts can lead to premature failure and potentially cause further damage to the vehicle.
• 2#:When installing the new CV axle shaft, make sure it is properly aligned with the transmission and wheel hub. Failure to do so can cause damage to the transmission or wheel hub.
• 3#: CV axle shaftis Over tighten It is crucial to torque the CV axle shaft to the manufacturer's specifications, but over-tightening it can cause damage to the transmission or wheel hub.
• 4#: Failing to properly bleed the brakes. If the brake lines were disconnected during the replacement process, it is important to properly bleed the brakes afterward to ensure proper function.

• 5#: Not addressing the root cause of the CV axle shaft failure. If the CV axle shaft failed due to a larger issue such as a damaged wheel bearing or suspension component, it is important to address that issue to prevent future failure of the new CV axle shaft.
