P0016 Code: Crankshaft Position–Camshaft Position Correlation (Bank 1)

This blog post will provide a thorough examination of the P0016 diagnostic trouble code. We'll unpack the meaning behind this code and shed light on the common underlying causes. Moreover, we'll guide you through the necessary steps to properly diagnose and address this problem. Grasping the intricacies of the P0016 code is crucial for all vehicle owners and technicians alike, as it directly impacts the health and lifespan of the engine. Whether you're a DIY enthusiast or a seasoned professional, understanding this code's implications is vital. So, let us begin our exploration of the P0016 trouble code.

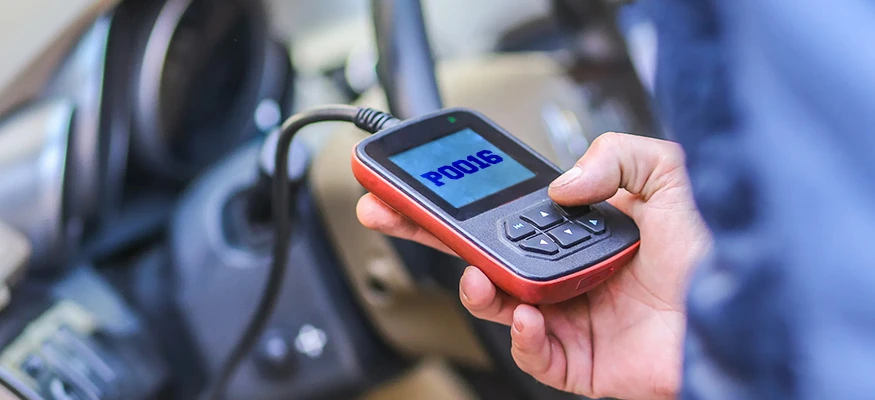

The P0016 diagnostic trouble code indicates a synchronization issue between the camshaft position sensor and the crankshaft position sensor in the engine. These two sensors work together to monitor the timing of the engine's valve openings and piston positions. When the engine control module (ECM) detects a discrepancy between the signals from these sensors, it sets the P0016 code, signaling a "Crankshaft Position - Camshaft Position Correlation" problem.

• Faulty camshaft position sensor: This sensor monitors the position and timing of the camshaft and sends a signal to the ECM. A malfunctioning camshaft position sensor can cause the P0016 code.
• Faulty crankshaft position sensor: This sensor tracks the position and rotation of the crankshaft and communicates this data to the ECM. Issues with the crankshaft position sensor can also lead to the P0016 trouble code.
• Timing chain/belt issues: Problems with the timing chain or timing belt, such as wear, damage, or improper installation, can cause the camshaft and crankshaft to fall out of sync, triggering the P0016 code.
• Timing chain problems: Issues with the timing gears, tensioners, or sprockets that control the timing of the camshaft and crankshaft can disrupt their synchronization.
• Low engine oil level: Insufficient engine oil can lead to increased wear on the timing components, potentially causing the P0016 code.
• Internal engine mechanical faults: In some cases, the P0016 code may be caused by problems within the engine itself, such as worn or damaged engine components.

The principal indication of a P0016 code is an illuminated malfunction indicator on the vehicle's dashboard. Other common issues that may arise include rough idling, engine misfiring, diminished fuel efficiency, difficulty initiating the engine, a lack of power and performance, and elevated emissions - all resulting from the timing synchronization discrepancy between the camshaft and crankshaft position sensors. The gravity and combination of these symptoms can fluctuate based on the root cause and extent of the timing-related fault, but addressing the P0016 code expeditiously is imperative to avert further damage to the engine and maintain proper vehicle operation.

If the issue is related to a faulty sensor, a replacement will be required. A malfunctioning camshaft position sensor, which monitors the position and timing of the camshaft, or a problematic crankshaft position sensor, which tracks the position and rotation of the crankshaft, will both need to be replaced with new, properly functioning components. This will restore the necessary communication between these sensors and the engine control module (ECM).

Alternatively, the root cause may lie in issues with the timing chain, timing belt, or timing gears. Wear, damage, or improper installation of these components can disrupt the synchronization between the camshaft and crankshaft, triggering the P0016 code. Replacing or properly adjusting the timing chain or belt, as well as inspecting and repairing any issues with the timing gears, tensioners, or sprockets, may be necessary to resolve the underlying timing-related problem. Ensuring the engine oil level is maintained at the proper specification can also help address increased wear on these critical components. Proper diagnosis and addressing the root cause are essential for restoring the correct synchronization and resolving the P0016 trouble code.
